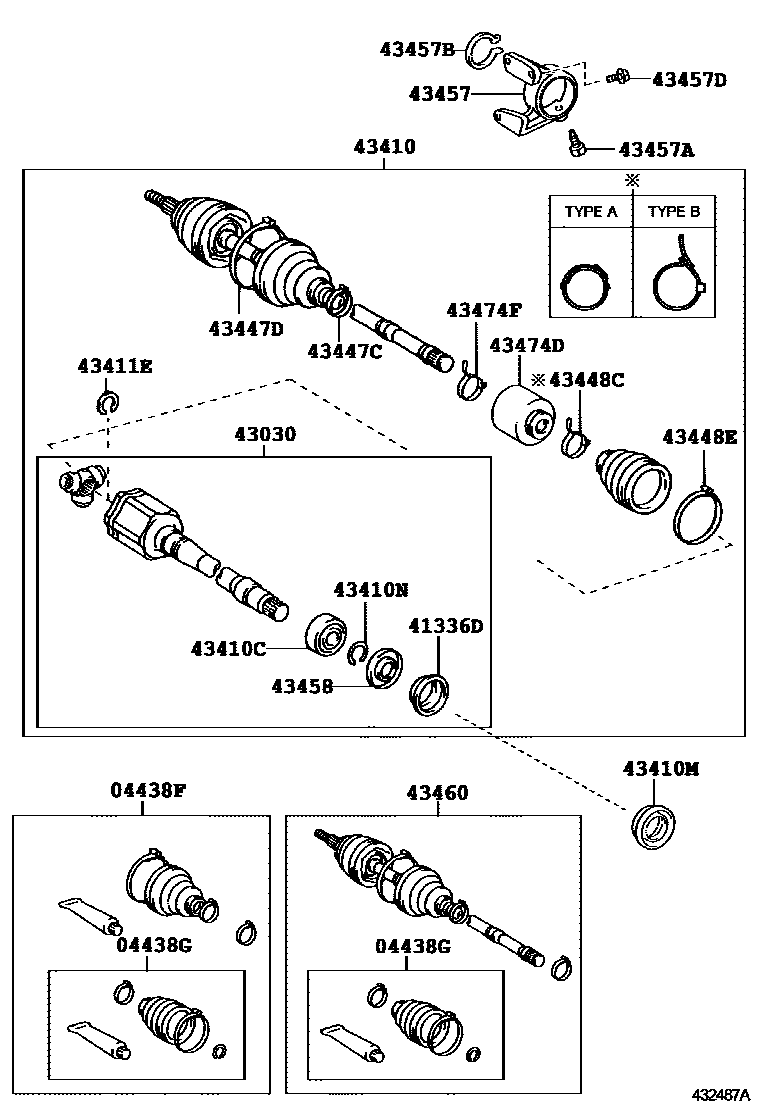

FRONT DRIVE SHAFT

0001 1��� 0002 1��� 0003 1���

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-33040iACV45200601-200901

main04427-44040iACV4#200901-201108

main04428-42070iACV40200601-200901

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-33050iACV45200601-200901

main04438-42180iACV40200601-200901

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iACV40200601-200901

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-06190iACV40200608-200901

main43030-28021iACV45200901-201108

main43030-33051iACV40200601-200901

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06670iACV40200608-200901

main43410-33290iACV40200608-200901

main43410-33300iACV45200901-201108

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36006iACV45200601-200901

main90363-41003iACV40200901-201108

main90363-C0001iACV40200608-200901

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40031iACV40200601-200901

main90316-34001iACV45200601-200901

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iACV45200601-200901

main90520-38015iACV40200901-201108

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iACV4#200901-201108

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iACV4#200601-200901

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iACV4#200601-200901

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010iACV45200601-200901

main90949-01559iACV4#200601-200901

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iACV45200601-200901

43457BRACKET, DRIVE SHAFT BEARING

main43457-33020iACV40200901-201108

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iACV40200901-201108

main90901-19060iACV45200901-201108

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iACV45200901-201108

main90521-78002iACV40200601-200901

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iACV40200601-200901

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010iACV40200601-200901

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39265iACV45200601-200901

main43470-39545iACV40200601-200608

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06140iACV40200608-200901

main43474-48020iACV4#200901-201108

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06420iACV40200608-200901

main42345-14010iACV4#200901-201108

21 parts on this diagram · 3 diagrams in section
