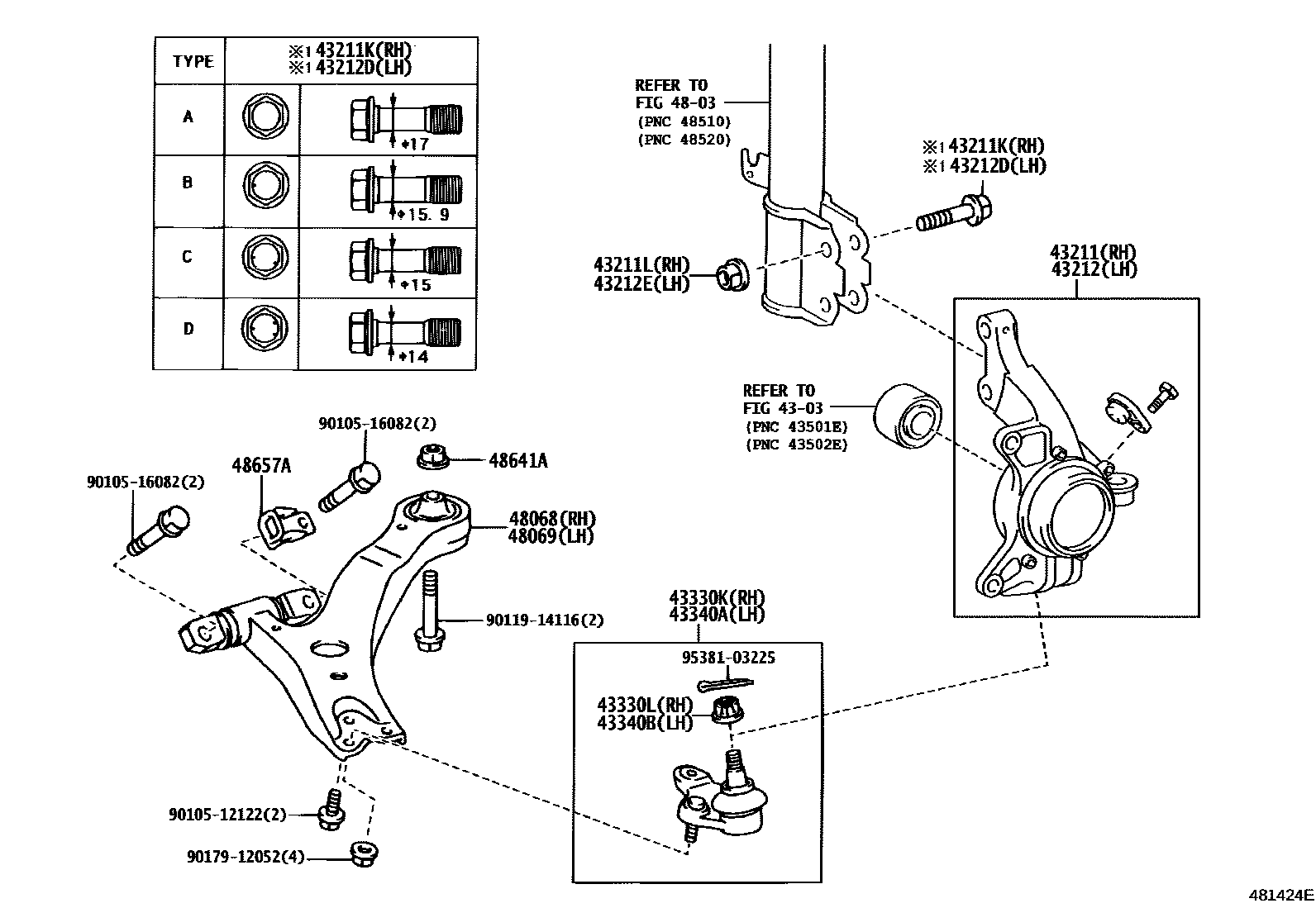

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

4303FRONT AXLE HUB

→ Go to FIG 43-03

43211KNUCKLE, STEERING, RH

main43211-28120iACV35200109-200307

main43211-39045iACV30200109-200307

main43211-58010iACV30200307-200406

main43211-58020iACV35200307-200406

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008×2iACV3#200109-200406

main90105-17009iACV3#200406

main90105-17010iACV3#200109-200406

main90105-17011iACV3#200109-200406

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001×2iACV3#200109-200406

43212KNUCKLE, STEERING, LH

main43212-28100iACV35200109-200307

main43212-39035iACV30200109-200307

main43212-58010iACV30200307-200406

main43212-58020iACV35200307-200406

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008×2iACV3#200109-200406

main90105-17009iACV3#200406

main90105-17010iACV3#200109-200406

main90105-17011iACV3#200109-200406

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001×2iACV30; ACV35200406

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29405iACV3#200109-200406

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iACV3#200109-200406

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29175iACV3#200109-200406

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iACV3#200109-200406

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-33050iACV3#200109-200406

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-33050iACV3#200406

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068×2iACV3#200109-200406

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010×2iACV3#200109-200406

9010512122

main90105-12122

9010516082

main90105-16082

9011914116

main90119-14116

9017912052

main90179-12052

9538103225

main95381-03225

21 parts on this diagram · 2 diagrams in section
