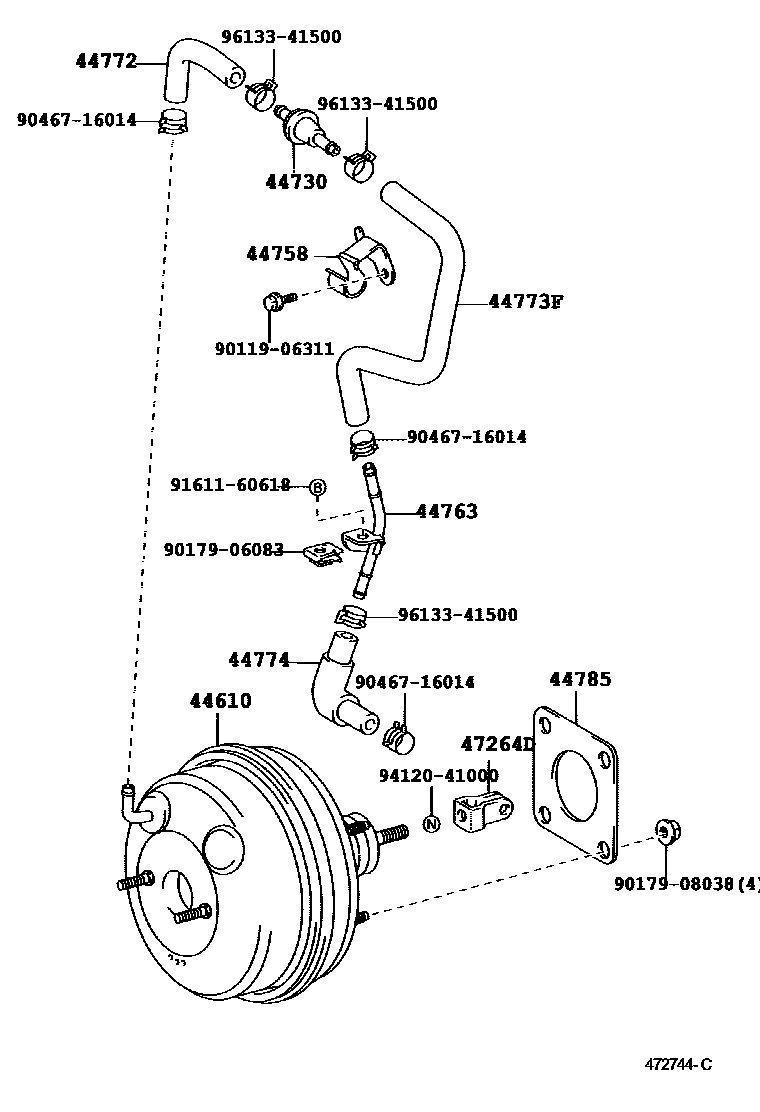

Toyota 284170 — BRAKE BOOSTER & VACUUM TUBE
44610BOOSTER ASSY, BRAKE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44758BRACKET, VACUUM CHECK VALVE
44763TUBE, BOOSTER VACUUM
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44773FHOSE, UNION TO CHECK VALVE
44774HOSE, UNION TO CONNECTOR TUBE
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
9011906311
9017906083
9017908038
9046716014
9161160618
9412041000
9613341500
16 parts on this diagram · 1 diagram in section
BRAKE BOOSTER & VACUUM TUBE for Toyota 284170
This section contains 16 genuine Toyota parts for the BRAKE BOOSTER & VACUUM TUBE system of the Toyota 284170. Key components include: BOOSTER ASSY, BRAKE, VALVE ASSY, VACUUM CHECK(FOR BRAKE), BRACKET, VACUUM CHECK VALVE, TUBE, BOOSTER VACUUM, HOSE, CHECK VALVE TO CONNECTOR TUBE.
