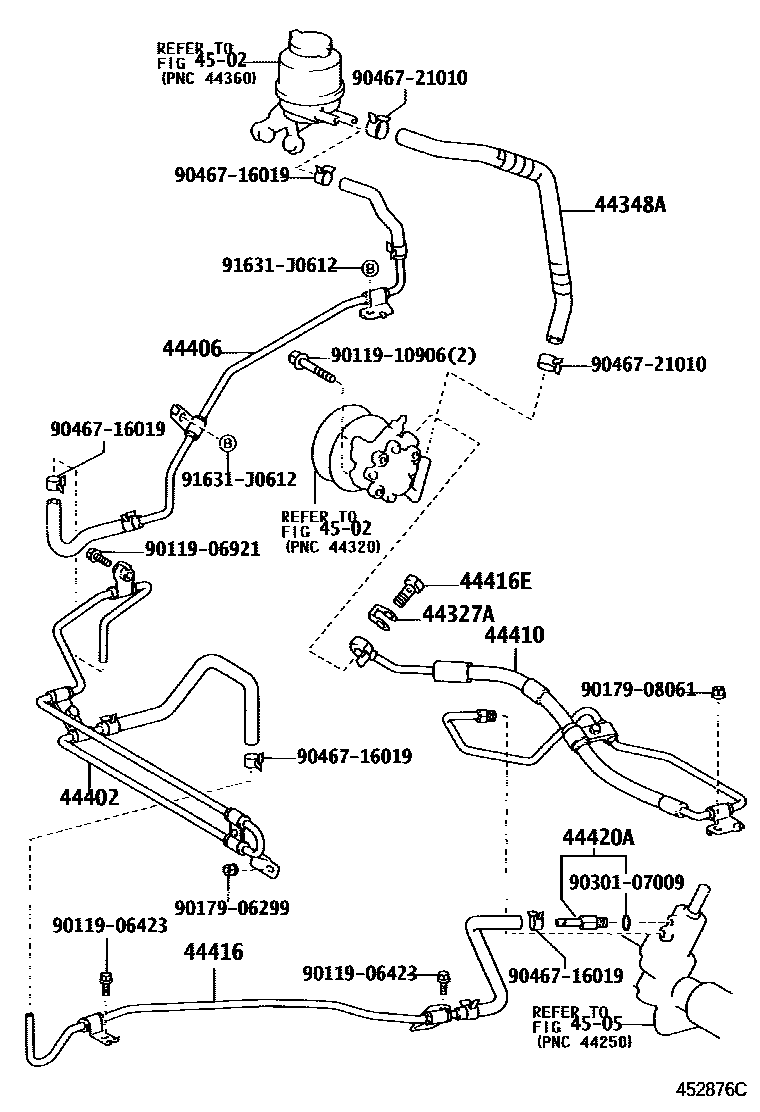

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACV3#200406

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33190iACV3#200109-200406

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-33090iACV3#200109-200406

44406TUBE SUB-ASSY, RETURN

main44406-33090iACV3#200109-200406

44410TUBE ASSY, PRESSURE FEED

main44410-33200iACV30200406

main44410-33220iACV35200109-200406

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33140iACV30200406

main44416-33150iACV35200406

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACV3#200109-200406

44420ATUBE ASSY, RETURN

main44420-17010iACV3#200109-200406

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906423

main90119-06423

9011906921

main90119-06921

9011910906

main90119-10906

9017906299

main90179-06299

9017908061

main90179-08061

9030107009

main90301-07009

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

19 parts on this diagram · 1 diagram in section
