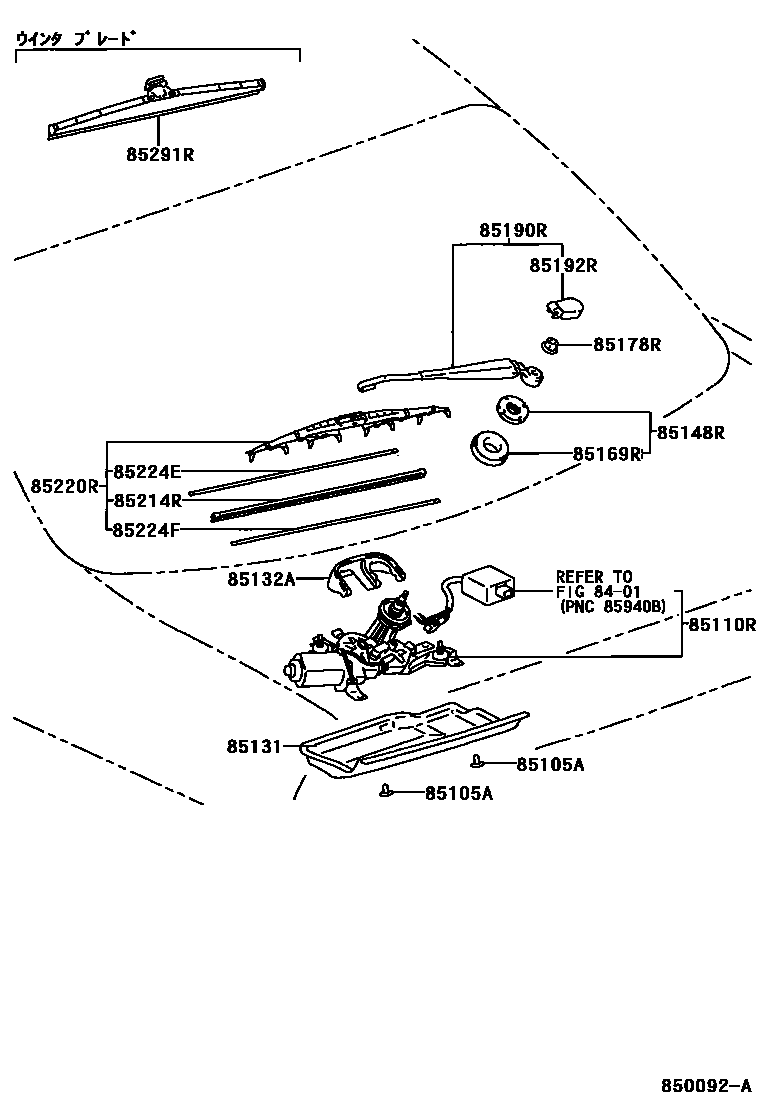

REAR WIPER

0001 1 0002 1

8401

85105ACLIP, REAR WIPER PROTECTOR

main90467-08186iMCV21,SXV2#..SED199612

85110RMOTOR ASSY, REAR WIPER

main85130-33020iMCV21,SXV2#..SED199612

main85130-33040iMCV2#,SXV2#..WG199612

85131COVER, REAR WIPER MOTOR

main85131-33030iMCV21,SXV2#..SED199612

85132ACOVER, REAR WIPER SHAFT

main85132-20640-B1iMCV21,SXV2#..SED199612-199908

BLUISH GRAY,TRIM1#

sub85132-20640

main85132-20640-G0iMCV21,SXV2#..SED199612

DK.SAGE,TRIM6#

sub85132-20640

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main85133-12770iMCV2#,SXV2#199612

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90210-28002iMCV2#,SXV2#199612

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMCV2#,SXV2#199612

85190RARM ASSY, REAR WIPER

main85241-33020iMCV21,SXV2#..SED199612

main85241-33040iMCV2#,SXV2#..WG199612

85192RCOVER, REAR WIPER ARM

main85192-13060iMCV2#,SXV2#199612

85214RRUBBER, REAR WIPER

main85214-33140iMCV21,SXV2#..SED199612

sub85214-22420

main85214-60050iMCV2#,SXV2#..WG199612

85220RBLADE ASSY, REAR WIPER

main85242-33030iMCV21,SXV2#..SED199612

sub85242-33031

main85242-33040iMCV2#,SXV2#..WG199612

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-33100iMCV21,SXV2#..SED199706

main85224-60080iMCV2#,SXV2#..WG199612

main85224-60100iMCV21,SXV20..SED199612-199706

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-33100iMCV21,SXV2#..SED199706

main85224-60080iMCV2#,SXV2#..WG199612

main85224-60100iMCV21,SXV20..SED199612-199706

85291RBLADE,REAR WIPER, WINTER

main85291-60030iMCV2#,SXV2#..WG199612

sub85291-28120

main85291-60060iMCV21,SXV2#..SED199612

sub85291-44080

15 parts on this diagram · 2 diagrams in section
