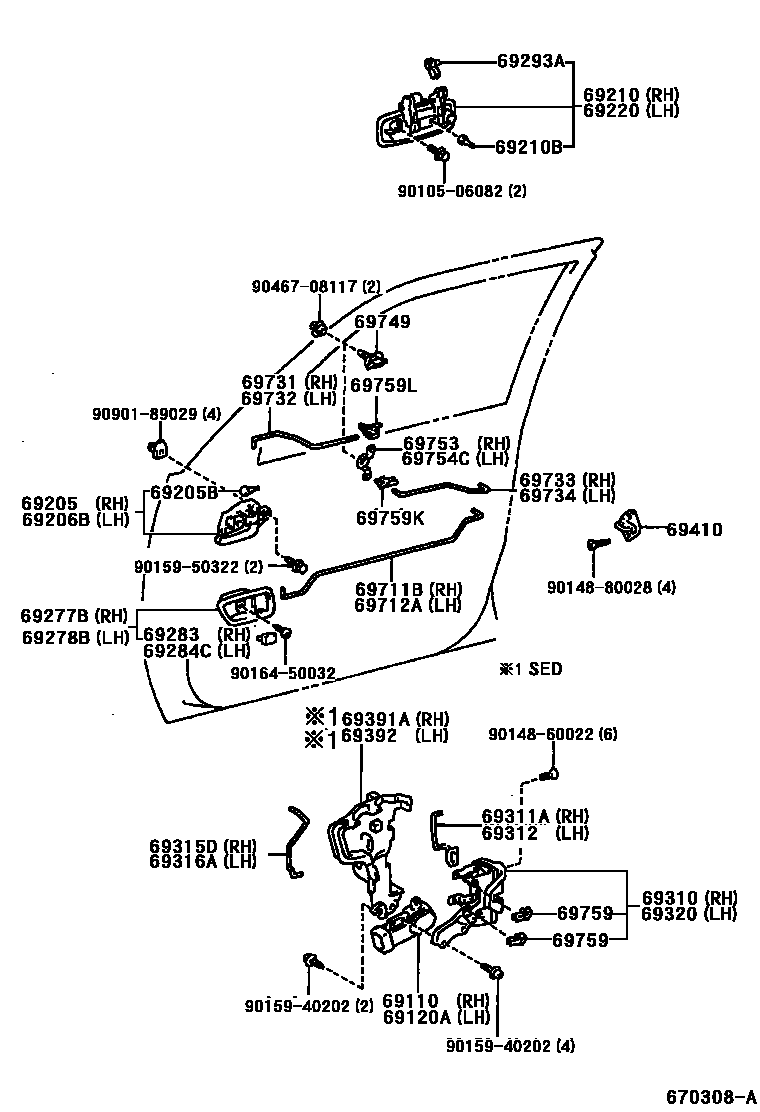

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
sub69205-22080
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
sub69210-33041
sub69210-33041
sub69210-33041
sub69210-33041
sub69210-33041
sub69210-33041
sub69210-33041
sub69210-33041
sub69210-33041
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
sub69220-33041
sub69220-33041
sub69220-33041
sub69220-33041
sub69220-33041
sub69220-33041
sub69220-33041
sub69220-33041
sub69220-33041
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM2#
SAGE,TRIM6#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLUE GRAY,TRIM1#
SAGE,TRIM6#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH
69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH
69320LOCK ASSY, FRONT DOOR, LH
69391ACOVER, FRONT DOOR LOCK, OUTER RH
69392COVER, FRONT DOOR LOCK, OUTER LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69733LINK, FRONT DOOR INSIDE LOCKING, RH
69734LINK, FRONT DOOR INSIDE LOCKING, LH
69749CLAMP, FRONT DOOR LOCK LINK
69753BELLCRANK, DOOR LOCK CONTROL, RH
69754CBELLCRANK, DOOR LOCK CONTROL, LH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
69759KSNAP, DOOR LOCK CONTROL LINK
69759LSNAP, DOOR LOCK CONTROL LINK
9010506082
main90105-06082
9014860022
main90148-60022
9014880028
main90148-80028
9015940202
main90159-40202
9015950322
main90159-50322
9016450032
main90164-50032
9046708117
main90467-08117
9090189029
main90901-89029
42 parts on this diagram · 1 diagram in section
