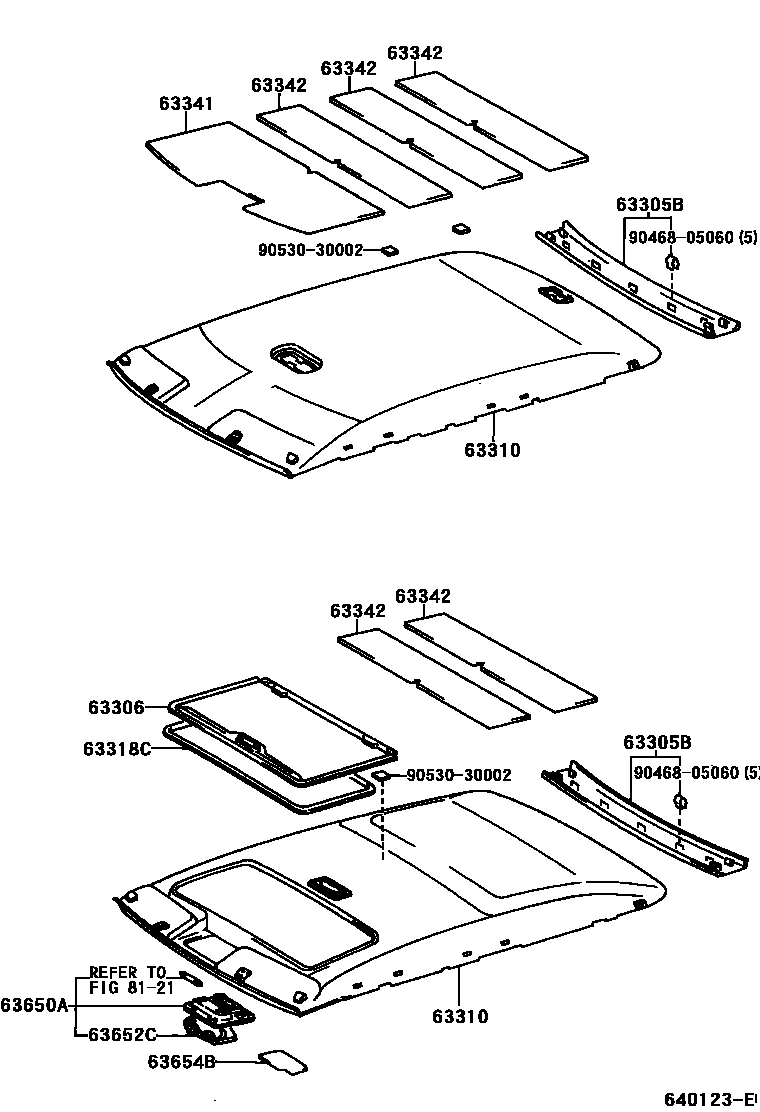

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-33010-B0iMCV2#,SXV2#..WG199908

LT.GRAY,TRIM2#

main63305-33010-B0iMCV2#,SXV2#..WG199612-199908

LT.GRAY,TRIM1#

main63305-33010-G0iMCV2#,SXV2#..WG199612

SAGE,TRIM6#

63306TRIM SUB-ASSY, SUNSHADE

main63306-33040-B0iMCV21,SXV2#..SED199612-199908

LIGHT GRAY,TRIM1#

main63306-33040-G0iMCV21,SXV2#..SED199612

SAGE,TRIM6#

main63306-33060-B0iMCV2#,SXV2#..WG199612-199908

LT. GRAY,TRIM1#

sub63306-53021

main63306-33060-B0iMCV2#,SXV2#..WG199908

LT. GRAY,TRIM2#

sub63306-53021

main63306-33060-G0iMCV2#,SXV2#..WG199612

SAGE,TRIM6#

sub63306-53021

63310HEADLINING ASSY, ROOF

main63310-33050-B0iMCV21,SXV2#..SED199612-199908

LIGHT GRAY,TRIM1#

sub63310-33050

main63310-33050-G0iMCV21,SXV2#..SED199612

SAGE,TRIM6#

sub63310-33050

main63310-33160-B0iMCV21,SXV2#..SED199612-199908

sub63310-33160

main63310-33160-G0iMCV21,SXV2#..SED199612

sub63310-33160

main63310-33230-B0iMCV2#,SXV2#..WG199612-199908

LT. GRAY,TRIM1#

sub63310-33230

main63310-33230-B0iMCV2#,SXV2#..WG199908

LT. GRAY,TRIM2#

sub63310-33230

main63310-33230-G0iMCV2#,SXV2#..WG199612

SAGE,TRIM6#

sub63310-33230

main63310-33240-B0iMCV2#,SXV2#..WG199908

sub63310-33240

main63310-33240-B0iMCV2#,SXV2#..WG199612-199908

sub63310-33240

main63310-33240-G0iMCV2#,SXV2#..WG199612

sub63310-33240

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-33010iMCV21,SXV20..SED199612-199702

main63318-33010-B1iMCV21,SXV20..WG199612-199702

sub63318-33010

main63318-33010-B2iMCV2#,SXV2#..WG199908

sub63318-33010

main63318-33010-B2iMCV2#,SXV2#199702-199908

sub63318-33010

main63318-33010-G1iMCV21,SXV20..WG199612-199702

sub63318-33010

main63318-33010-G2iMCV2#,SXV2#199702

sub63318-33010

63341PAD, ROOF SILENCER, NO.1

main63341-33010iMCV2#,SXV2#..WG199612

main63343-32070iMCV21,SXV2#..SED199612

63342PAD, ROOF SILENCER, NO.2

main63342-33040iMCV2#,SXV2#..WG199612

main63343-32070iMCV21,SXV2#..SED199612

63650ABOX ASSY, ROOF CONSOLE

main63660-0W010-B0iMCV2#,SXV2#199612-199803

LT.GRAY,TRIM1#

sub63660-0W011

main63660-0W010-G0iMCV2#,SXV2#199612-199803

SAGE,TRIM6#

sub63660-0W011

main63660-0W011-B0iMCV2#,SXV2#199803-199908

LT.GRAY,TRIM1#

sub63660-0W011

main63660-0W011-B0iMCV2#,SXV2#..WG199908

LT.GRAY,TRIM2#

sub63660-0W011

main63660-0W011-G0iMCV2#,SXV2#199803

SAGE,TRIM6#

sub63660-0W011

63652CCOVER, ROOF CONSOLE BOX

main63652-AA020-B0iMCV2#,SXV2#199612-199803

LT.GRAY,TRIM1#

sub63652-AA021

main63652-AA020-G0iMCV2#,SXV2#199612-199803

SAGE,TRIM6#

sub63652-AA021

main63652-AA021-B0iMCV2#,SXV2#199803-199908

LT.GRAY,TRIM1#

main63652-AA021-B0iMCV2#,SXV2#..WG199908

LT.GRAY,TRIM2#

main63652-AA021-G0iMCV2#,SXV2#199803

SAGE,TRIM6#

63654BCOVER, ROOF CONSOLE BOX, INNER

main63654-33010iMCV2#,SXV2#199612

sub63654-33011

8121

9046805060

main90468-05060

9053030002

main90530-30002

12 parts on this diagram · 2 diagrams in section
