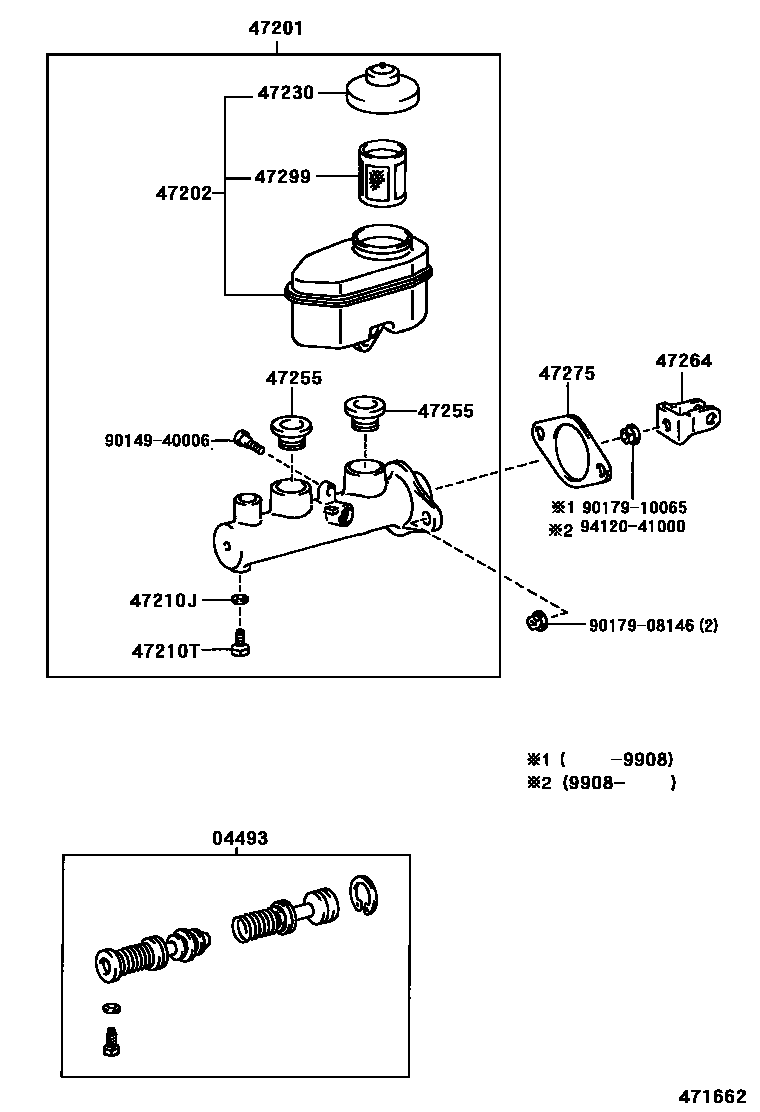

BRAKE MASTER CYLINDER

0001 1 0002 1��(������ ������)

04493CYLINDER KIT, BRAKE MASTER

main04493-33060iMCV2#,SXV2#199612

sub04493-33160

main04493-33070iMCV21199612-199908

main04493-33090iMCV21199908

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33100iMCV21199612-199908

main47201-33130iMCV2#,SXV2#199612-199908

main47201-33250iMCV2#,SXV2#199908

main47201-33260iMCV21199908

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33011iMCV2#,SXV2#199612

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iMCV2#,SXV2#199908

main90430-06104iMCV2#,SXV2#199612-199908

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iMCV2#,SXV2#199612

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iMCV2#,SXV2#199612

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iMCV2#,SXV2#199612

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20060iMCV2#,SXV2#199612-199908

main47264-48010iMCV2#,SXV2#199908

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iMCV2#,SXV2#199612

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iMCV2#,SXV2#199612

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

9412041000

main94120-41000

14 parts on this diagram · 2 diagrams in section
