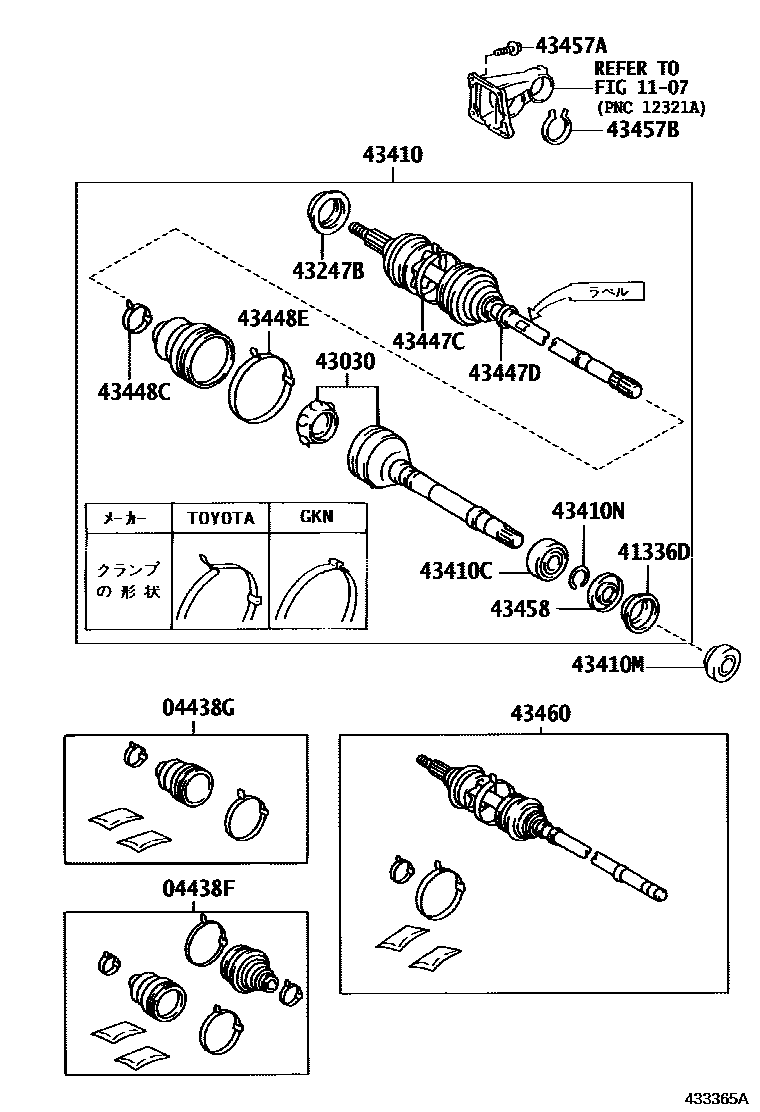

FRONT DRIVE SHAFT

0001 1RH,GKN 0003 1RH,TOYOTA 0004 1RH 0005 1LH,GKN 0007 1LH,TOYOTA 0008 1RH,GKN,TYPE A 0009 1RH,GKN,TYPE B 0010 1RH,TOYOTA 0011 1RH 0012 1LH,GKN,TYPE A 0013 1LH,GKN,TYPE B 0014 1LH,TOYOTA 0015 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-06021iSXV20..SED199612-199908

main04438-06080iSXV20..SED199612-200109

main04438-06100iMCV21..SED199612-200103

main04438-20070iSXV2#..WG; SXV20..SED199612-199805

main04438-20370iSXV20..SED; SXV25;SXV20..WG199805-199809

main04438-20371iSXV20..SED; SXV25;SXV20..WG199809-200109

main04438-33021iMCV2#..WG; MCV21..SED199612-199712

main04438-33090iMCV21; MCV25200105-200109

main04438-48030iMCV2#..WG; MCV21..SED199712-199912

main04438-48031iMCV2#..WG; MCV21..SED199912-200105

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-06011iSXV20..SED199612-199908

main04438-06070iSXV20..SED199612

main04438-06090iMCV21200103

main04438-20330iSXV2#199612-199805

main04438-20360iSXV20..SED; SXV25;SXV20..WG199805-199809

main04438-20361iSXV20..SED; SXV25;SXV20..WG199809

main04438-33011iMCV2#..WG; MCV21..SED199612-199912

main04438-33012iMCV21; MCV25200103

1107MOUNTING

→ Go to FIG 11-07

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06010iSXV20..SED199612

main41336-06020iMCV21200103

main41336-12020iMCV21..SED; MCV21..WG199612-200103

main41336-20011iSXV20..SED; SXV20..WG199612-199908

main41336-20050iSXV20..SED; SXV20..WG199908

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-06020iSXV20..SED199612-199908

main43030-06030iSXV20..SED199612

main43030-06040iMCV21..SED199612-200103

main43030-33010iSXV20..SED; SXV20..WG199612

main43030-33030iSXV25199706

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-06010iMCV21,SXV20..SED199612

main43247-12010iMCV21,SXV20..SED; SXV25;MCV2#,SXV20..WG199612

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06060iSXV20..SED199612-199908

main43410-06160iSXV20..SED199612-199804

main43410-06161iSXV20..SED199804-200109

main43410-06170iMCV21200103-200109

main43410-33020iSXV20..SED; SXV20..WG199612-199804

main43410-33021iSXV20..SED; SXV20..WG199804-199805

main43410-33022iSXV20..SED; SXV20..WG199805-200109

main43410-33070iMCV21..SED; MCV21..WG199612-199712

main43410-33110iSXV25199706-199804

main43410-33111iSXV25199804-199805

main43410-33112iSXV25199805-200109

main43410-33120iMCV25199706-199712

main43410-33150iMCV21..SED; MCV21..WG199712-199908

main43410-33170iMCV25199712-199908

main43410-33200iMCV21..SED; MCV21..WG199908-200008

main43410-33201iMCV21..SED; MCV21..WG200008-200105

main43410-33202iMCV21200105-200109

main43410-33220iMCV25199908-200008

main43410-33221iMCV25200008-200105

main43410-33222iMCV25200105-200109

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36048iSXV20..SED199612

main90363-36001iMCV25,SXV2#..WG; SXV20..SED199701-199806

main90363-36004iSXV20..SED; SXV20..WG199806

main90363-36006iMCV25,SXV25199806

main90363-41002iMCV21199911

main90369-36001iSXV20..SED; SXV20..WG199612-199701

main90369-41001iMCV21199612-199911

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35019iSXV20199612

main90311-40010iMCV21199612-200012

main90311-40028iMCV21200012

main90316-28003iSXV25199706

main90316-34001iMCV25199706

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iMCV21200103

main90081-52006iSXV20..SED199612

main90520-33008iSXV20..SED; SXV25;MCV25,SXV20..WG199612

main90520-38015iMCV21..SED; MCV21..WG199612-200103

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06040iSXV20..SED199612

main42345-06060iMCV21200103

main42345-16030iMCV2#..WG; MCV21..SED199612-199712

main42345-16050iSXV2#..WG; SXV20..SED199612-199805

main42345-20040iSXV20..SED; SXV25;SXV20..WG199805

main42345-48030iMCV2#..WG; MCV21..SED199712-200103

main90080-46084iSXV20..SED199612-199908

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06050iSXV20..SED199612-200109

main42345-06070iMCV21200103-200109

main42345-16060iSXV2#..WG; SXV20..SED199612-199805

main42345-16070iMCV2#..WG; MCV21..SED199612-199712

main42345-20030iSXV20..SED; SXV25;SXV20..WG199805-200109

main42345-44010iMCV21; MCV25200103-200105

main42345-44020iMCV21; MCV25200105-200109

main42345-48040iMCV2#..WG; MCV21..SED199712-200105

main90080-46086iSXV20..SED199612-199908

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06020iSXV20..SED199612

main42345-14010iMCV21; MCV25200103

main42345-16050iSXV20..SED; SXV25;SXV20..WG199612-199908

main90080-46084iMCV21..SED199612-199705

main90080-46238iMCV21200103

main90949-01559iSXV20..SED; SXV25;SXV20..WG199908

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06010iSXV20..SED199612-199908

main42345-06030iSXV20..SED199612

main42345-16100iMCV2#..WG; MCV21..SED199612-199908

main42345-30010iSXV20..SED; SXV25;SXV20..WG199612

main90080-46173iMCV21200103

main90949-01340iMCV21; MCV25200103

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iMCV21,SXV20199612

main90901-19023iMCV25,SXV25199706-199804

main90901-19060iMCV25,SXV25199804

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iMCV25,SXV2#199612

main90521-78002iMCV21199612

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06010iSXV20..SED199612

main43458-06020iMCV21200103

main43458-12010iMCV21200103

main43458-20011iSXV20..SED; SXV20..WG199612

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39075iSXV25199706-199804

main43460-39076iSXV25199804-199805

main43460-39077iSXV25199805-199806

main43460-39078iSXV25199806-200109

main43470-09190iSXV20..SED199612-199908

main43470-09330iSXV20..SED199612-199908

main43470-09331iSXV20..SED199908-200109

main43470-09340iMCV21..SED199612-200103

main43470-39195iSXV20..SED; SXV20..WG199612-199804

main43470-39196iSXV20..SED; SXV20..WG199804-199805

main43470-39197iSXV20..SED; SXV20..WG199805-199806

main43470-39198iSXV20..SED; SXV20..WG199806-200109

main43470-39206iMCV2#..WG; MCV21..SED199612-199712

main43470-39207×2iMCV2#..WG199908-199912

main43470-39209iMCV2#..WG; MCV21..SED199912-200008

main43470-39365iMCV2#..WG; MCV21..SED200008-200105

main43470-39366iMCV25200105-200109
