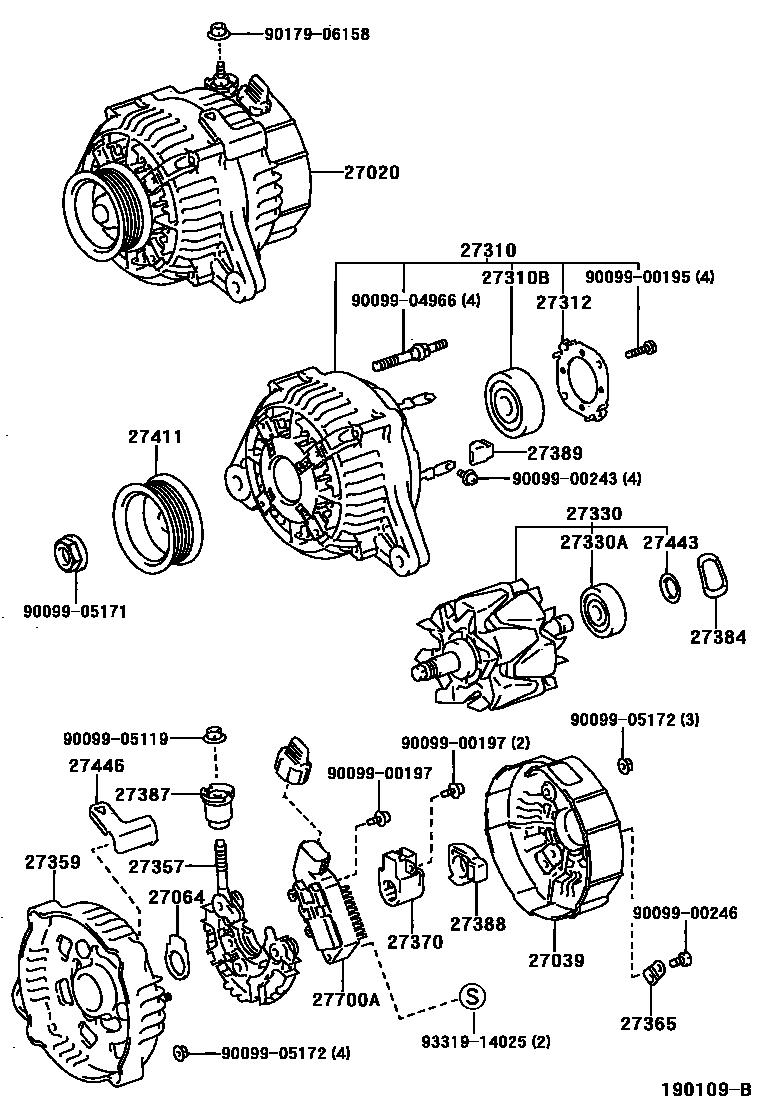

ALTERNATOR

0001 112V 100A 0002 112V 80A & 12V 90A

27020ALTERNATOR ASSY

main27060-20080i2MZFE..MCV21..SED199612-199707

sub27060-20090

main27060-20090i2MZFE..MCV2#199612-199908

main27060-20140i2MZFE..MCV2#199908

main27060-74650i5SFE..SXV20..SED199612-199808

main27060-74690i5SFE..SXV2#199612-199808

27039COVER, ALTERNATOR REAR END

main27039-20060i2MZFE..MCV2#199612-200104

main27039-20160i2MZFE..MCV2#200104

main27039-55080i5SFE..SXV2#199612-200104

sub27039-70470

main27039-70470i5SFE..SXV2#200104

27064SEAL, ALTERNATOR PLATE

main27064-42010i2MZFE,5SFE..MCV2#,SXV2#199612

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-20060i2MZFE..MCV2#199612-199908

main27310-20080i2MZFE..MCV2#199908

main27310-74490i5SFE..SXV2#199612

sub27310-70440

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10192i2MZFE,5SFE..MCV2#,SXV2#199612

27312PLATE, RETAINER

main27312-42010i2MZFE,5SFE..MCV2#,SXV2#199612

27330ROTOR ASSY, ALTERNATOR

main27330-20060i2MZFE..MCV21..SED199701-199703

sub27330-64520

main27330-20070i2MZFE..MCV2#199612-199707

main27330-64520i2MZFE..MCV21..SED199612-199707

sub27330-20070

main27330-72280i5SFE..SXV20..SED199612-199808

sub27330-74550

main27330-74550i5SFE..SXV2#199612-199808

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i2MZFE,5SFE..MCV2#,SXV2#199612

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16310i5SFE..SXV2#199612-199808

main27357-20060i2MZFE..MCV2#199612

main27357-55080i5SFE..SXV20..SED199612-199808

27359FRAME, ALTERNATOR RECTIFIER END

main27359-20060i2MZFE..MCV2#199612-199908

main27359-20080i2MZFE..MCV2#199908

main27359-74550i5SFE..SXV2#199612

sub27359-70440

27365PLATE, TERMINAL

main27365-55080i2MZFE,5SFE..MCV2#,SXV2#199612

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i2MZFE,5SFE..MCV2#,SXV2#199612

27384WASHER

main27384-50030i2MZFE,5SFE..MCV2#,SXV2#199612

27387INSULATOR, TERMINAL

main27387-42020i2MZFE,5SFE..MCV2#,SXV2#199612-199708

main27387-42021i2MZFE,5SFE..MCV2#,SXV2#199708

27388COVER, ALTERNATOR BRUSH

main27388-42010i2MZFE,5SFE..MCV2#,SXV2#199612

27389INSULATOR, TERMINAL

main27389-42010i2MZFE,5SFE..MCV2#,SXV2#199612

27411PULLEY, ALTERNATOR

main27411-20020i2MZFE..MCV2#199612-199908

main27411-42030i5SFE..SXV2#199612

main27411-46080i2MZFE..MCV2#199908

27443COVER, ALTERNATOR BEARING

main27443-63020i2MZFE,5SFE..MCV2#,SXV2#199612

27446CLIP, ALTERNATOR CORD

main27446-20050i2MZFE..MCV2#199612

main27446-74370i5SFE..SXV2#199612

27700AREGULATOR ASSY, GENERATOR

main27700-20050i2MZFE..MCV2#199612

main27700-74030i5SFE..SXV2#..WG199612-199808

main27700-74040i5SFE..SXV20..SED199612-199808

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

9331914025

main93319-14025

30 parts on this diagram · 2 diagrams in section
