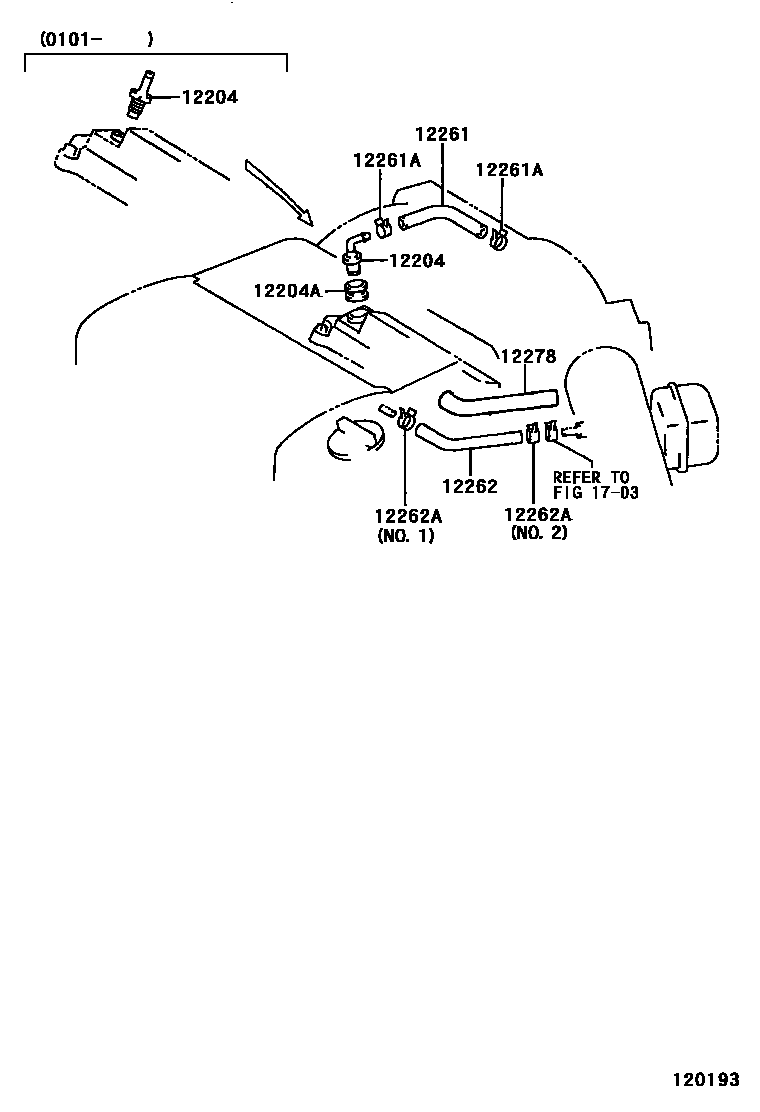

VENTILATION HOSE

0001 1 0002 1 0003 1

12204VALVE SUB-ASSY, VENTILATION

main12204-20010i2MZFE..MCV2#199612-200101

main12204-20040i2MZFE..MCV2#200101

main12204-74030i5SFE..SXV2#199612

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i2MZFE..MCV2#199612-200101

12261HOSE, VENTILATION

main12260-74070i5SFE..SXV2#199709-199904

main12260-74071i5SFE..SXV2#199904

main12261-20010i2MZFE..MCV2#199612-199708

sub12261-20011

main12261-20011i2MZFE..MCV2#199708

main12261-74180i5SFE..SXV2#199612-199709

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017i2MZFE..MCV2#199612

main90467-15016i5SFE..SXV2#199612-199709

sub96135-51400

main90467-15016i5SFE..SXV2#199709

sub96135-51400

main90467-16003i5SFE..SXV2#199709

sub96134-51500

12262HOSE, VENTILATION, NO.2

main12262-20010i2MZFE..MCV2#199612-199709

main12262-20020i2MZFE..MCV2#199709

main12262-74100i5SFE..SXV2#199612

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-14043i5SFE..SXV2#199612

main90467-17011i2MZFE..MCV2#199612-199709

sub96134-51700

main90467-17011i2MZFE..MCV2#199709

sub96134-51700

main90467-19022i2MZFE..MCV2#199709-199805

main96134-41900i2MZFE..MCV2#199805

12278INSULATOR, VENTILATION HOSE HEAT

main12278-20010i2MZFE..MCV2#199709

1703

8 parts on this diagram · 3 diagrams in section
