MIRROR
87810MIRROR ASSY, INNER REAR VIEW
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
L=49
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LIGHT GRAY,TRIM1#
LIGHT OAK,TRIM4#
87835PROTECTOR, INNER MIRROR SPRING
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87904SPRING SUB-ASSY, OUTER MIRROR, RH
87905SUPPORT SUB-ASSY, OUTER UNDER VIEW MIRROR
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
SU.WHITE PM,28Y
SUPER SILVER 3 ME,176
SUPER SILVER ME.,1A0
BLACK,202
BEIGE MM,4J1
DK GREEN MICA,6M1
DK.GREEN M.M.,6P2
DK.BLUE MM.,8K0
SUPER WHITE 2,040
SUPER SILVER 3 ME.,176
SUPER SILVER ME.,1A0
BLACK,202
BEIGE MICA ME.,4J1
DK GREEN MICA,6M1
DK.BLUE MM.,8K0
87910FMIRROR ASSY, FENDER, RH
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE 2,040
SU.WHITE PM,28Y
SUPER SILVER 3 ME,176
BLUISH SILVER ME.,1A0
BLUISH SILVER ME.,1A0
BLACK,202
BEIGE MM,4J1
DK GREEN MICA,6M1
DK.GREEN M.M.,6P2
DK.BLUE MM.,8K0
DK.BLUE M.M.,8K0
SUPER WHITE 2,040
SUPER SILVER 3 ME.,176
BLUISH SILVER ME.,1A0
BLACK,202
BEIGE MICA ME.,4J1
DK GREEN MICA,6M1
DK.BLUE MM.,8K0
87940FMIRROR ASSY, FENDER, LH
87941GASKET, OUTER REAR VIEW MIRROR, LH
9014950059
main90149-50059
9015350011
main90153-50011
9017906097
main90179-06097

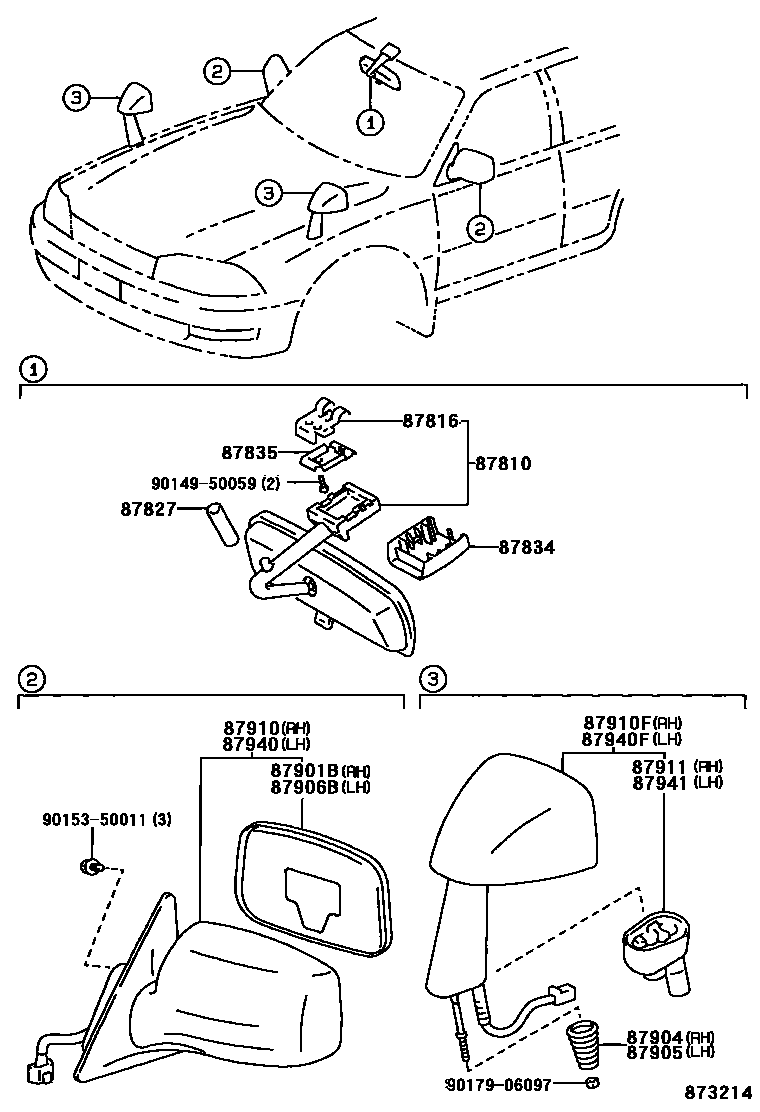

18 parts on this diagram · 1 diagram in section
