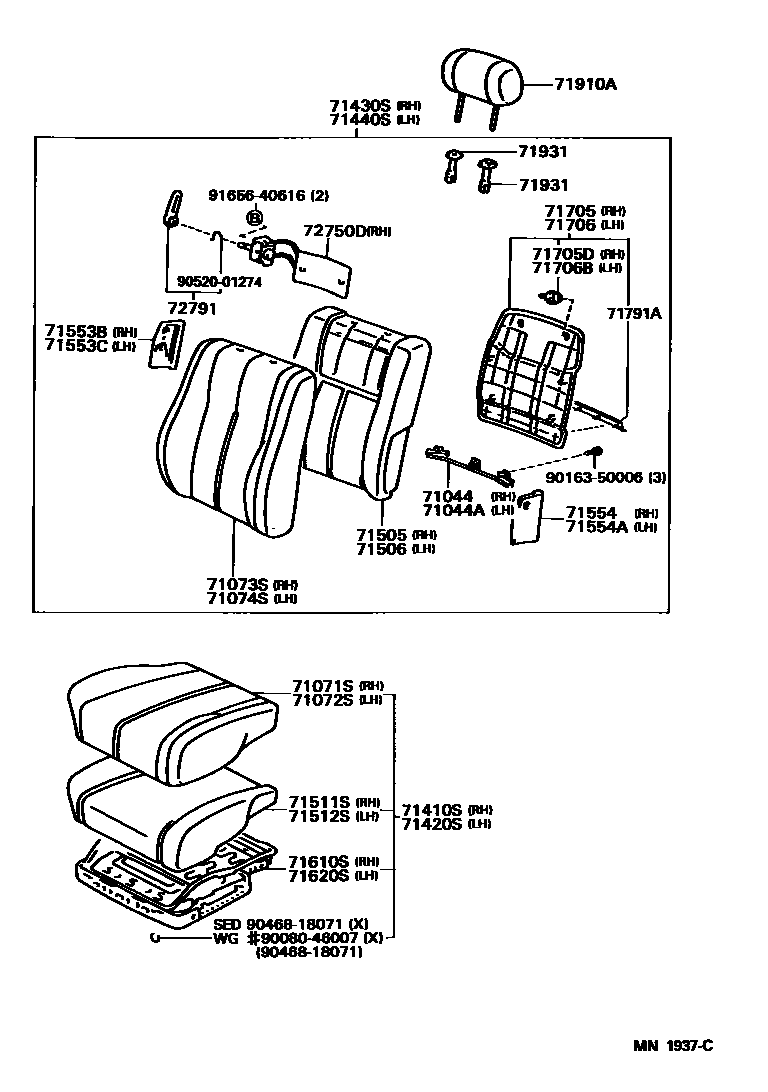

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71044WIRE SUB-ASSY, FRONT SEATBACK, LOWER RH

main71044-32010iSXV10,VCV10199211-199608

71044AWIRE SUB-ASSY, FRONT SEATBACK, LOWER LH

main71044-32010iSXV10,VCV10199211-199608

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-33040-E0iSXV10199303-199308

MEDIUM OAK,TRIM4#

main71071-33041-B1iSXV10199408-199608

MEDIUM GRAY,TRIM1#

main71071-33250-03iSXV10199211-199408

MEDIUM GRAY,TRIM1#

main71071-33250-E0iSXV10199211-199303

MEDIUM OAK,TRIM4#

main71071-33280-B0iSXV10; VCV10199211-199303

main71071-33280-E0iSXV10; VCV10199211-199308

main71071-33281-B2iSXV10; VCV10199408-199608

main71071-33291-B0iSXV10; VCV10199308-199310

main71071-33291-E0iSXV10,VCV10199211-199308

main71071-33292-B1iSXV10; VCV10199310-199401

main71071-33293-B1iSXV10; VCV10199401-199408

main71071-33294-B3iVCV10199408-199608

main71071-33300-B0iSXV10; VCV10199303-199408

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-33040-E0iSXV10,VCV10199303-199308

MEDIUM OAK,TRIM4#

main71072-33041-B3iSXV10,VCV10199408-199608

MEDIUM GRAY,TRIM1#

main71072-33071-B0iSXV10; VCV10199308-199310

main71072-33071-E0iSXV10,VCV10199211-199308

main71072-33072-B1iSXV10; VCV10199310-199401

main71072-33073-B1iSXV10; VCV10199401-199408

main71072-33074-B5iVCV10199408-199608

main71072-33280-03iSXV10,VCV10199211-199408

MEDIUM GRAY,TRIM1#

main71072-33280-E0iSXV10,VCV10199211-199303

MEDIUM OAK,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-33030-E0iSXV10,VCV10199303-199308

MEDIUM OAK,TRIM4#

main71073-33031-B1iSXV10,VCV10199408-199608

MEDIUM GRAY,TRIM1#

main71073-33061-B0iSXV10; VCV10199308-199310

main71073-33061-E0iSXV10,VCV10199211-199308

main71073-33062-B1iSXV10; VCV10199310-199401

main71073-33063-B1iSXV10; VCV10199401-199408

main71073-33063-B5iVCV10199408-199608

main71073-33220-03iSXV10,VCV10199211-199408

MEDIUM GRAY,TRIM1#

main71073-33220-E0iSXV10,VCV10199211-199303

MEDIUM OAK,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-33260-E0iSXV10,VCV10199303-199308

MEDIUM OAK,TRIM4#

main71073-33261-B2iSXV10,VCV10199408-199608

MEDIUM GRAY,TRIM1#

main71073-33270-B0iSXV10,VCV10199211-199408

MEDIUM GRAY,TRIM1#

main71073-33270-E0iSXV10,VCV10199211-199303

MEDIUM OAK,TRIM4#

main71074-33211-B0iSXV10; VCV10199308-199310

main71074-33211-E0iSXV10,VCV10199211-199308

main71074-33212-B1iSXV10; VCV10199310-199401

main71074-33213-B1iSXV10; VCV10199401-199408

main71074-33213-B5iVCV10199408-199608

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-33100-03iSXV10199211-199408

***,MEDIUM GRAY,TRIM1#

main71410-33100-E0iSXV10199211-199308

***,MEDIUM OAK,TRIM4#

main71410-33101-B0iSXV10199408-199608

***,MEDIUM GRAY,TRIM1#

main71410-33280-B0iSXV10; VCV10199211-199408

main71410-33280-E0iSXV10; VCV10199211-199308

main71410-33281-B1iSXV10; VCV10199408-199608

main71410-33290-B0iSXV10; VCV10199308-199310

main71410-33290-E0iSXV10,VCV10199211-199308

main71410-33291-B1iSXV10; VCV10199310-199401

main71410-33292-B1iSXV10; VCV10199401-199408

main71410-33293-B2iVCV10199408-199608

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-33120-03iSXV10,VCV10199211-199408

***,MEDIUM GRAY,TRIM1#

main71420-33120-E0iSXV10,VCV10199211-199308

***,MEDIUM OAK,TRIM4#

main71420-33121-B1iSXV10,VCV10199408-199608

***,MEDIUM GRAY,TRIM1#

main71420-33130-03iSXV10; VCV10199308-199310

main71420-33130-E0iSXV10,VCV10199211-199308

main71420-33131-B0iSXV10; VCV10199310-199401

main71420-33132-B0iSXV10; VCV10199401-199408

main71420-33133-B2iVCV10199408-199608

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-33100-03iSXV10,VCV10199211-199408

***,MEDIUM GRAY,TRIM1#

main71430-33100-E0iSXV10,VCV10199211-199308

***,MEDIUM OAK,TRIM4#

main71430-33101-B0iSXV10,VCV10199408-199608

***,MEDIUM GRAY,TRIM1#

main71430-33120-03iSXV10,VCV10199211-199308

main71430-33120-E0iSXV10,VCV10199211-199308

main71430-33121-B0iSXV10; VCV10199310-199401

main71430-33122-B0iSXV10; VCV10199401-199408

main71430-33122-B2iVCV10199408-199608

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-33060-03iSXV10,VCV10199211-199408

***,MEDIUM GRAY,TRIM1#

main71430-33060-E0iSXV10,VCV10199211-199308

***,MEDIUM OAK,TRIM4#

main71430-33061-B0iSXV10,VCV10199408-199608

***,MEDIUM GRAY,TRIM1#

main71440-33190-B0iSXV10,VCV10199211-199308

main71440-33190-E0iSXV10,VCV10199211-199308

main71440-33191-B1iSXV10; VCV10199310-199401

main71440-33192-B1iSXV10; VCV10199401-199408

main71440-33192-B3iVCV10199408-199608

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-33020iSXV10,VCV10199211-199608

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71505-33010iSXV10,VCV10199211-199608

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-33040iSXV10199211-199608

main71511-33050iSXV10; VCV10199211-199405

main71511-33060iSXV10; VCV10199308-199405

main71511-33070iVCV10199405-199608

main71511-33080iSXV10199405-199408

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-33030iSXV10199308-199408

main71511-33040iSXV10,VCV10199211-199608

71553BPAD, FRONT SEATBACK, B

main71553-33020iSXV10,VCV10199211-199304

main71553-33040iSXV10,VCV10199304-199608

71553CPAD, FRONT SEATBACK, C

main71553-33020iSXV10,VCV10199211-199304

main71553-33040iSXV10,VCV10199304-199608

71554PAD, FRONT SEATBACK, C

main71554-33010iSXV10199211-199304

main71554-33020iSXV10,VCV10199211-199304

main71554-33040iSXV10,VCV10199304-199608

71554APAD, FRONT SEATBACK, CENTER

main71554-33010iSXV10,VCV10199211-199304

main71554-33030iSXV10,VCV10199304-199608

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-32100iSXV10199211-199608

main71610-32110iVCV10199211-199408

main71610-32120iSXV10; VCV10199408-199608

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-32030iSXV10,VCV10199211-199608

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-33050-B0iSXV10,VCV10199211-199408

MEDIUM GRAY,TRIM1#

main71705-33050-E0iSXV10,VCV10199211-199308

OAK,TRIM4#

main71705-33051-B2iSXV10,VCV10199408-199608

MEDIUM GRAY,TRIM1#,C & A

main71705-33060-B0iSXV10; VCV10199308-199311

main71705-33060-E0iSXV10,VCV10199211-199308

main71705-33070-B0iSXV10199311-199408

main71705-33170-B0iSXV10,VCV10199408-199608

MEDIUM GRAY,TRIM1#,TOYOTABOU

71705DCLIP, FRONT SEATBACK BOARD

main71769-33010×2iSXV10,VCV10199211-199608

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-33050-B0iSXV10,VCV10199211-199408

MEDIUM GRAY,TRIM1#

main71705-33050-E0iSXV10,VCV10199211-199308

OAK,TRIM4#

main71705-33051-B2iSXV10,VCV10199408-199608

MEDIUM GRAY,TRIM1#,C & A

main71705-33060-B0iSXV10; VCV10199308-199311

main71705-33060-E0iSXV10,VCV10199211-199308

main71705-33070-B0iSXV10199311-199408

main71705-33170-B0iSXV10,VCV10199408-199608

MEDIUM GRAY,TRIM1#,TOYOTABOU

71706BCLIP, FRONT SEATBACK BOARD

main71769-33010×2iSXV10,VCV10199211-199608

71791ARETAINER, FRONT SEATBACK POCKET

71910AHEADREST ASSY, FRONT SEAT

main71910-33050-03×2iSXV10,VCV10199211-199408

MEDIUM GRAY,TRIM1#

main71910-33050-E0×2iSXV10,VCV10199211-199308

MEDIUM OAK,TRIM4#

main71910-33052-B0iSXV10,VCV10199408-199608

MEDIUM GRAY,TRIM1#

main71910-33060-03×2iSXV10; VCV10199308-199408

main71910-33060-E0×2iSXV10,VCV10199211-199308

main71910-33061-S4×2iVCV10199408-199608

main71910-33230-B0iSXV10,VCV10199408-199608

TOYOBOU,MEDIUM GRAY,MEDIUM GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-10070-B0iSXV10,VCV10199408-199608

main71930-10070-E1×2iSXV10,VCV10199211-199308

main71931-10020-B0iSXV10,VCV10199408-199608

main71931-10020-E1×2iSXV10,VCV10199211-199308

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-33010iSXV10,VCV10199211-199608

72791LEVER, LUMBAR SUPPORT

main72791-22020-B0iSXV10,VCV10199211-199608

MEDIUM GRAY,TRIM1#

main72791-22020-E8iSXV10,VCV10199211-199308

OAK,TRIM4#

9008046007

main90080-46007

9016350006

main90163-50006

9046818071

main90468-18071

9052001274

main90520-01274

9165640616

main91656-40616

34 parts on this diagram · 3 diagrams in section
