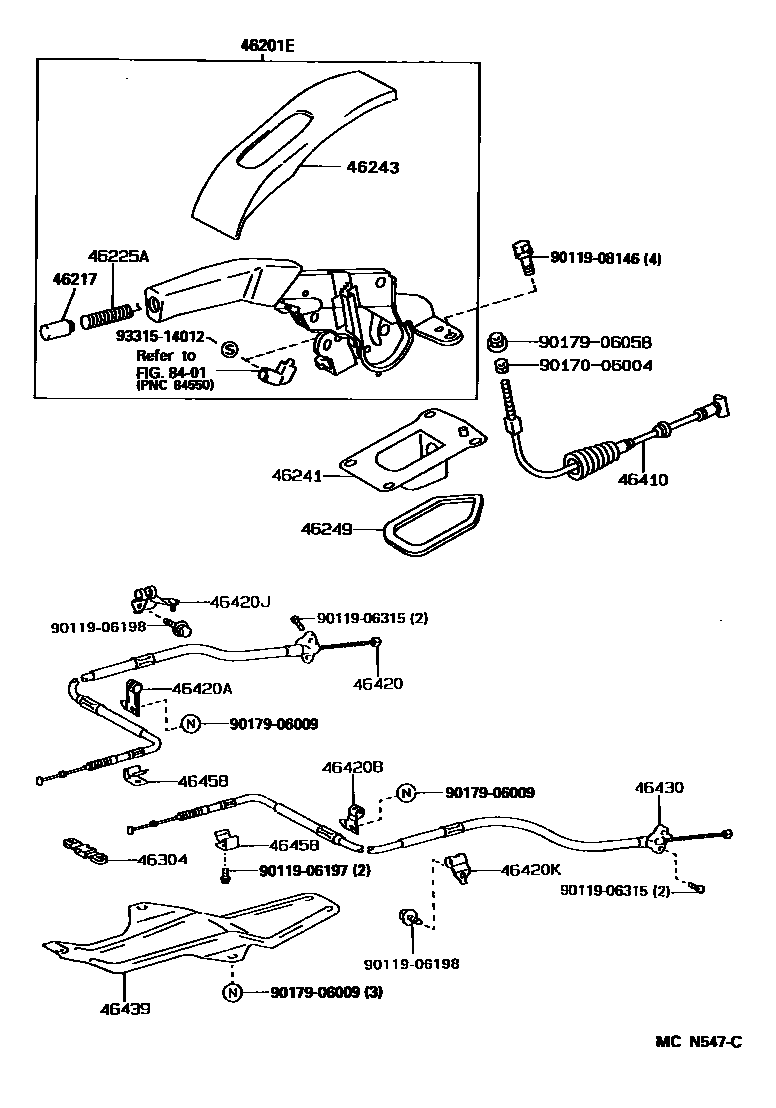

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-06040-B0iSXV10,VCV10199408-199608

MEDIUM GRAY,TRIM1#

main46201-33020-B0iSXV10,VCV10199308-199608

MEDIUM GRAY,TRIM1#

main46201-33020-E0iSXV10,VCV10199211-199308

OAK,TRIM4#

main46201-33040-B0iSXV10,VCV10199211-199408

main46201-33040-C0iSXV10,VCV10199211-199408

main46201-33040-E0iSXV10,VCV10199211-199308

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-06010-B0iSXV10,VCV10199404-199608

MEDIUM GRAY,TRIM1#

main46217-17010-B0iSXV10,VCV10199211-199608

MEDIUM GRAY,TRIM1#

main46217-17010-E0iSXV10,VCV10199211-199308

OAK,TRIM4#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90080-50064iSXV10,VCV10199404-199608

main90504-12005iSXV10,VCV10199211-199608

46241BOOT, PARKING BRAKE LEVER

main46241-06010iSXV10,VCV10199404-199608

main46241-33010iSXV10,VCV10199211-199608

46243COVER, PARKING BRAKE LEVER

main46243-06020iSXV10,VCV10199404-199608

main46243-33010iSXV10,VCV10199211-199608

46249SHIELD, PARKING BRAKE HOLE

main46249-06010iSXV10,VCV10199404-199608

main46249-32030iSXV10,VCV10199211-199608

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-33010iSXV10,VCV10199211-199608

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-06010iSXV10,VCV10199404-199608

main46410-33020iSXV10,VCV10199211-199608

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-33041iSXV10,VCV10199211-199608

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01663iSXV10,VCV10199211-199608

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01664iSXV10,VCV10199211-199608

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01709iSXV10,VCV10199211-199508

main90949-01A66iSXV10,VCV10199508-199608

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01711iSXV10,VCV10199211-199508

main90949-01A67iSXV10,VCV10199508-199608

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-33041iSXV10,VCV10199211-199608

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-33010iSXV10,VCV10199211-199608

46458RETAINER, CABLE

main46458-28010×2iSXV10,VCV10199211-199608
