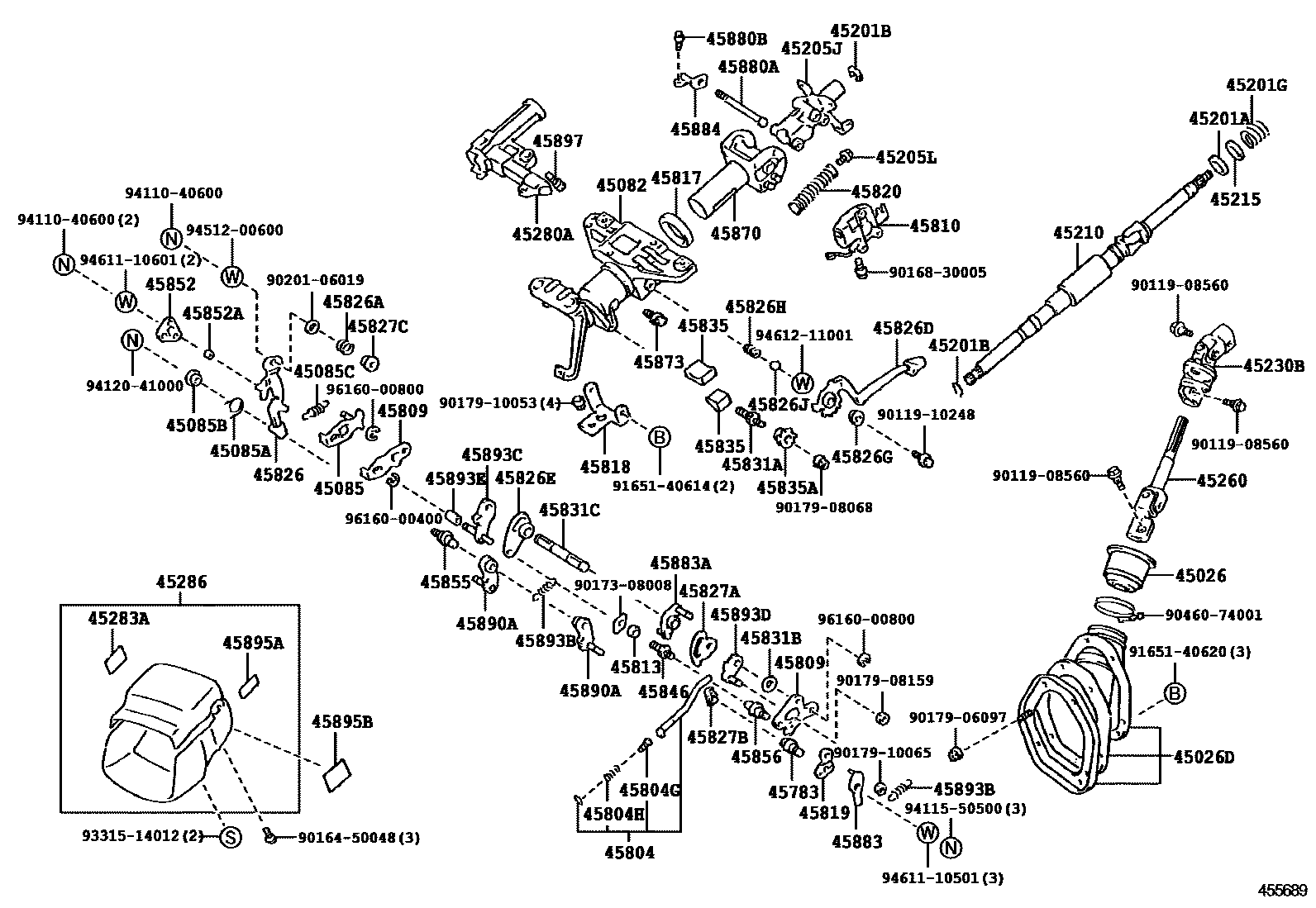

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026DCOVER SUB-ASSY, STEERING COLUMN HOLE
45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45085PLATE SUB-ASSY, TILT MEMORY, NO.1
45085ASPRING, TORSION(FOR TILT MEMORY PLATE SUB-ASSY NO.1)
45085BSPACER(FOR TILT MEMORY PLATE SUB-ASSY NO.1)
45085CSPRING, TENSION(FOR TILT MEMORY PLATE SUB-ASSY NO.1)
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45205LSCREW(FOR STEERING COLUMN TUBE)
45215COLLAR, MAIN SHAFT BEARING THRUST
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45286COVER, STEERING COLUMN
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
OAK,TRIM4#
MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
45783STOPPER, TILT STEERING, NO.1
45804LEVER SUB-ASSY, STEERING TILT
45804GPIN(FOR STEERING TILT LEVER)
45804HSPRING, COMPRESSION(FOR STEERING TILT LEVER)
45809COVER SUB-ASSY, ADJUSTER MEMORY
45810GEAR ASSY, TILT STEERING, W/MOTOR
45813COLLAR, TILT STEERING SUPPORT, NO.1
45817STOPPER, STEERING SHAFT THRUST
45818BRACKET, CONNECTOR
45819RETAINER, TILT LEVER
45820SPRING ASSY, TILT STEERING SUPPORT
45826LEVER, STEERING TILT
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826DLEVER, STEERING TELESCOPIC
45826ELEVER, STEERING TILT(FOR TILT ADJUST)
45826GCOLLAR(FOR STEERING TELESCOPIC LEVER)
45826HSPRING, COMPRESSION(FOR STEERING TELESCOPIC LEVER)
45826JBALL(FOR STEERING TELESCOPIC LEVER)
45827BLEVER, STEERING TILT SUB, NO.2
45827CLEVER, STEERING TILT SUB, NO.3
45831ABOLT, TELESCOPE LEVER LOCK
45831BSPACER(FOR TILT LEVER LOCK SHAFT)
45835AATTACHMENT, TILT LEVER SERRATION
45846BOLT, TILT MEMORY
45852PLATE, TILT MEMORY, NO.2
45852ACOLLAR(FOR TILT MEMORY PLATE NO.2)
45856BOLT, TILT STEERING, NO.2
45870TUBE ASSY, STEERING COLUMN
45873STOPPER, STEERING COLUMN TUBE
45880LEVER ASSY, STEERING TILT
45880ABOLT(FOR STEERING TILT LEVER)
45880BSCREW(FOR STEERING TILT LEVER)
45883LEVER, TILT RELEASE
45883ALEVER, TILT RELEASE, NO.2
45884BRACKET, TILT LEVER
45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)
45893CSTOPPER, STEERING PAWL, RH
45893DSTOPPER, STEERING PAWL, LH
45893ECOLLAR(FOR TILT STEERING STOPPER)
45895APLATE, TILT STEERING CAUTION
45895BPLATE, TILT LEVER INSTRUCTION
45897BOLT, STEERING LOCK SET
9011908560
main90119-08560
9011910248
main90119-10248
9016450048
main90164-50048
9016830005
main90168-30005
9017308008
main90173-08008
9017906097
main90179-06097
9017908068
main90179-08068
9017908159
main90179-08159
9017910053
main90179-10053
9017910065
main90179-10065
9020106019
main90201-06019
9046074001
main90460-74001
9165140614
main91651-40614
9165140620
main91651-40620
9331514012
main93315-14012
9411040600
main94110-40600
9411550500
main94115-50500
9412041000
main94120-41000
9451200600
main94512-00600
9461110501
main94611-10501
9461110601
main94611-10601
9461211001
main94612-11001
9616000400
main96160-00400
9616000800
main96160-00800
90 parts on this diagram · 3 diagrams in section
