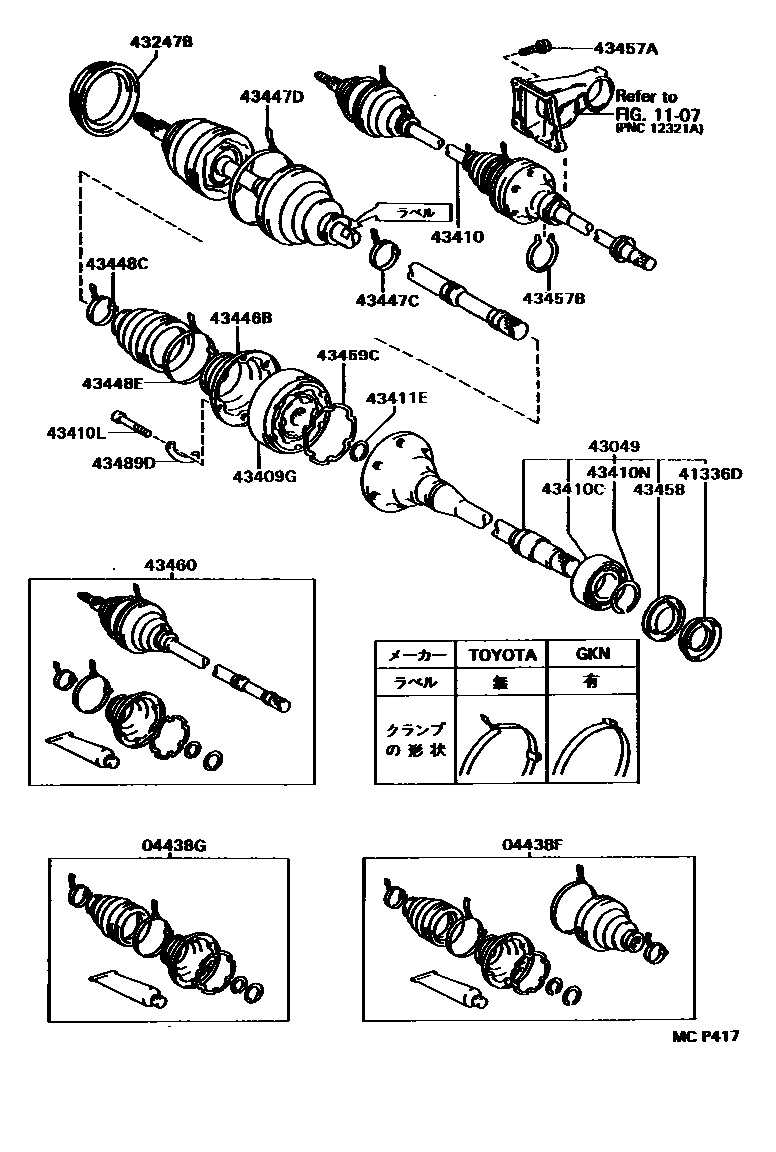

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-06021iSXV10199408-199608

main04438-06040iVCV10199211-199608

sub04438-06062

main04438-20070iSXV10199408-199608

main04438-33021iVCV10199211-199608

sub04438-33022

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-06011iSXV10199408-199608

main04438-06030iVCV10199211-199608

sub04438-06052

main04438-20060iSXV10199211-199408

main04438-20330iSXV10199511-199608

sub04438-20361

main04438-33011iVCV10199211-199608

sub04438-33012

1107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-03030iVCV10199211-199309

main41336-06010iSXV10199408-199608

main41336-06020iVCV10199309-199608

main41336-12020iVCV10199211-199608

main41336-20011iSXV10199211-199408

sub41336-20050

43049SHAFT SUB-ASSY, FRONT DRIVE FLANGE

main43049-06010iVCV10199211-199309

main43049-06030iVCV10199309-199608

main43049-33010iVCV10199211-199608

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-06010iVCV10199211-199308

main43247-06020iVCV10199211-199308

main43247-12010iSXV10199211-199308

main43247-33010iSXV10,VCV10199408-199608

43409GJOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH

main43409-06010iVCV10199211-199608

main43409-17010iVCV10199211-199608

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06030iVCV10199211-199309

main43410-06040iVCV10199211-199309

main43410-06050iSXV10199408-199608

sub43410-06151

main43410-06060iSXV10199408-199608

sub43410-06161

main43410-06090iVCV10199309-199608

sub43410-06180

main43410-06100iVCV10199309-199608

sub43410-06180

main43410-33010iSXV10199211-199408

sub43410-33011

sub90178-22001

main43410-33020iSXV10199408-199608

sub43410-33021

sub90178-22001

main43410-33030iVCV10199211-199608

sub43410-33130

main43410-33040iVCV10199211-199608

sub43410-33140

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36048iSXV10199411-199608

main90369-36001iSXV10199211-199411

sub90363-36001

main90369-41001iVCV10199211-199608

sub90363-41002

43410LBOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH)

main90080-11034×6iVCV10199211-199608

main90110-10007×6iVCV10199211-199608

sub90110-10015

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iVCV10199211-199608

main90081-52006iSXV10199408-199608

main90520-33008iSXV10199211-199408

main90520-38015iVCV10199211-199608

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90080-52018iSXV10199408-199608

main90080-52036iVCV10199211-199608

main90520-26028iVCV10199211-199608

main90520-26048iSXV10199211-199408

43446BCOVER, FRONT AXLE INBOARD JOINT, RH

main43446-03020iVCV10199211-199608

main43446-17010iVCV10199211-199608

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16030iVCV10199211-199608

main42345-16050iSXV10199211-199408

main90080-46084iSXV10,VCV10199408-199608

main90080-46106iVCV10199211-199309

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16060iSXV10199211-199408

main42345-16070iVCV10199211-199608

main90080-46086iSXV10199408-199608

main90080-46109iVCV10199211-199608

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16030iVCV10199211-199309

main42345-16050iSXV10199408-199608

main90080-46084iSXV10199408-199608

main90080-46106iVCV10199408-199608

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06010iSXV10199408-199608

main42345-16090iSXV10199211-199408

main42345-16100iVCV10199309-199408

main90080-46085iVCV10199211-199309

main90080-46173iVCV10199309-199408

main90949-01340iVCV10199211-199307

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iSXV10,VCV10199211-199608

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iSXV10199211-199608

main90521-78002iVCV10199211-199608

43458COVER, FRONT DRIVE SHAFT DUST

main43458-03020iVCV10199211-199309

main43458-06010iSXV10199408-199608

main43458-06020iVCV10199309-199608

main43458-12010iVCV10199211-199608

main43458-20011iSXV10199211-199408

43459CGASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

main43459-06010iVCV10199211-199608

main43459-17010iVCV10199211-199608

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-09070iSXV10199408-199608

main43470-09080iVCV10199211-199608

sub43470-09170

main43470-09090iVCV10199211-199608

main43470-39175iSXV10199211-199608

TOYOTA

sub43470-39176

sub90178-22001

main43470-39186iVCV10199211-199608

sub43470-39187

main43470-39195iSXV10199408-199608

sub43470-39196

sub90178-22001

main43470-39206iVCV10199211-199608

sub43470-39207

43489DWASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

main43489-03010×3iVCV10199211-199608

main43489-17010×3iVCV10199211-199608

23 parts on this diagram · 4 diagrams in section
