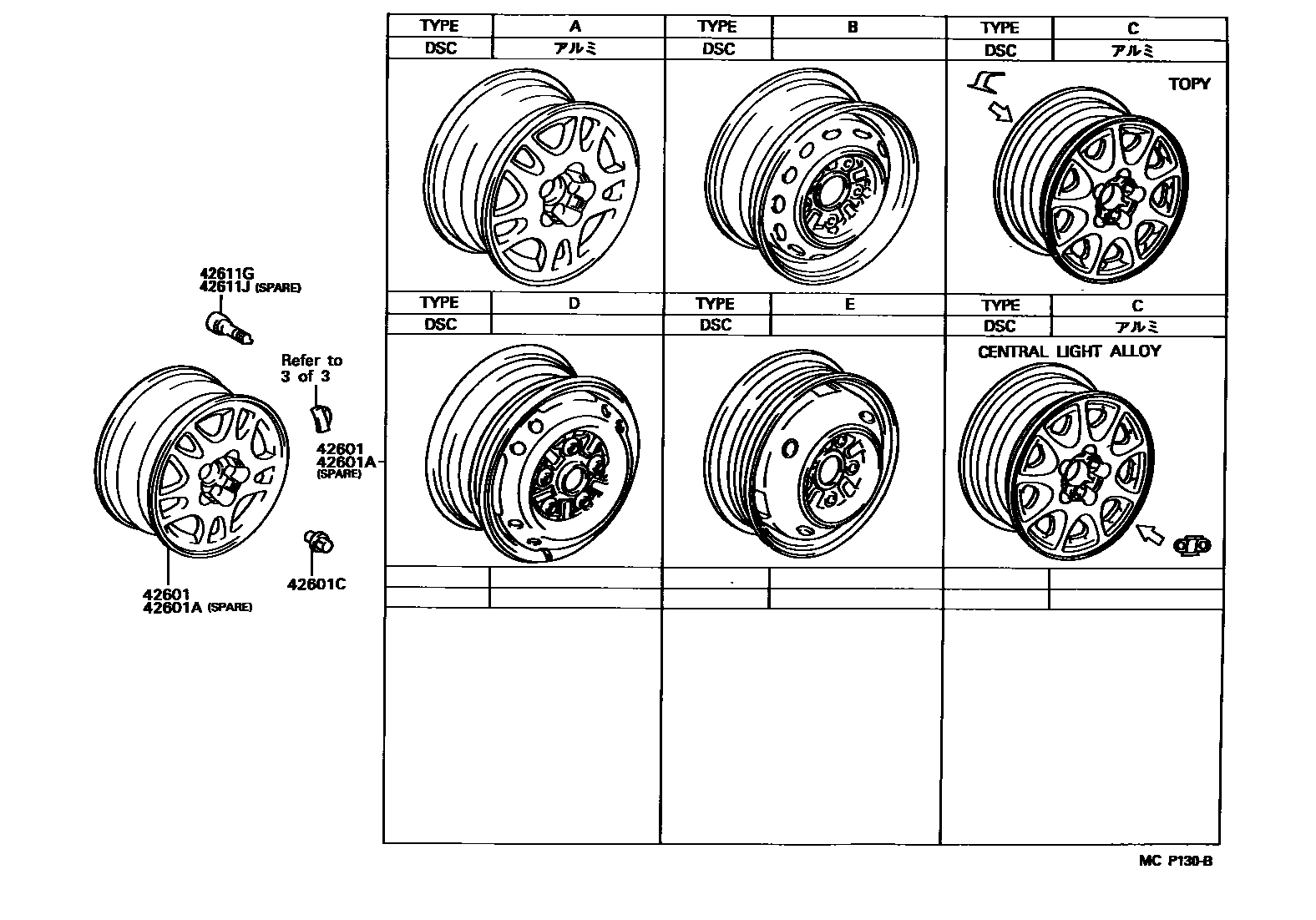

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-06070×4iVCV10199211-199608

main42611-32260-01×4iSXV10199211-199608

main42611-32290×4iSXV10199211-199608

main42611-33010-01×4iVCV10199211-199608

42601AWHEEL, DISC (FOR SPARE)

main42611-06070iVCV10199211-199608

main42611-17130iSXV10199211-199608

main42611-28210iVCV10199211-199608

main42611-32260-01iSXV10199211-199408

main42611-32290iSXV10199211-199608

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iVCV10199211-199608

main90942-01021×20iSXV10199211-199608

main90942-01058×20iSXV10; VCV10199211-199608

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iSXV10,VCV10199211-199608

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iSXV10,VCV10199211-199608

5 parts on this diagram · 3 diagrams in section
