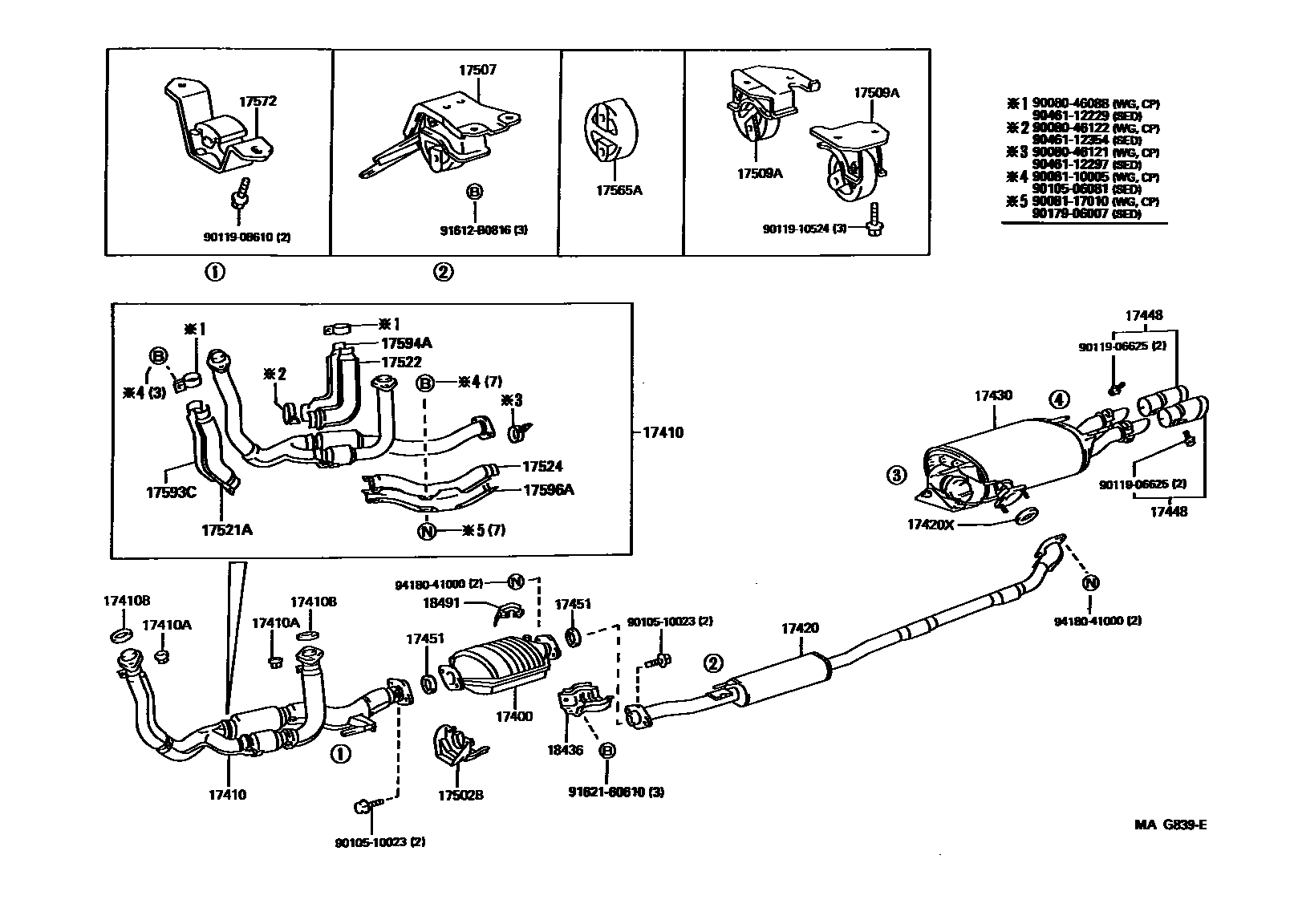

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17448BAFFLE, TAILPIPE
17451GASKET, EXHAUST PIPE
FRONT
REAR
17502BBRACKET SUB-ASSY, CATALYTIC CONVERTER, FRONT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17521APROTECTOR, EXHAUST PIPE, UPPER NO.1
17522PROTECTOR, EXHAUST PIPE, UPPER NO.2
17524PROTECTOR, EXHAUST PIPE, UPPER NO.4
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17593CPROTECTOR, EXHAUST PIPE, LOWER NO.1
17594APROTECTOR, EXHAUST PIPE, LOWER NO.2
17596APROTECTOR, EXHAUST PIPE, LOWER NO.4
18436PROTECTOR, MONOLITHIC CONVERTER, NO.1
18491FLANGE, THERMOSENSOR INLET
9008046088
main90080-46088
9008046121
main90080-46121
9008046122
main90080-46122
9008110005
main90081-10005
9008117010
main90081-17010
9010506081
main90105-06081
9010510023
main90105-10023
9011906625
main90119-06625
9011908610
main90119-08610
9011910524
main90119-10524
9017906007
main90179-06007
9046112229
main90461-12229
9046112297
main90461-12297
9046112354
main90461-12354
91612B0816
main91612-B0816
9162160610
main91621-60610
9418041000
main94180-41000
39 parts on this diagram · 2 diagrams in section
