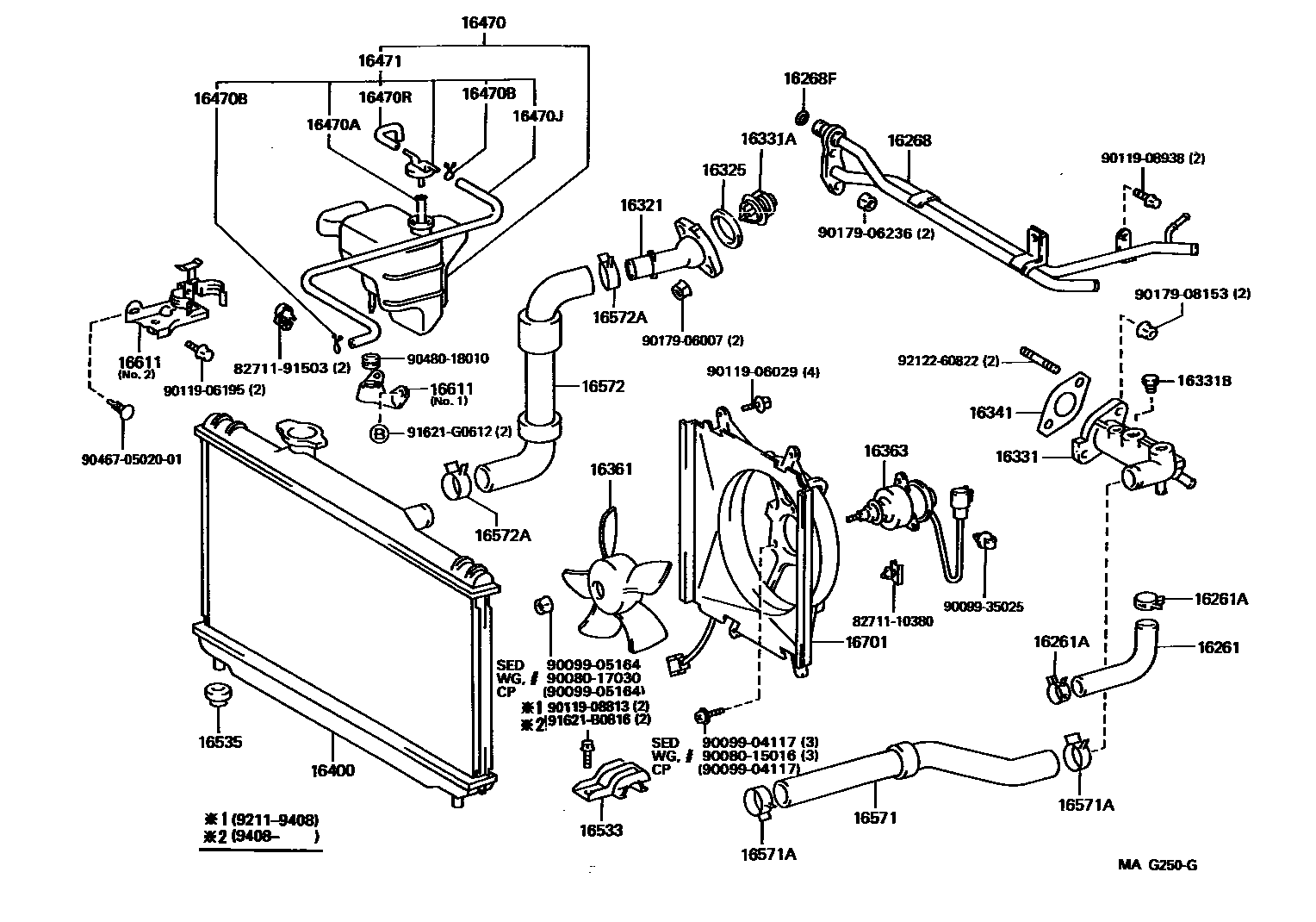

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

16261HOSE, WATER BY-PASS

main16261-62020i3VZFE..VCV10199211-199608

main16261-62030i3VZFE..VCV10199408-199608

main16261-62030i3VZFE..VCV10199211-199408

main16261-74010i5SFE..SXV10199211-199608

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-22003i5SFE..SXV10199211-199608

sub90467-21010

main96135-41300i3VZFE..VCV10199211-199608

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-03040i5SFE..SXV10199211-199608

main16268-62030i3VZFE..VCV10199211-199608

main16268-74151i5SFE..SXV10199211-199308

sub16268-74152

main16268-74152i5SFE..SXV10199308-199502

sub16268-74153

main16268-74153i5SFE..SXV10199502-199608

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24017i5SFE..SXV10199211-199608

16321INLET, WATER

main16321-03030i5SFE..SXV10199211-199608

sub16321-03060

main16321-62010i3VZFE..VCV10199211-199608

main16321-74030i5SFE..SXV10199211-199608

sub16321-74050

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i3VZFE..VCV10199211-199608

main16325-63010i5SFE..SXV10199211-199301

sub16325-63011

main16325-63011i5SFE..SXV10199301-199608

16331OUTLET, WATER

main16331-62030i3VZFE..VCV10199211-199608

sub16331-62031

main16331-74170i5SFE..SXV10199211-199608

16331ATHERMOSTAT

main90916-03060i5SFE..SXV10199211-199603

sub90916-03090

main90916-03075i3VZFE..VCV10199211-199608

main90916-03090i5SFE..SXV10199603-199608

16331BPLUG(FOR WATER OUTLET)

main90345-53007i5SFE..SXV10199607-199608

main90345-53009i5SFE..SXV10199211-199607

16341GASKET, WATER OUTLET

main16341-62030i3VZFE..VCV10199211-199608

main16341-63011i5SFE..SXV10199211-199309

sub16341-74020

main16341-74020i5SFE..SXV10199309-199608

16361FAN

main16361-74060i5SFE..SXV10199211-199608

main16911-64010i3VZFE..VCV10199211-199608

16363MOTOR, COOLING FAN

main16363-11020i5SFE..SXV10199211-199608

16400RADIATOR ASSY

main16400-62100i3VZFE..VCV10199211-199308

main16400-62150i3VZFE..VCV10199308-199608

main16400-74880i5SFE..SXV10199211-199608

16470TANK ASSY, RADIATOR RESERVE

main16470-03050i5SFE..SXV10199408-199608

main16470-0A010i3VZFE..VCV10199408-199608

SALGA

main16470-20020i3VZFE..VCV10199408-199608

*ND

main16470-20020i3VZFE..VCV10199308-199408

main16470-62040i3VZFE..VCV10199211-199308

main16470-74180i5SFE..SXV10199211-199308

sub16470-74181

sub90119-06195

main16470-74250i5SFE..SXV10199308-199608

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-03010i5SFE..SXV10199408-199608

SALGA

main90445-12078i3VZFE..VCV10199211-199408

main90445-12078i5SFE..SXV10199408-199608

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i5SFE..SXV10199211-199608

16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)

main16472-03030i5SFE..SXV10199408-199608

SALGA

main16472-0A020i3VZFE..VCV10199408-199608

SALGA

main16479-62040i3VZFE..VCV10199211-199308

main90099-33534i5SFE..SXV10199308-199408

main90099-33534i5SFE..SXV10199408-199608

main90445-12078i3VZFE..VCV10199408-199608

main90445-12078i5SFE..SXV10199211-199408

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main16472-03020i5SFE..SXV10199408-199608

SALGA

main16472-0A010i3VZFE..VCV10199408-199608

SALGA

main16477-74180i3VZFE..VCV10199211-199408

main16477-74180i3VZFE..VCV10199408-199608

*ND

main16479-74180i5SFE..SXV10199211-199408

main16479-74180i5SFE..SXV10199408-199608

*ND

16471CAP SUB-ASSY, RESERVE TANK

main16405-03050i5SFE..SXV10199408-199608

main16405-0A010i3VZFE..VCV10199408-199608

SALGA

main16405-20010i3VZFE..VCV10199308-199408

main16405-20010i3VZFE..VCV10199408-199608

*ND

main16405-62030i3VZFE..VCV10199211-199308

main16405-74170i5SFE..SXV10199211-199308

sub16405-74171

sub90119-06195

main16405-74240i5SFE..SXV10199308-199608

16533SUPPORT, RADIATOR, UPPER

main16533-62020i5SFE..SXV10199211-199608

main16533-74190i3VZFE..VCV10199211-199408

main16533-74190i3VZFE..VCV10199408-199608

16535SUPPORT, RADIATOR, LOWER

main16535-62030i3VZFE..VCV10199211-199212

sub16535-62031

main16535-62031i3VZFE..VCV10199212-199608

main16535-74170i5SFE..SXV10199211-199608

sub16535-74210

16571HOSE, RADIATOR, INLET

main16571-62040i3VZFE..VCV10199211-199608

main16571-74190i5SFE..SXV10199211-199308

sub16571-74191

sub82711-1E070

main16571-74191i5SFE..SXV10199308-199608

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003i5SFE..SXV10199211-199608

sub90467-34004

main90467-37004i3VZFE..VCV10199211-199608

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-62030i3VZFE..VCV10199211-199608

main16572-74180i5SFE..SXV10199211-199305

main16572-74181i5SFE..SXV10199305-199608

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003i5SFE..SXV10199211-199608

sub90467-34004

main90467-37002i3VZFE..VCV10199211-199608

sub90467-37005

16611BRACKET, RADIATOR RESERVE TANK

main16611-74080i5SFE..SXV10199211-199608

main16612-74010i5SFE..SXV10199211-199308

main16612-74020i5SFE..SXV10199308-199608

16701SHROUD SUB-ASSY, FAN

main16711-74410i5SFE..SXV10199211-199608

main16912-20010i3VZFE..VCV10199308-199608

main16912-62020i3VZFE..VCV10199211-199308

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

8271191503WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-91503

9008015016

main90080-15016

9008017030

main90080-17030

9009904117

main90099-04117

9009905164

main90099-05164

9009935025

main90099-35025

9011906029

main90119-06029

9011906195

main90119-06195

9011908813

main90119-08813

9011908938

main90119-08938

9017906007

main90179-06007

9017906236

main90179-06236

9017908153

main90179-08153

904670502001

main90467-0502001

9048018010

main90480-18010

91621B0816

main91621-B0816

91621G0612

main91621-G0612

9212260822

main92122-60822

46 parts on this diagram · 7 diagrams in section
