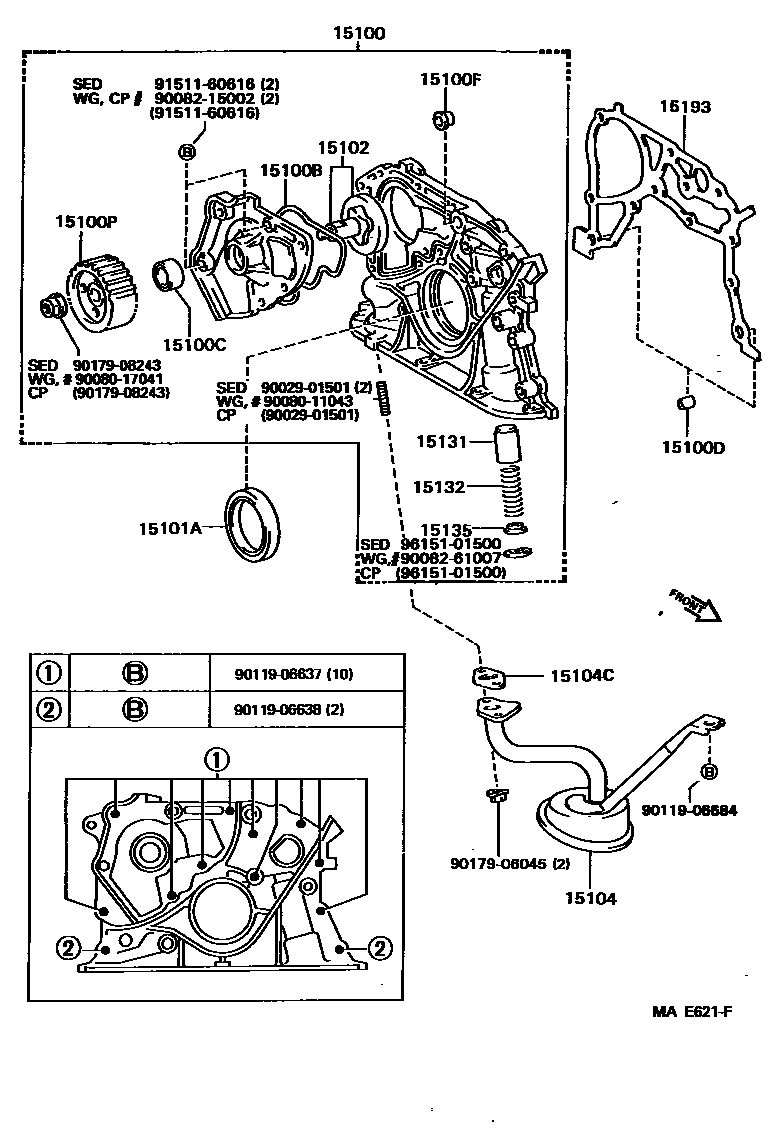

Toyota SCEPTER (SED)284 — ENGINE OIL PUMP
15100PUMP ASSY, OIL
15100BRING, O(FOR OIL PUMP)
15100CSEAL(FOR OIL PUMP)
15100DPIN(FOR OIL PUMP SET)
15100FBUSH (FOR OIL PUMP)
15100PPULLEY, OIL PUMP DRIVE SHAFT
15101ASEAL(FOR CRANKSHAFT)
15104STRAINER SUB-ASSY, OIL
15104CGASKET(FOR OIL STRAINER)
15135RETAINER, OIL PUMP RELIEF VALVE
9002901501
9008011043
9008017041
9008215002
9008261007
9011906637
9011906638
9011906684
9017906045
9017908243
9151160616
9615101500
27 parts on this diagram · 3 diagrams in section
ENGINE OIL PUMP for Toyota SCEPTER (SED)284
This section contains 37 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota SCEPTER (SED)284. Key components include: PUMP ASSY, OIL, RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP), PIN(FOR OIL PUMP SET), BUSH (FOR OIL PUMP).
