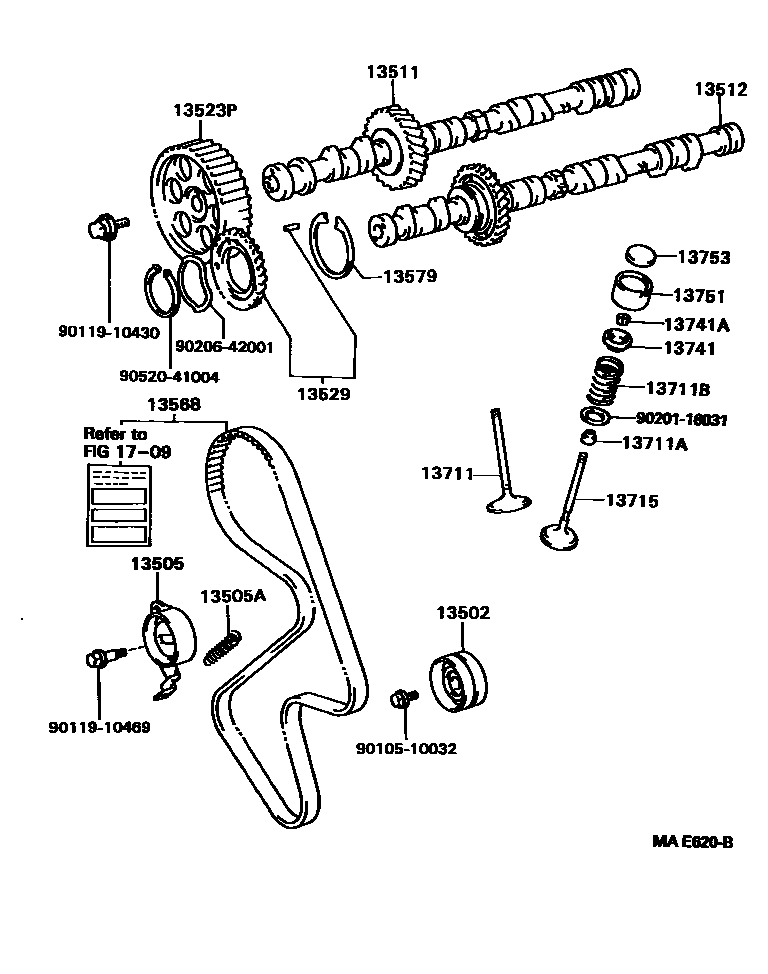

CAMSHAFT & VALVE
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505ASPRING, TENSION(FOR IDLER)
sub90507-17003
13512CAMSHAFT, NO.2
13523PPULLEY, CAMSHAFT TIMING
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
EXHAUST SIDE
EXHAUST SIDE
INTAKE SIDE
INTAKE SIDE
EXHAUST SIDE
13711BSPRING, COMPRESSION(FOR INNER)
SANKORU
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
1709
9010510032
main90105-10032
9011910430
main90119-10430
9011910469
main90119-10469
9020116031
main90201-16031
9020642001
main90206-42001
9052041004
main90520-41004
24 parts on this diagram · 2 diagrams in section
