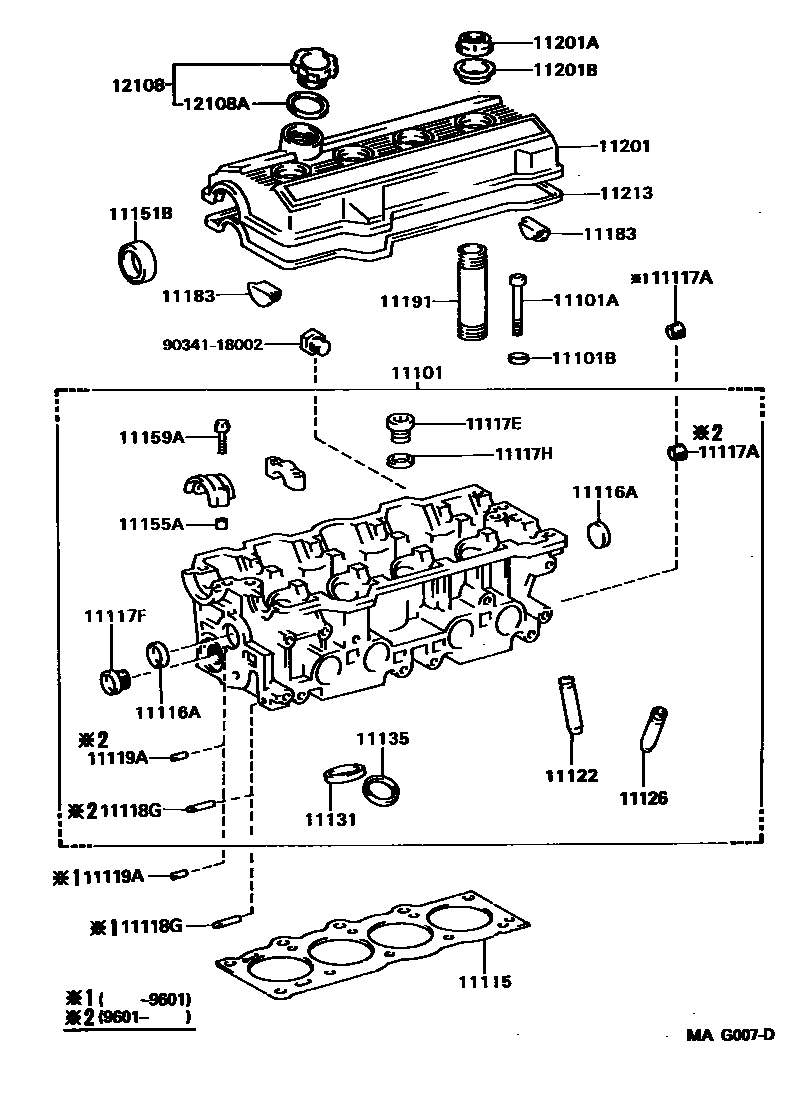

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11116GASKET, CYLINDER HEAD, NO.2
11116APLUG, TIGHT, NO.1
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11118GPIN, SLOTTED SPRING, NO.1
11119APIN, STRAIGHT, NO.1
11122BUSH, INTAKE VALVE GUIDE
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11155APIN, RING W/HEAD
11183PLUG, SEMICIRCULAR
11191TUBE, SPARK PLUG
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
9034118002
main90341-18002
28 parts on this diagram · 2 diagrams in section
