STANDARD TOOL

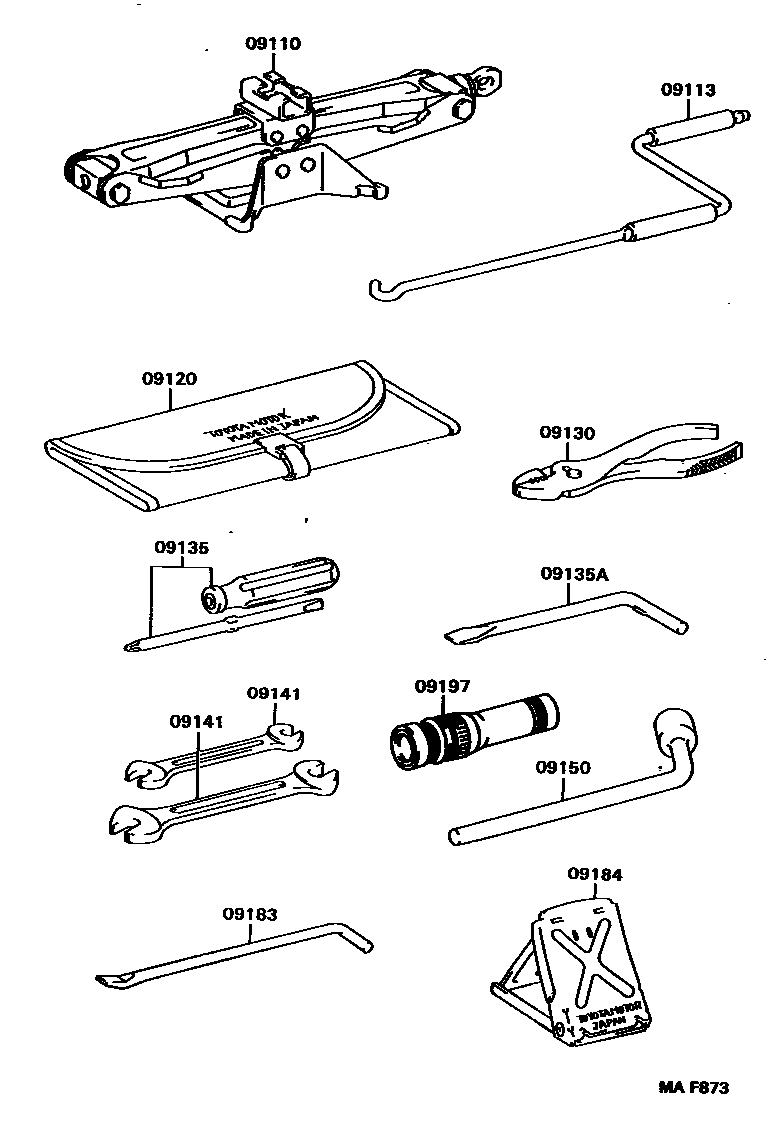

Parts diagram

09110JACK ASSY

main09111-06010i199401-199608

main09111-17020i199211-199401

09113HANDLE, JACK

main09113-30030i199211-199608

09120BAG, TOOL

main09120-10030i199211-199308

main09120-16030i199410-199608

FOR DOP

main09120-32010i199308-199608

09130PLIERS

main99913-11500i199211-199608

09135DRIVER, SCREW

main99915-10700i199211-199608

09135ABIT, SCREW DRIVER

main09135-00012i199211-199308

09141SPANNER

main99914-10810i199211-199608

main99914-11214i199211-199608

09150WRENCH, HUB NUT BOX

main09150-26010i199211-199308

main09150-40010i199308-199608

09183WRENCH, WHEEL CAP

main09183-00010i199211-199308

09184STOPPER, WHEEL

main09184-00010i199211-199608

09197LIGHT, PEN

11 parts on this diagram · 1 diagram in section
