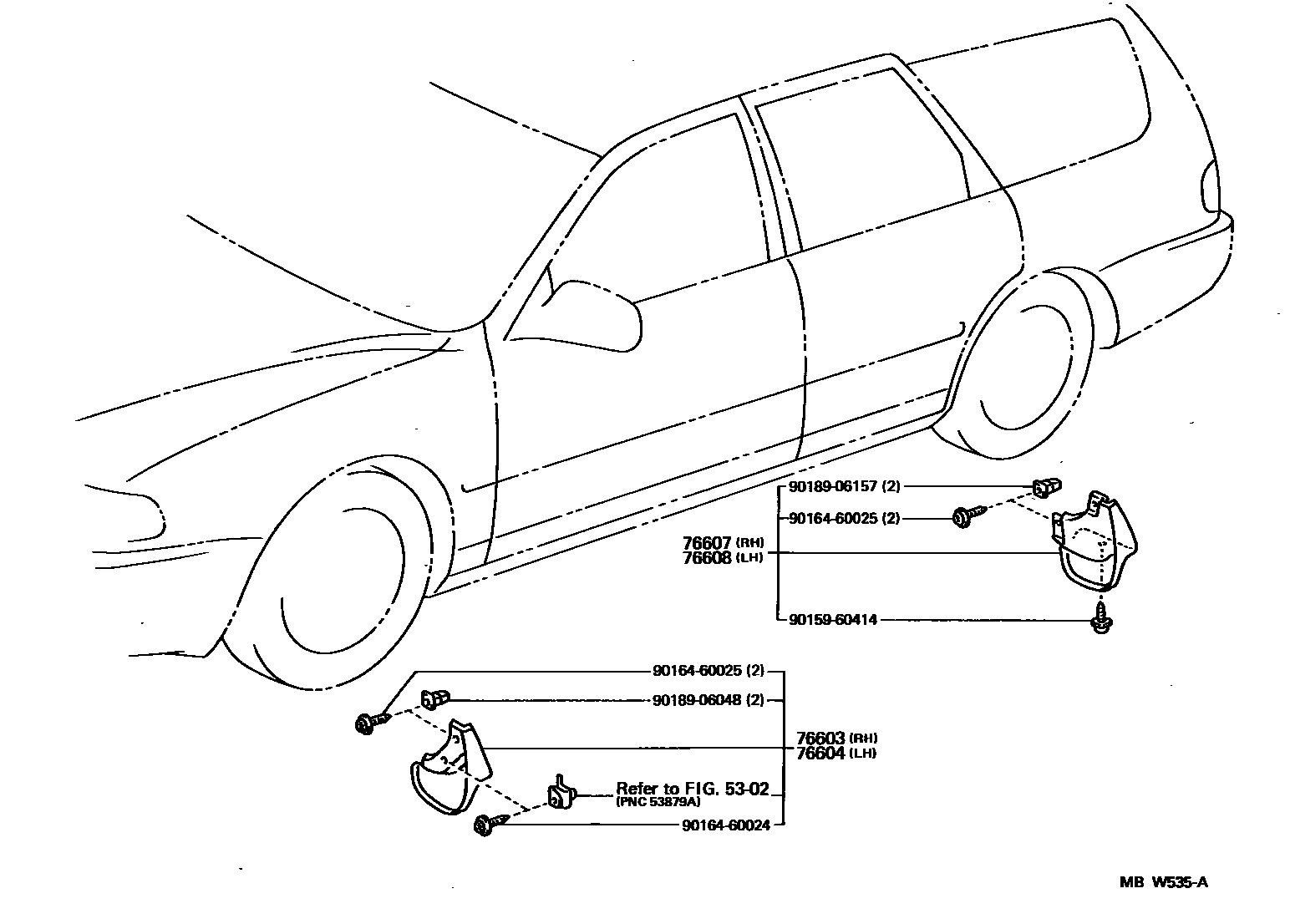

MUDGUARD & SPOILER
5302HOOD & FRONT FENDER
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
BLUISH SILVER ME,1A0
RED MICA ME,3K4
DARK WINE RED MICA,3K2
SUPER RED 3,3J6
MAGENTA MC,3L3
BEIGE MICA ME,4M9
BEIGE ME,4M9
DARK BLUE MICA,8J4
DARK BLUE M.M,8K0
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
BLUISH SILVER ME,1A0
RED MICA ME,3K4
DARK WINE RED MICA,3K2
SUPER RED 3,3J6
MAGENTA MC,3L3
BEIGE MICA ME,4M9
BEIGE ME,4M9
DARK BLUE MICA,8J4
DARK BLUE M.M,8K0
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
DARK WINE RED MICA,3K2
RED MICA M,3K4
MAGENTA MC,3L3
BEIGE MICA ME,4J1
BEIGE M,4M9
DARK BLUE MICA,8J4
DARK BLUE MICA M,8K0
BLUISH SILVER ME,1A0
SUPER RED 3,3J6
DARK BLUE M.M,8K0
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
DARK WINE RED MICA,3K2
RED MICA M,3K4
MAGENTA MC,3L3
BEIGE MICA ME,4J1
BEIGE M,4M9
DARK BLUE MICA,8J4
DARK BLUE MICA M,8K0
BLUISH SILVER ME,1A0
SUPER RED 3,3J6
DARK BLUE M.M,8K0
9015960414
main90159-60414
9016460024
main90164-60024
9016460025
main90164-60025
9018906048
main90189-06048
9018906157
main90189-06157
10 parts on this diagram · 2 diagrams in section
