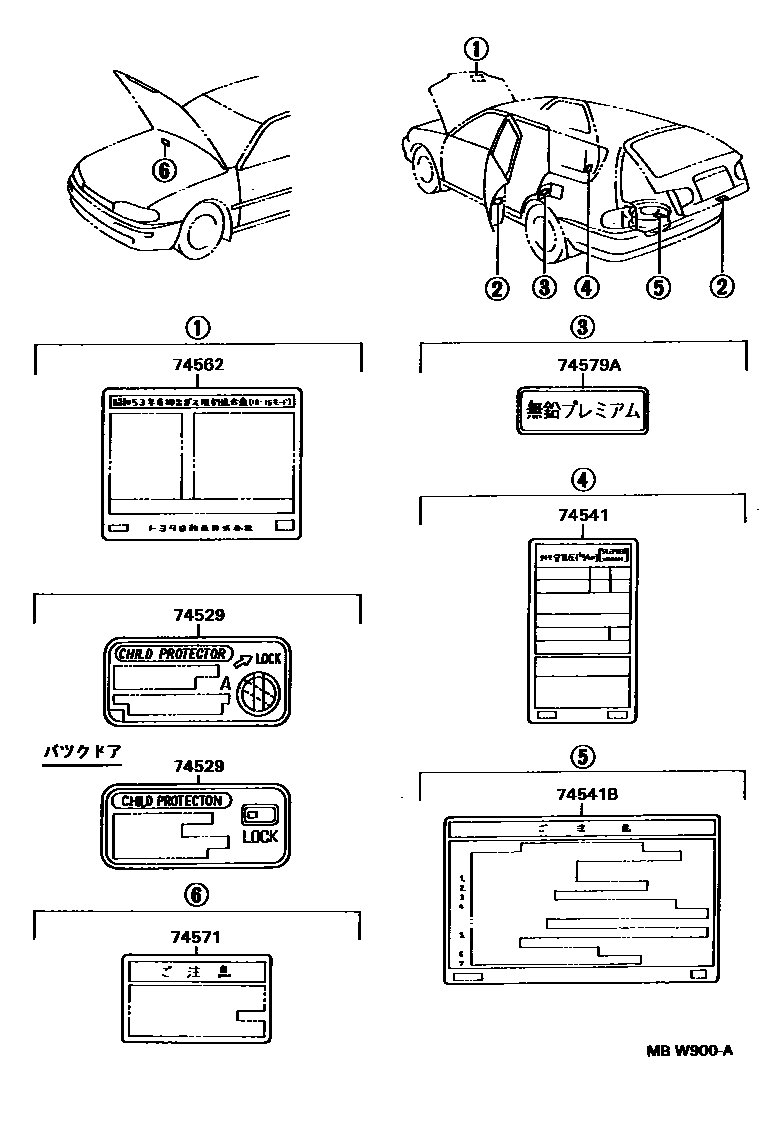

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-06010iSXV15,VCV15..WG199207-199607

RH,REAR DOOR

main69339-06020iSXV15..WG199310-199409

main69349-06010iSXV15,VCV15..WG199207-199607

LH,REAR DOOR

74541PLATE, TIRE PRESSURE CAUTION

main42661-06131iVCV15..WG199207-199506

main42661-06132iVCV15..WG199506-199607

main42661-06141iSXV15..WG199212-199506

main42661-06142iSXV15..WG199506-199607

main42661-06171iSXV15..CP199506-199607

main42661-06181iVCV15..CP199506-199607

74541BPLATE, COMPACT SPARE TIRE CAUTION

main42668-06020iSXV15,VCV15..WG199207-199402

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-33010iVCV15199207-199504

main74562-33050iSXV15199212-199504

74571PLATE, BRAKE FLUID CAUTION

main47288-32010iSXV15199212-199305

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-24010iVCV15199207-199301

6 parts on this diagram · 2 diagrams in section
