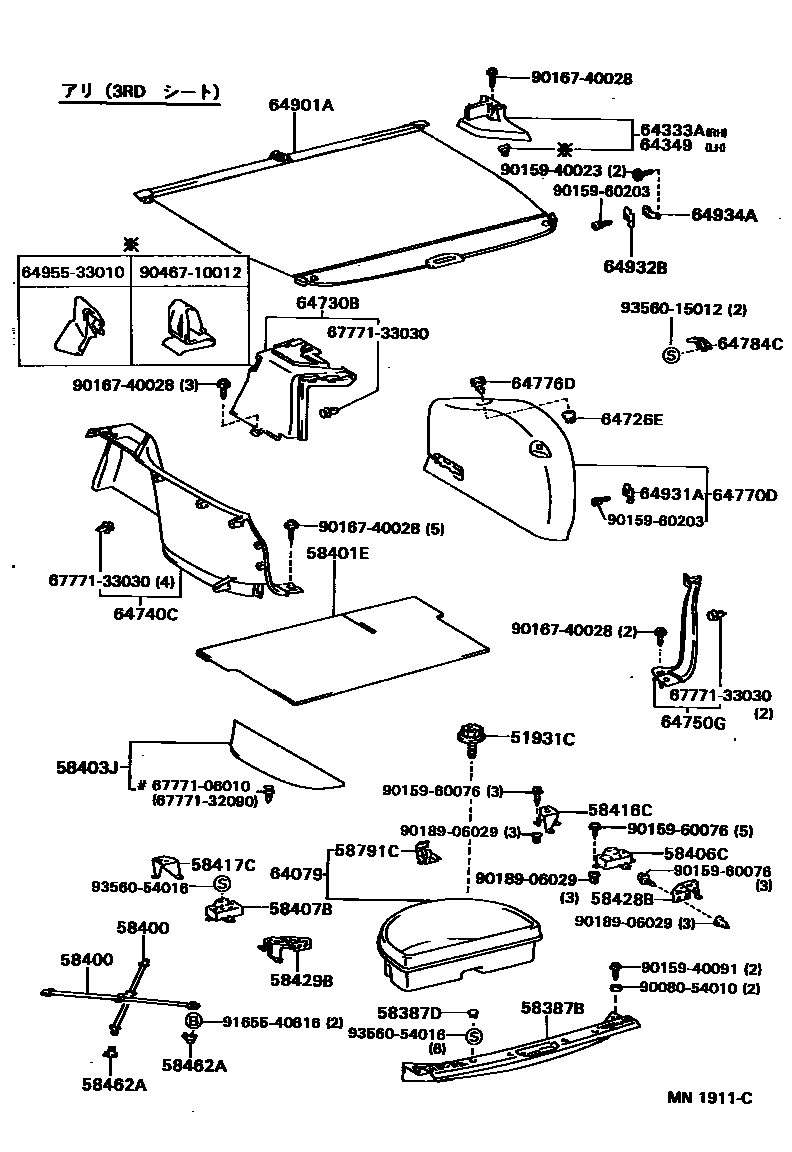

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

51931CCARRIER, SPARE WHEEL

main51931-32010iSXV15,VCV15..WG199207-199607

58387BPLATE, REAR FLOOR FINISH

main58387-06020-B0iSXV15..WG199309-199607

MEDIUM GRAY,TRIM1#

main58387-06020-E0iSXV15..WG199309-199607

OAK,TRIM4#

main58387-06030-B0iSXV15,VCV15199207-199309

MEDIUM GRAY,TRIM1#

main58387-06030-E0iSXV15..WG199309-199408

58387DPLUG, HOLE(FOR REAR FLOOR FINISH PLATE)

main90950-01503-B1×6iSXV15,VCV15..WG199207-199607

MEDIUM GRAY,TRIM1#

main90950-01503-E1×6iSXV15,VCV15..WG199212-199607

OAK,TRIM4#

58400BELT ASSY, LUGGAGE HOLD, NO.1

main58400-06010-B0×2iSXV15,VCV15..WG199207-199607

MEDIUM GRAY,TRIM1#

main58400-06010-E0×2iSXV15,VCV15..WG199212-199607

OAK,TRIM4#

58401EBOARD SUB-ASSY, DECK

main58410-06060-B0iSXV15..WG199309-199408

MEDIUM GRAY,TRIM1#

main58410-06060-E0iSXV15..WG199309-199408

MEDIUM OAK,TRIM4#

main58410-06080-B0iSXV15..WG; VCV15..WG199309-199408

main58410-06080-E0iSXV15..WG; VCV15..WG199309-199408

58403JBOARD SUB-ASSY, REAR FLOOR, NO.3

main58403-06050-B0iSXV15,VCV15199207-199309

MEDIUM GRAY,TRIM1#

main58403-06050-E0iSXV15..WG; VCV15..WG199309-199408

58406CBRACKET SUB-ASSY, DECK BOARD, RH

main58406-06010iSXV15..WG199309-199607

main58406-06020iSXV15..WG; VCV15..WG199309-199607

58407BBRACKET SUB-ASSY, DECK BOARD, LH

main58407-06010iSXV15..WG199309-199607

main58407-06020iSXV15,VCV15199207-199309

58416CBRACKET, DECK BOARD, NO.1 RH

main58416-06020iSXV15,VCV15..WG199207-199607

58417CBRACKET, DECK BOARD, NO.1 LH

main58417-06020iSXV15,VCV15..WG199207-199607

58428BBRACKET, DECK BOARD, NO.5 RH

main58428-06020iSXV15,VCV15..WG199207-199607

58429BBRACKET, DECK BOARD, NO.5 LH

main58429-06020iSXV15,VCV15..WG199207-199607

58462ASTRIKER, LUGGAGE HOLD BELT, NO.2

main58462-06010×2iSXV15,VCV15..WG199207-199607

58791CCARRIER, JACK

main58791-33010iSXV15,VCV15..WG199207-199607

64079BOX SUB-ASSY, UTILITY

main64079-06010iSXV15,VCV15..WG199207-199607

64333ACOVER, TONNEAU SIDE, RH

main64333-06010-B0iSXV15..WG199310-199607

MEDIUM GRAY,TRIM1#

main64333-06010-E0iSXV15..WG199310-199607

OAK,TRIM4#

main64333-06020-B0iVCV15..WG199310-199607

MEDIUM GRAY,TRIM1#

main64333-06020-E0iVCV15..WG199310-199607

OAK,TRIM4#

64349COVER, TONNEAU SIDE, LH

main64349-06010-B0iSXV15,VCV15..WG199207-199607

MEDIUM GRAY,TRIM1#

main64349-06010-E0iSXV15,VCV15..WG199212-199607

OAK,TRIM4#

64726ERETAINER, DECK TRIM REAR COVER

main64726-33010iSXV15,VCV15199207-199309

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-06010-B0iSXV15..WG199309-199607

MEDIUM GRAY,TRIM1#

main64730-06010-E0iSXV15..WG199309-199607

OAK,TRIM4#

main64730-06030-B0iSXV15..WG199310-199408

main64730-06030-E0iSXV15..WG199408-199607

main64730-06040-B0iSXV15,VCV15199207-199309

MEDIUM GRAY,TRIM1#

main64730-06040-E0iSXV15,VCV15199212-199309

OAK,TRIM4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-06010-B0iSXV15..WG199309-199607

MEDIUM GRAY,TRIM1#

main64740-06010-E0iSXV15..WG199309-199607

OAK,TRIM4#

main64740-06030-B0iSXV15..WG199408-199607

main64740-06030-E0iSXV15..WG199310-199408

main64740-06040-B0iSXV15,VCV15199207-199309

MEDIUM GRAY,TRIM1#

main64740-06040-E0iSXV15,VCV15199212-199309

OAK,TRIM4#

64750GGARNISH ASSY, DECK SIDE, REAR RH

main64750-06010-B0iSXV15,VCV15199207-199309

MEDIUM GRAY,TRIM1#

main64750-06010-E0iSXV15,VCV15199212-199309

OAK,TRIM4#

main64750-06020-B0iSXV15..WG199310-199408

main64750-06020-E0iSXV15..WG199408-199607

OAK,TRIM4#

64770DCOVER ASSY, SPARE WHEEL

main64770-06010-B0iSXV15..WG199310-199408

main64770-06010-E0iSXV15..WG199408-199607

OAK,TRIM4#

main64770-06050-B0iSXV15,VCV15199207-199309

MEDIUM GRAY,TRIM1#

main64770-06050-E0iVCV15..WG199309-199607

OAK,TRIM4#

64776DKNOB, SPARE WHEEL COVER

main64776-33010-B1iSXV15,VCV15..WG199408-199607

MEDIUM GRAY,TRIM1#

main64776-33010-E1iVCV15..WG199309-199408

OAK,TRIM4#

64784CREINFORCEMENT, SPARE WHEEL COVER, NO.2

main64784-06010iSXV15,VCV15199207-199309

64901ARETRACTOR SUB-ASSY, TONNEAU COVER

main64901-06010-B0iSXV15..WG199309-199607

MEDIUM GRAY,TRIM1#

main64901-06010-E0iSXV15..WG199309-199607

OAK,TRIM4#

main64901-06020-B0iSXV15..WG199309-199408

main64901-06020-E0iSXV15..WG199309-199408

64931AHANGER, TONNEAU COVER

main64931-32010-B0iSXV15,VCV15199207-199309

MEDIUM GRAY,TRIM1#

main64931-32010-E0iSXV15..WG199310-199408

64932BHANGER, TONNEAU COVER, LH

main64931-32010-B0iSXV15,VCV15..WG199207-199607

MEDIUM GRAY,TRIM1#

main64931-32010-E0iSXV15,VCV15..WG199212-199607

OAK,TRIM4#

64934ABRACKET, TONNEAU COVER HOLDER, LH

main64934-06010iSXV15,VCV15..WG199207-199607

6495533010CLAMP, TONNEAU COVER SUB

main64955-33010

6777106010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-06010

6777132090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32090

6777133030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33030

9008054010

main90080-54010

9015940023

main90159-40023

9015940091

main90159-40091

9015960076

main90159-60076

9015960203

main90159-60203

9016740028

main90167-40028

9018906029

main90189-06029

9046710012

main90467-10012

9165540616

main91655-40616

9356015012

main93560-15012

9356054016

main93560-54016

43 parts on this diagram · 2 diagrams in section
