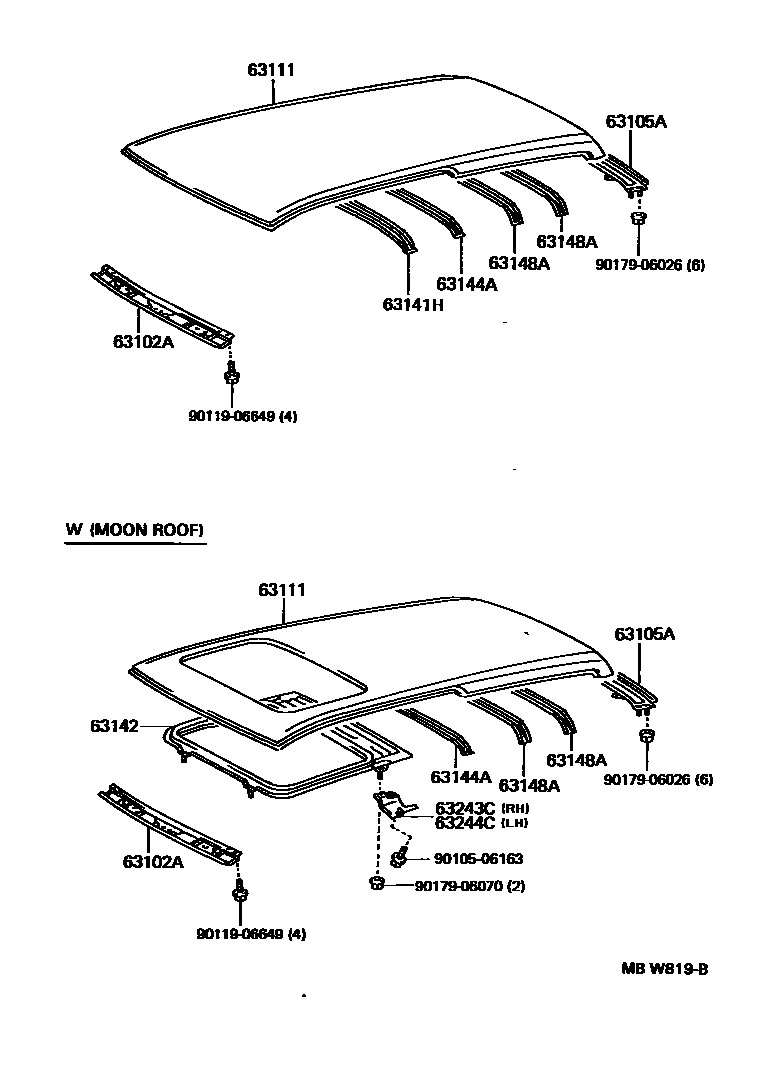

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-06010iVCV15;SXV15..CP199207-199607

main63102-06010iSXV15..WG199408-199607

main63102-06020iSXV15..WG199309-199607

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-06020iSXV15,VCV15..WG199207-199608

63111PANEL, ROOF

main63111-06070iSXV15..WG199309-199410

main63111-06080iVCV15..WG199207-199410

main63111-06080iSXV15..WG199408-199410

main63111-06210iSXV15..WG199410-199607

main63111-06220iVCV15..WG199410-199607

main63111-AA020iSXV15,VCV15..CP199310-199607

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-06010iSXV15..WG199309-199607

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-06010iSXV15,VCV15..WG199207-199607

main63142-33900iSXV15,VCV15..CP199310-199607

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63106-06010iSXV15,VCV15..WG199207-199607

main63144-AA010iSXV15,VCV15..CP199310-199607

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-06010iSXV15,VCV15..WG199207-199607

63243CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH

main63243-33010iSXV15,VCV15..CP199310-199607

main63243-33030iVCV15..WG199207-199607

63244CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH

main63244-33010iSXV15,VCV15..CP199310-199607

main63244-33030iSXV15,VCV15199207-199607

9010506163

main90105-06163

9011906649

main90119-06649

9017906026

main90179-06026

9017906070

main90179-06070

13 parts on this diagram · 5 diagrams in section
