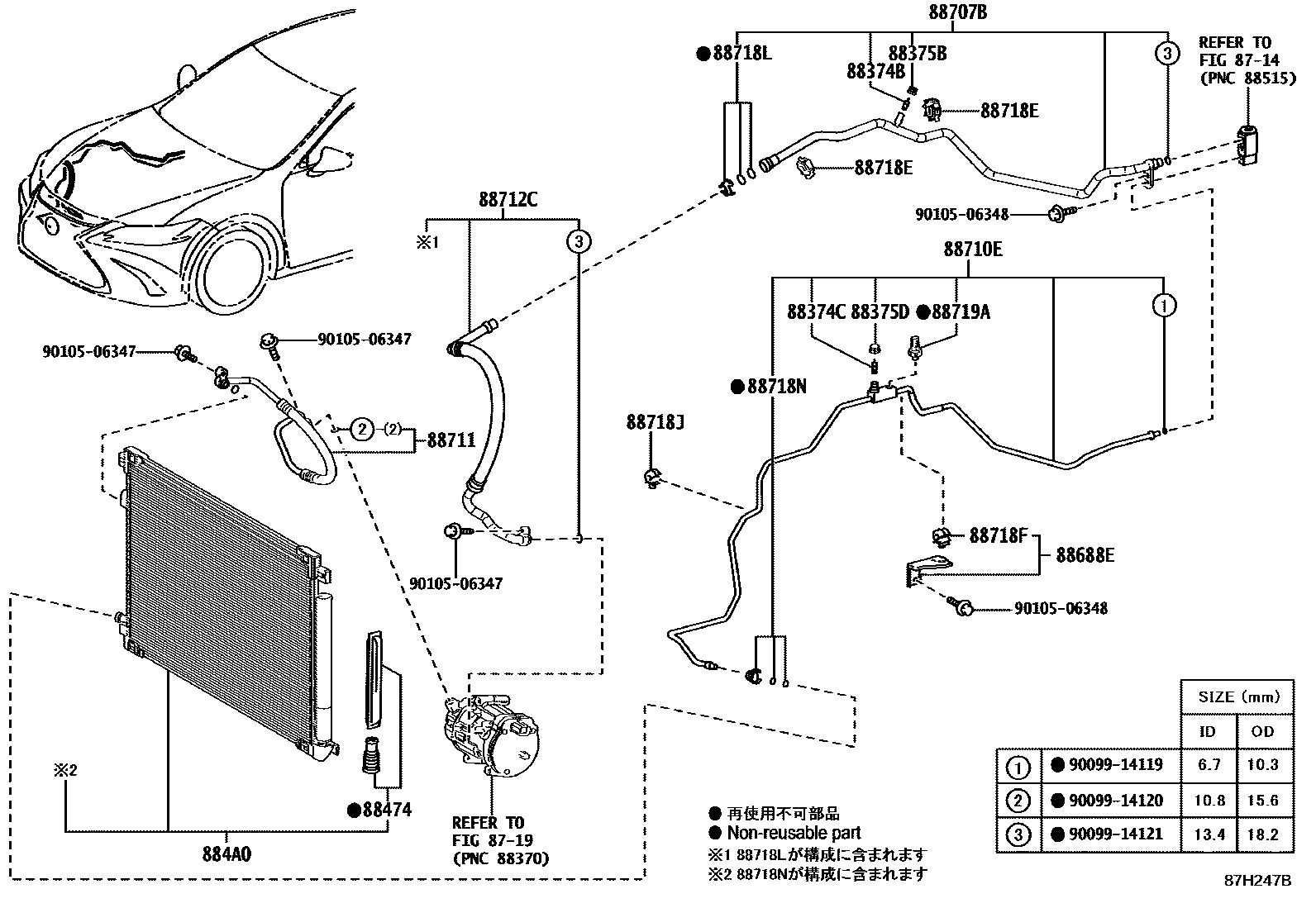

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iAXZH11202108

88374CVALVE, SERVICE, NO.2

main88374-30010iAXZH1#201810-202108

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iAXZH1#201810-202108

88375DCAP, SERVICE VALVE, NO.2

main88375-30320iAXZH1#201810-202108

88474DRYER, COOLER

main88474-12020iAXZH1#201810-202108

884A0CONDENSER ASSY, COOLER

main884A0-33060iAXZH1#201810-202108

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-33610iAXZH1#201810-202108

88707BTUBE SUB-ASSY, SUCTION, B

main88707-33110iAXZH1#201810-202108

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-33570iAXZH10201810-201902

main88710-33571iAXZH11202108

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33340iAXZH11202108

88712CHOSE, SUCTION

main88704-33630iAXZH1#201810-202108

88718ECLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)

main88718-42110×2iAXZH1#201810-202108

88718FCLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)

main88718-58050iAXZH1#201810-202108

88718JCLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)

main88718-33560iAXZH11202311

main88718-58050iAXZH1#201810-202108

88718LCLAMP, PIPING

main88718-52280iAXZH1#201810-202108

88718NCLAMP, PIPING

main88718-1E150iAXZH1#201810-202108

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAXZH1#201810-202108

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

24 parts on this diagram · 1 diagram in section
