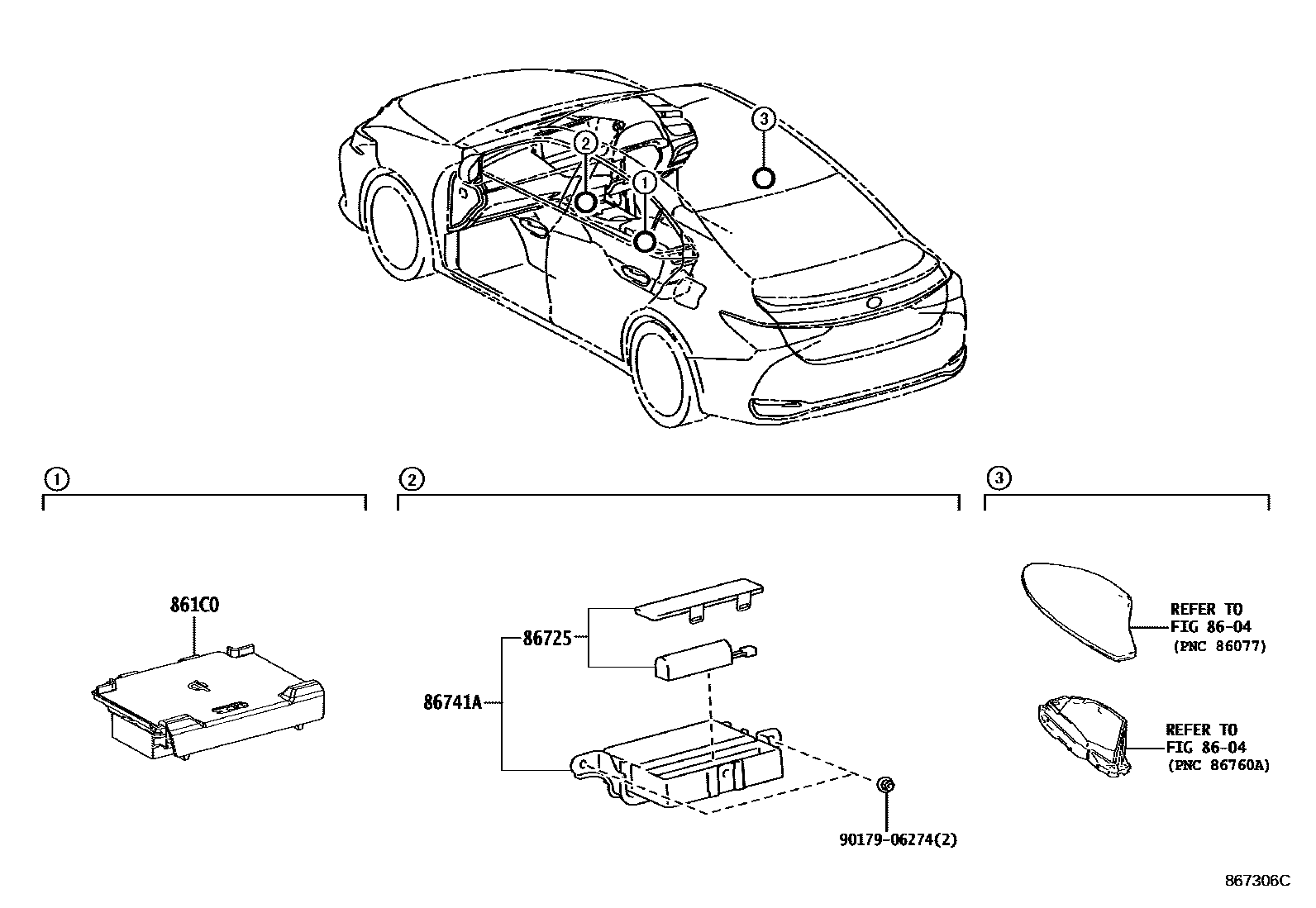

TELEPHONE & MAYDAY

0001 1 0002 1

8604ANTENNA

→ Go to FIG 86-04

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-33051iAXZH11202008-202108

main861C0-33070iAXZH10201810-201909

main861C0-33071iAXZH10201910-202007

main861C0-33100iAXZH11202208-202402

main861C0-33101iAXZH11202402

86725BATTERY, MOBILEPHONE

main86725-26010iAXZH11202008-202108

main86725-48010iAXZH10201810-202007

main86725-78020iAXZH11202208

86741ATRANSCEIVER, TELEMATICS

main86740-33220iAXZH10201810-202007

main86741-11041iAXZH11202008-202106

main86741-11042iAXZH11202108-202208

main86741-11050iAXZH11202406

main86741-60120iAXZH11202208-202406

9017906274

main90179-06274

5 parts on this diagram · 2 diagrams in section
