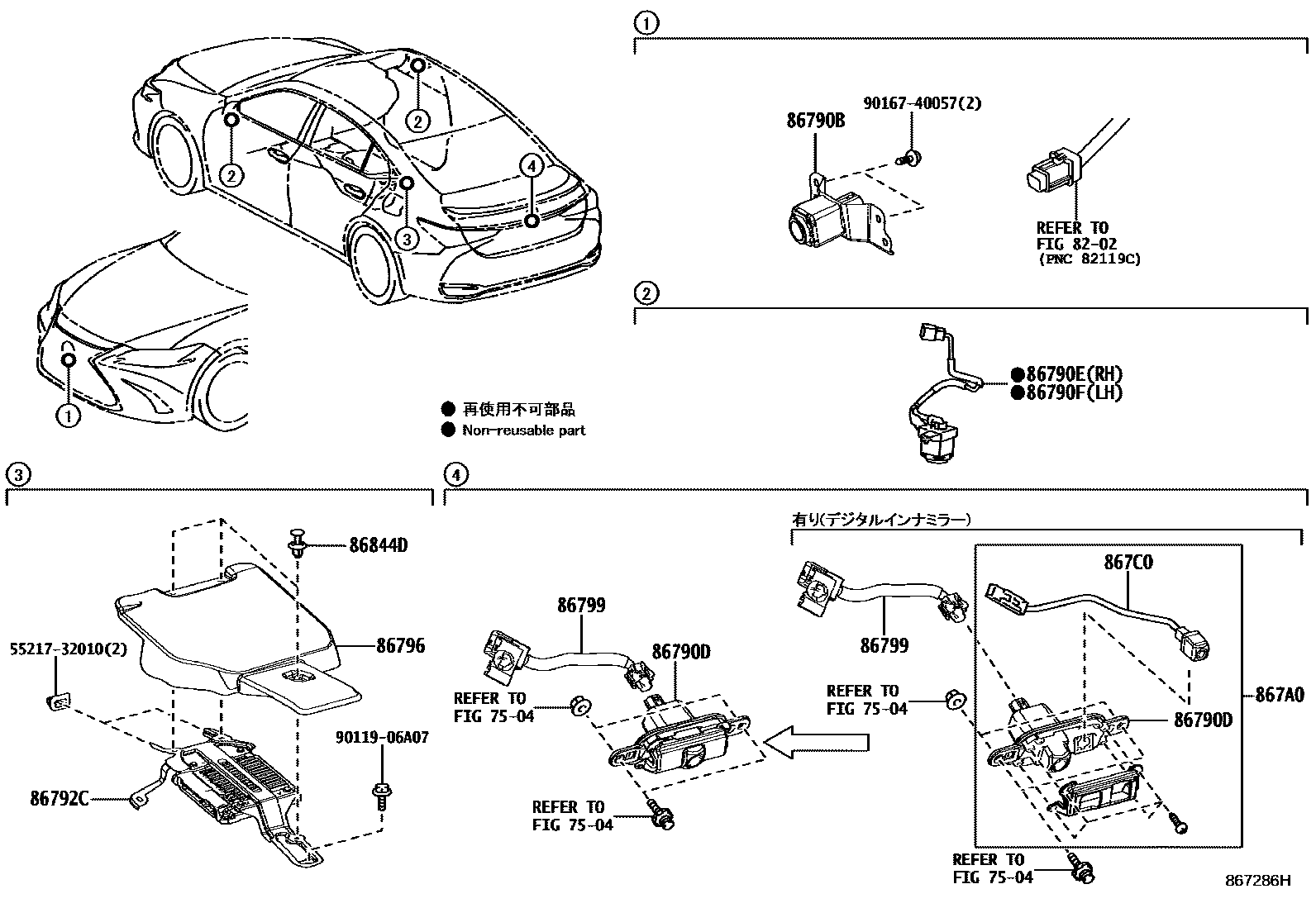

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

7504REAR MOULDING

→ Go to FIG 75-04

8202WIRING & CLAMP

→ Go to FIG 82-02

86790BCAMERA ASSY, TELEVISION, FR

main86790-33330iAXZH11202208

main867B0-33100iAXZH10201810-202007

86790DCAMERA ASSY, TELEVISION, RR

main867B0-33300iAXZH11202208-202305

main86790-33340supersedes 867B0-33301iAXZH11202208

main867B0-33140iAXZH11202008-202108

main867B0-33180iAXZH10201810-202007

main867B0-33270supersedes 867D0-33030iAXZH11202108-202208

main867B0-33280supersedes 867D0-33030iAXZH11202108-202208

main867D0-33020supersedes 867D0-33010iAXZH1#201810-202108

main867D0-33040supersedes 867D0-33030iAXZH11202108-202208

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-33300iAXZH11202208

main86790-33320iAXZH11202208

main867B0-33200iAXZH11202008-202108

main867B0-50130iAXZH11202008-202108

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-33290iAXZH11202208

main86790-33310iAXZH11202208

main867B0-33190iAXZH10201810-202007

main867B0-50120iAXZH10201810-202007

86792CCOMPUTER, PARKING ASSIST

main86792-33140iAXZH10201810-201907

main86792-33141iAXZH11202008-202108

main86792-33150iAXZH10201810-201907

main86792-33151iAXZH10201907-202007

main86792-33360iAXZH11202108-202208

main86792-33370iAXZH11202108-202208

main86792-33470iAXZH11202208-202211

main86792-33471iAXZH11202212

main86792-33490iAXZH11202208-202211

main86792-33491iAXZH11202212-202402

86796COVER, COMPUTER PARKING ASSIST

main86796-33010-C0iAXZH11202008-202108

main86796-33010-E0iAXZH11202008-202108

86799WIRE, TELEVISION CAMERA

main86799-33050iAXZH1#201810-202108

main86799-33060supersedes 86799-33050iAXZH11202108-202208

main86799-33100supersedes 86799-33090iAXZH11202208

main86799-33110supersedes 86799-33090iAXZH11202208

main86799-33120supersedes 86799-33090iAXZH11202208

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-33050iAXZH11202008-202108

main867A0-33060iAXZH11201810-202108

main867A0-33070iAXZH11202108-202208

main867A0-33080iAXZH11202108-202208

main867A0-33100iAXZH11202208

main867A0-33110iAXZH11202208

867C0CAMERA ASSY, INNER MIRROR

main867C0-33010iAXZH10201810-202007

main867C0-33040iAXZH11202108-202208

86844DRETAINER, NAVIGATION COMPUTER COVER

main86844-33010-C1×3iAXZH11202008-202108

main86844-33010-E2×3iAXZH11202008-202108

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010

9011906A07

main90119-06A07

9016740057

main90167-40057

15 parts on this diagram · 2 diagrams in section
