ANTENNA
86050GANTENNA ASSY, TELEVISION, NO.1 RH
86050HANTENNA ASSY, TELEVISION, NO.1 LH
86050JANTENNA ASSY, TELEVISION, NO.2 RH
86050KANTENNA ASSY, TELEVISION, NO.2 LH
86077COVER KIT, ANTENNA
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
ICE ECRU M.M.,4X8
SUNLIGHT GREEN M.M.,6X0
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
86101CORD SUB-ASSY, ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101SCORD SUB-ASSY, ANTENNA
86300BANTENNA ASSY, AMPLIFIER, NO.1
86300CANTENNA ASSY, AMPLIFIER, NO.2
86760AANTENNA ASSY, TELEPHONE
86769HOUSING, ROOF ANTENNA
8621433020BRACKET, RADIO, NO.4
main86214-33020
9011906A07
main90119-06A07
9017906274
main90179-06274

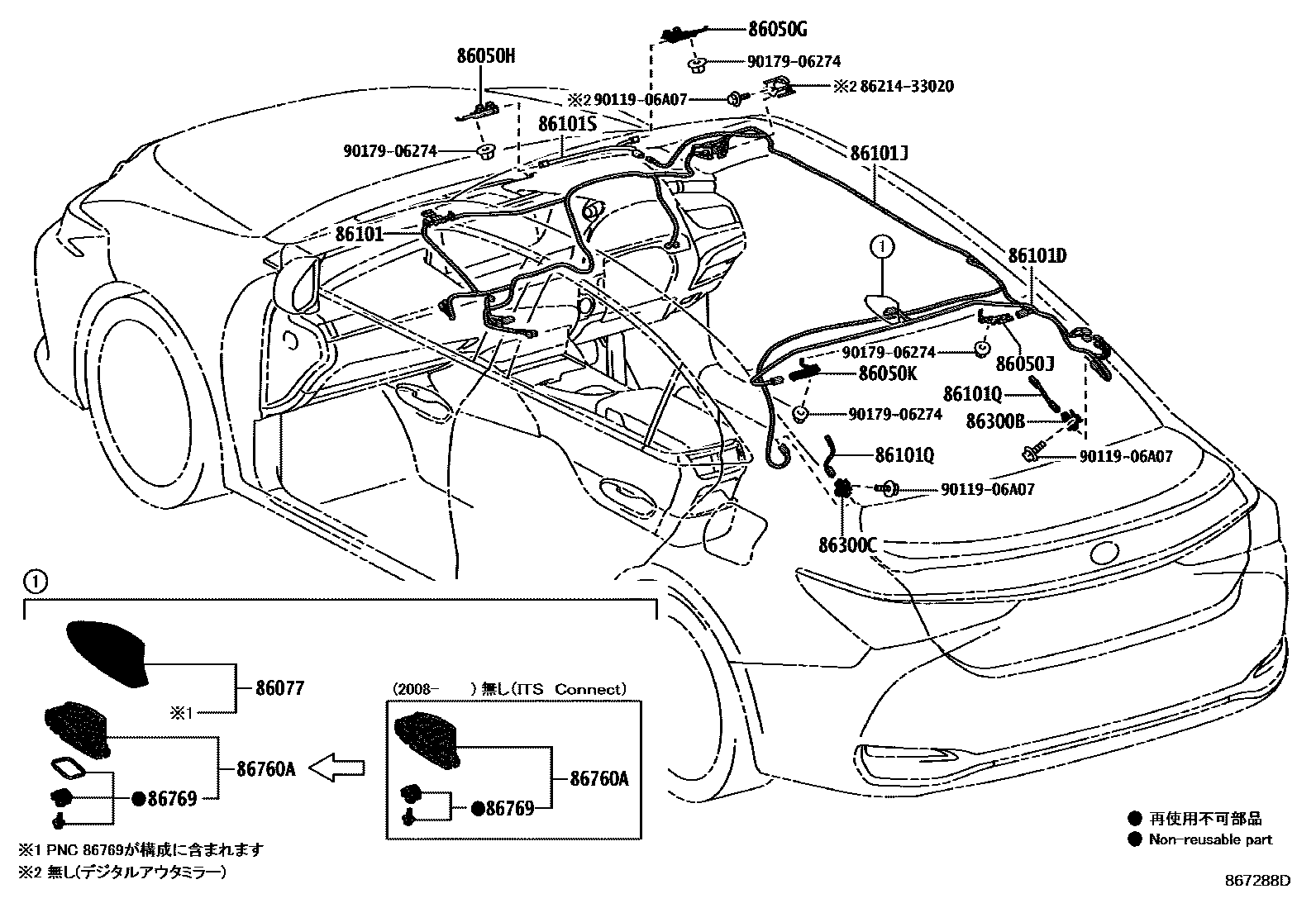

17 parts on this diagram · 1 diagram in section
