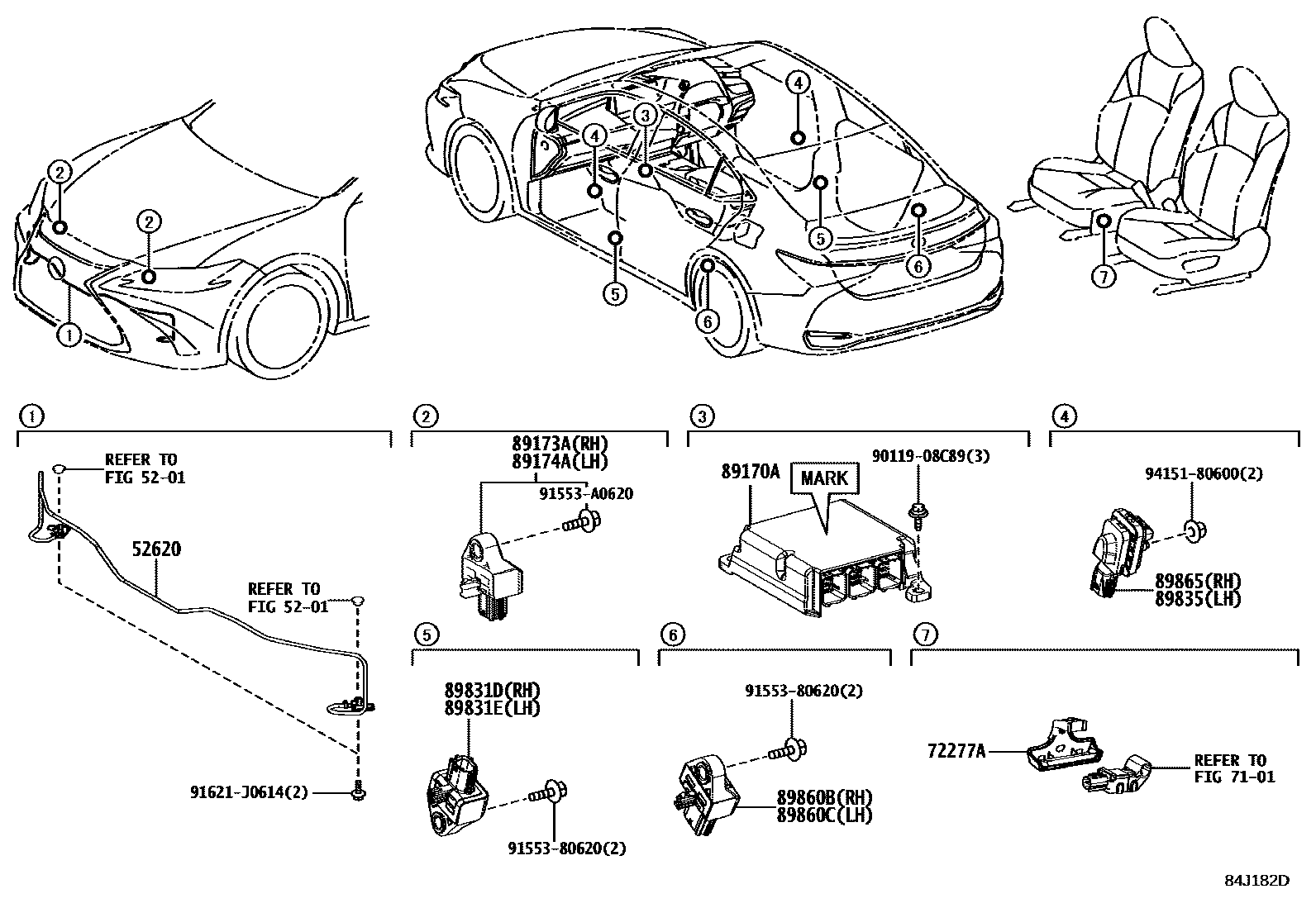

AIR BAG

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-50010iAXZH11202108

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-47050iAXZH1#201810-202108

89170ACOMPUTER ASSY, AIRBAG

main89170-33E00supersedes 89170-33D50iAXZH10201810-202007

main89170-33K30supersedes 89170-33N50iAXZH11202008-202108

main89170-33P50supersedes 89170-33N50iAXZH11202108-202202

main89170-33P51supersedes 89170-33N51iAXZH11202202-202208

main89170-33T20supersedes 89170-33S20iAXZH11202208

89173ASENSOR, AIRBAG, FRONT RH

main89173-49495iAXZH11202202-202208

main89173-49505iAXZH11202108-202202

89174ASENSOR, AIRBAG, FRONT LH

main89173-49495iAXZH1#201810-202108

main89173-49505iAXZH11202208

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-42060iAXZH11202108-202202

main89831-47050iAXZH1#201810-202108

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-42060iAXZH11202108-202202

main89831-47050iAXZH11202202-202208

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-33010iAXZH1#201810-202012

main8983A-33011iAXZH11202101-202108

main8983A-52011iAXZH11202108

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-28030iAXZH11202202-202208

main89831-42050iAXZH11202108-202202

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-28030iAXZH11202202-202208

main89831-42050iAXZH11202108-202202

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-33010iAXZH1#201810-202012

main8983A-33011iAXZH11202101-202108

main8983A-52011iAXZH11202108

9011908C89

main90119-08C89

9155380620

main91553-80620

91553A0620

main91553-A0620

91621J0614

main91621-J0614

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section
