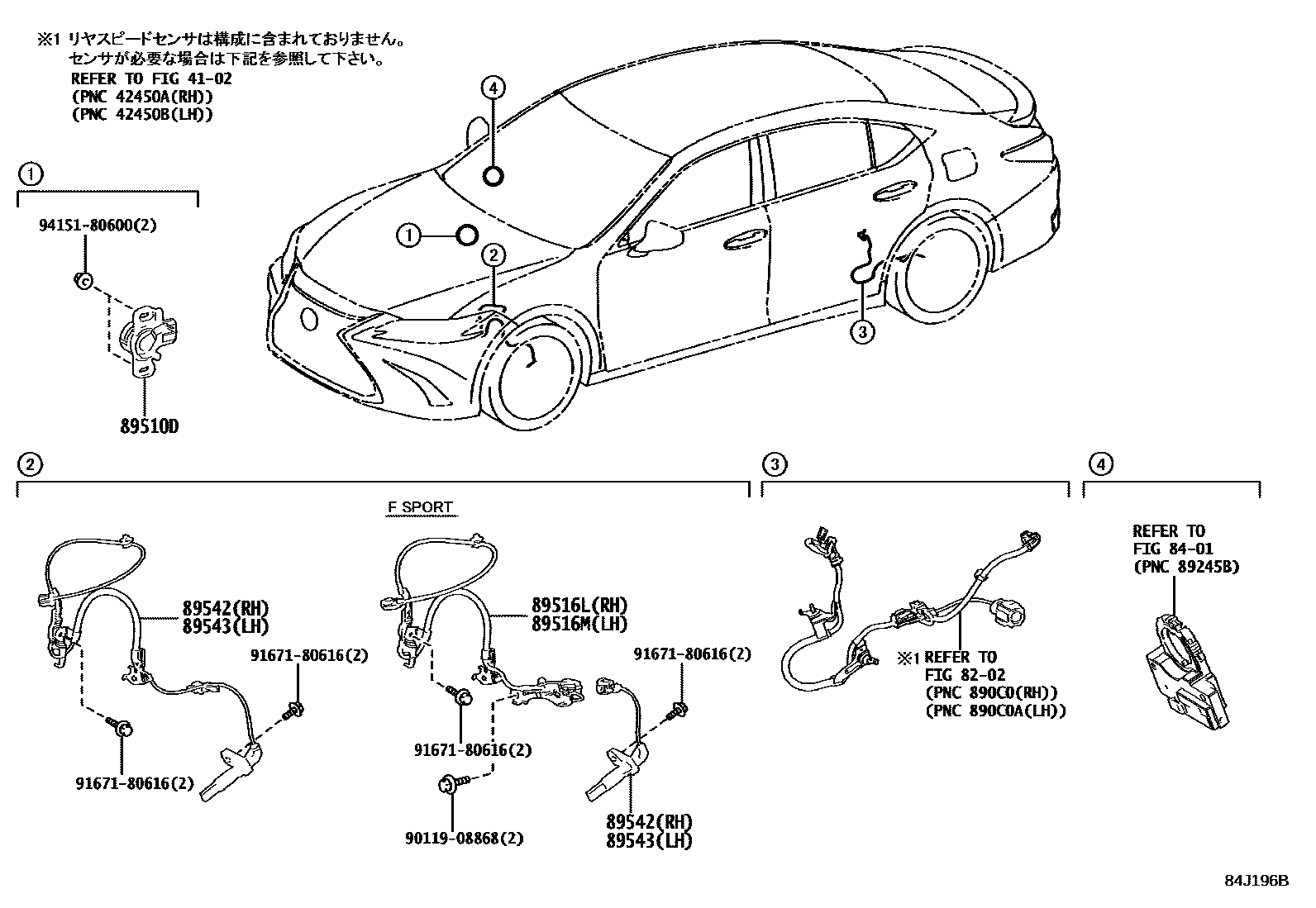

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iAXZH1#201810-202108

89516LWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, RH

main89516-33111iAXZH10201810-202007

89516MWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, LH

main89516-33121iAXZH10201810-202007

89542SENSOR, SPEED, FRONT RH

main89542-33151supersedes 89542-33160iAXZH1#201810-202108

89543SENSOR, SPEED, FRONT LH

main89543-33141supersedes 89543-33150iAXZH1#201810-202108

9011908868

main90119-08868

9167180616

main91671-80616

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
