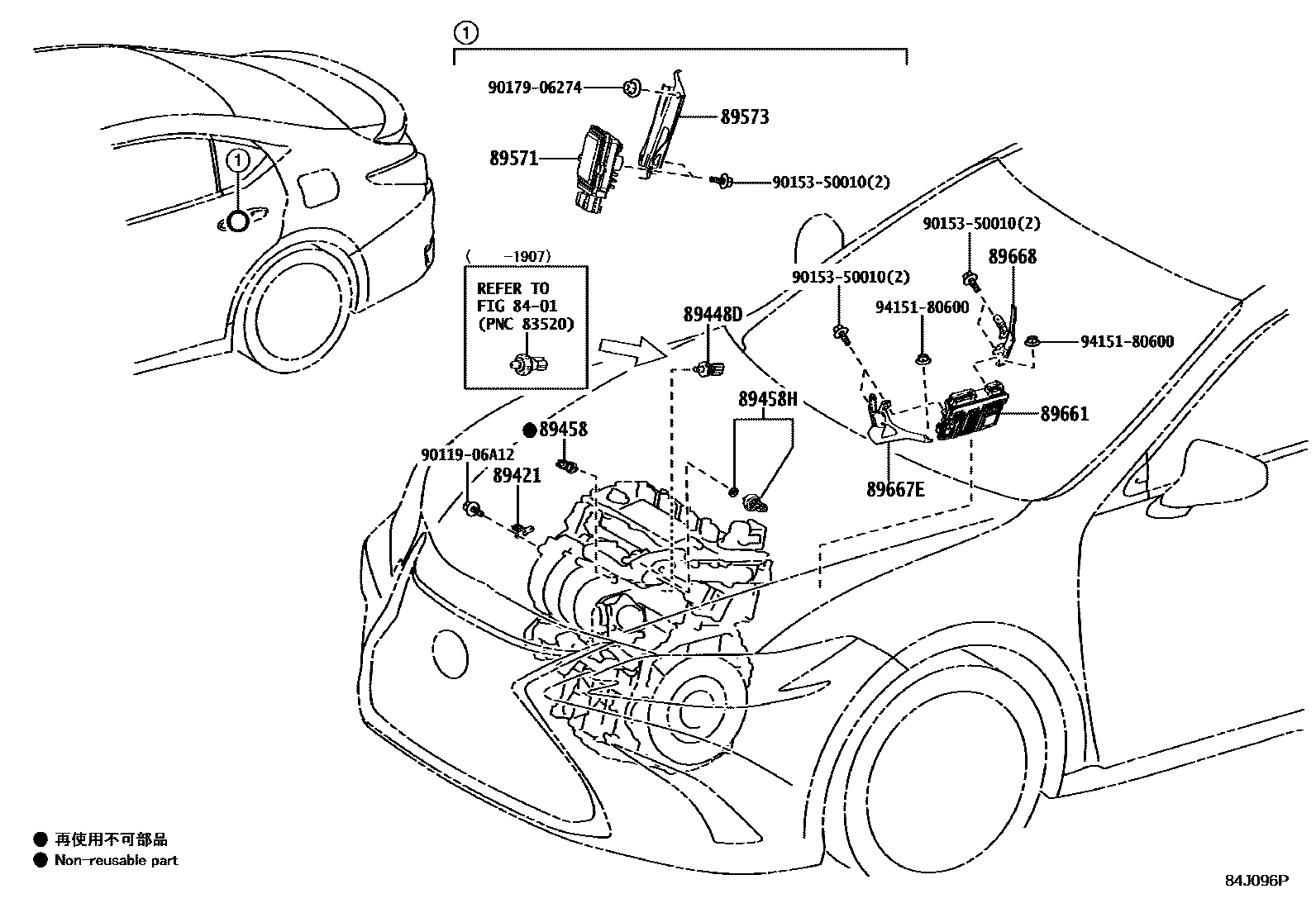

ELECTRONIC FUEL INJECTION SYSTEM

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXZH1#201810-202108

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAXZH1#201907-202108

89458SENSOR, FUEL PRESSURE

main89458-33030iAXZH1#201810-202108

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iAXZH1#201810-202108

main89458-33042iAXZH11202301

89571COMPUTER, FUEL PUMP CONTROL

main89571-33030iAXZH10201810-201911

main89571-42010iAXZH1#201911-202108

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-33040iAXZH10201810-201911

main89573-33070iAXZH1#201911-202108

89661COMPUTER, ENGINE CONTROL

main89661-33P30iAXZH10201810-201907

main89661-33Y90iAXZH10201907-202007

main89661-3TE20iAXZH11202008-202108

main89661-3TJ10iAXZH11202108-202402

main89661-3TJ11iAXZH11202403

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-33200iAXZH1#201810-202108

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33290iAXZH1#201810-202108

9011906A12

main90119-06A12

9015350010

main90153-50010

9017906274

main90179-06274

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
