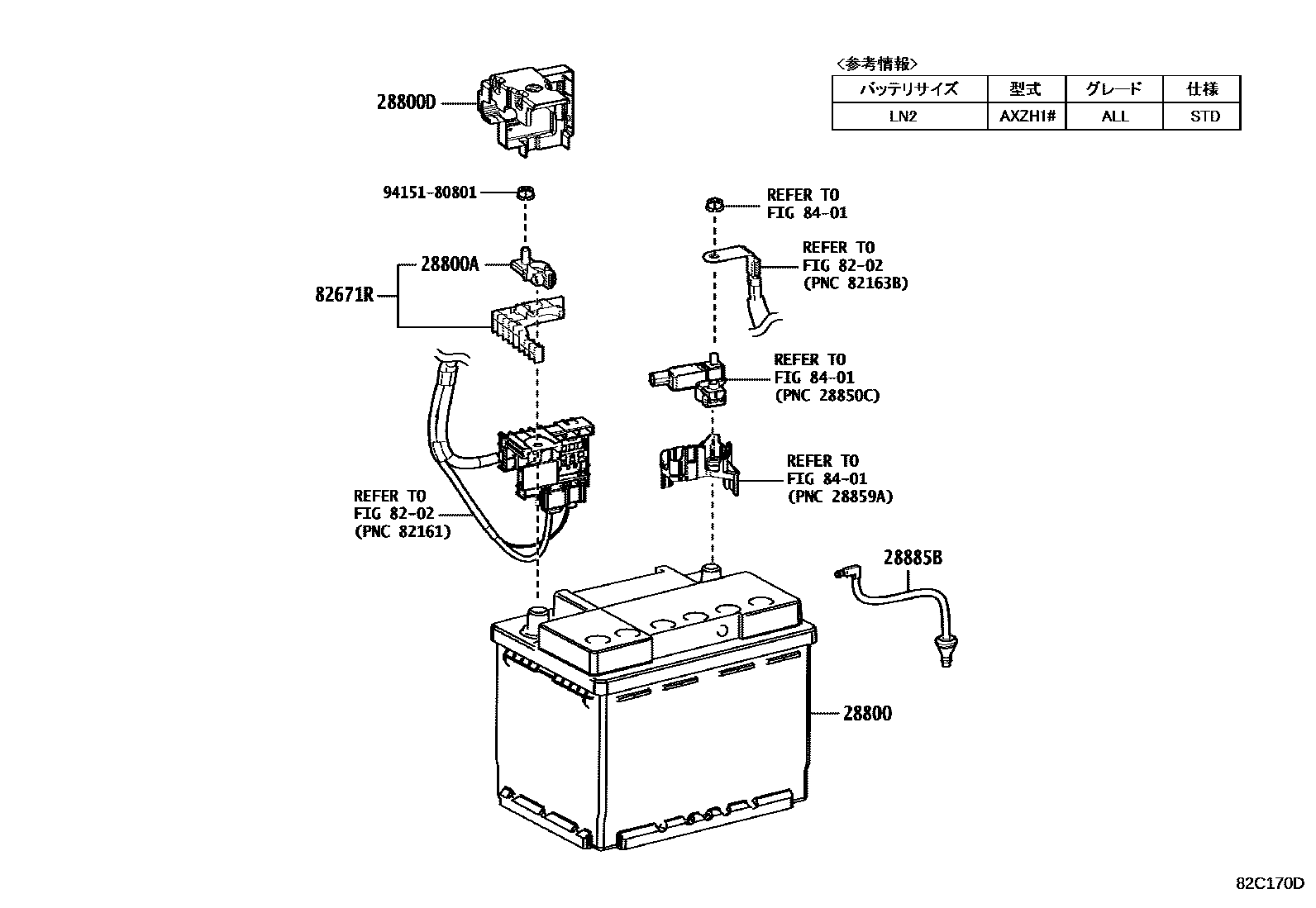

BATTERY & BATTERY CABLE

0001 112V ����� 0002 1HV ����� 1/3 0003 1HV ����� 2/3 0004 1HV ����� 3/3 0005 1HV ����� 1/3 0006 1HV ����� 2/3 0007 1HV ����� 3/3

28800BATTERY

main28800-36191iA25AFXS..AXZH1#201810-202108

main28800-36192iA25AFXS..AXZH11202303

28800ATERMINAL, BATTERY POSITIVE

main90982-05053iA25AFXS..AXZH11202108

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-33020iA25AFXS..AXZH1#202001-202108

main82621-33030iA25AFXS..AXZH10201810-201912

28885BHOSE, BATTERY

main28885-25010iA25AFXS..AXZH1#201810-202108

8202WIRING & CLAMP

→ Go to FIG 82-02

82671RSTOPPER, BATTERY TERMINAL

main82670-33140iAXZH1#201810-202108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

8 parts on this diagram · 7 diagrams in section
