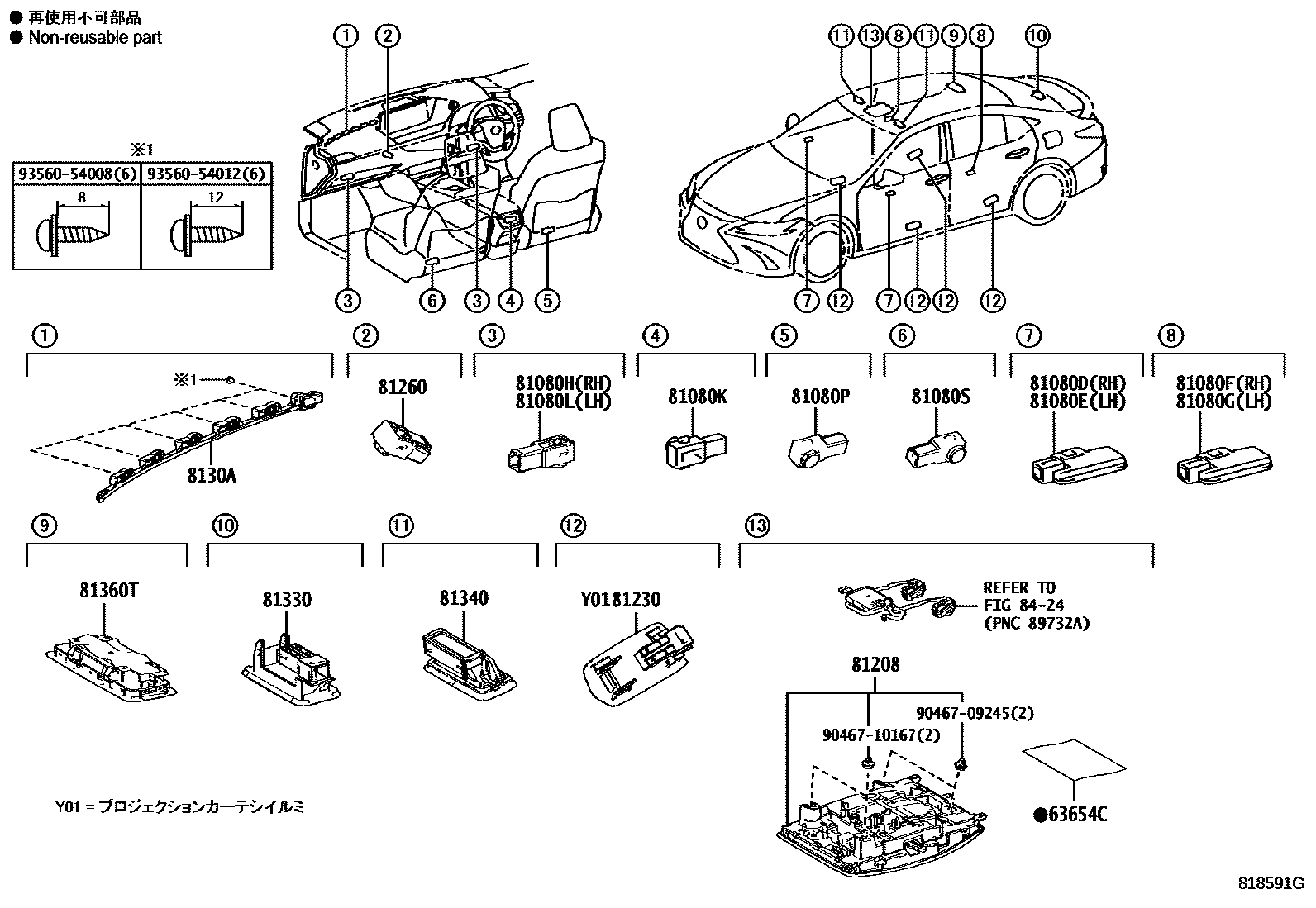

INTERIOR LAMP
63654CCOVER, ROOF CONSOLE BOX, INNER
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81208LAMP SUB-ASSY, MAP
WHITE,TRIM1#,20,21,22,23
BLACK,TRIM24,25
NOBLE BROWN,TRIM5#,6#
WHITE,TRIM1#,21,22,23
WHITE,TRIM21,22,23,6#
BLACK,TRIM24,25,26,7#
BLACK,TRIM24,25
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM4#
WHITE,TRIM0#,21,22,23,6#
BLACK,TRIM24,25,26,3#,7#
HAZEL,TRIM4#
81230LAMP ASSY, COURTESY
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81340LAMP ASSY, VANITY
81360TLAMP ASSY, SPOT
WHITE,TRIM0#,21,22,23,6#
WHITE,TRIM1#,21,22,23
BLACK,TRIM24,25
BLACK,TRIM24,25,26,3#,7#
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM4#
8424ANTI-THEFT DEVICE
9046709245
main90467-09245
9046710167
main90467-10167
9356054008
main93560-54008
9356054012
main93560-54012
22 parts on this diagram · 1 diagram in section
