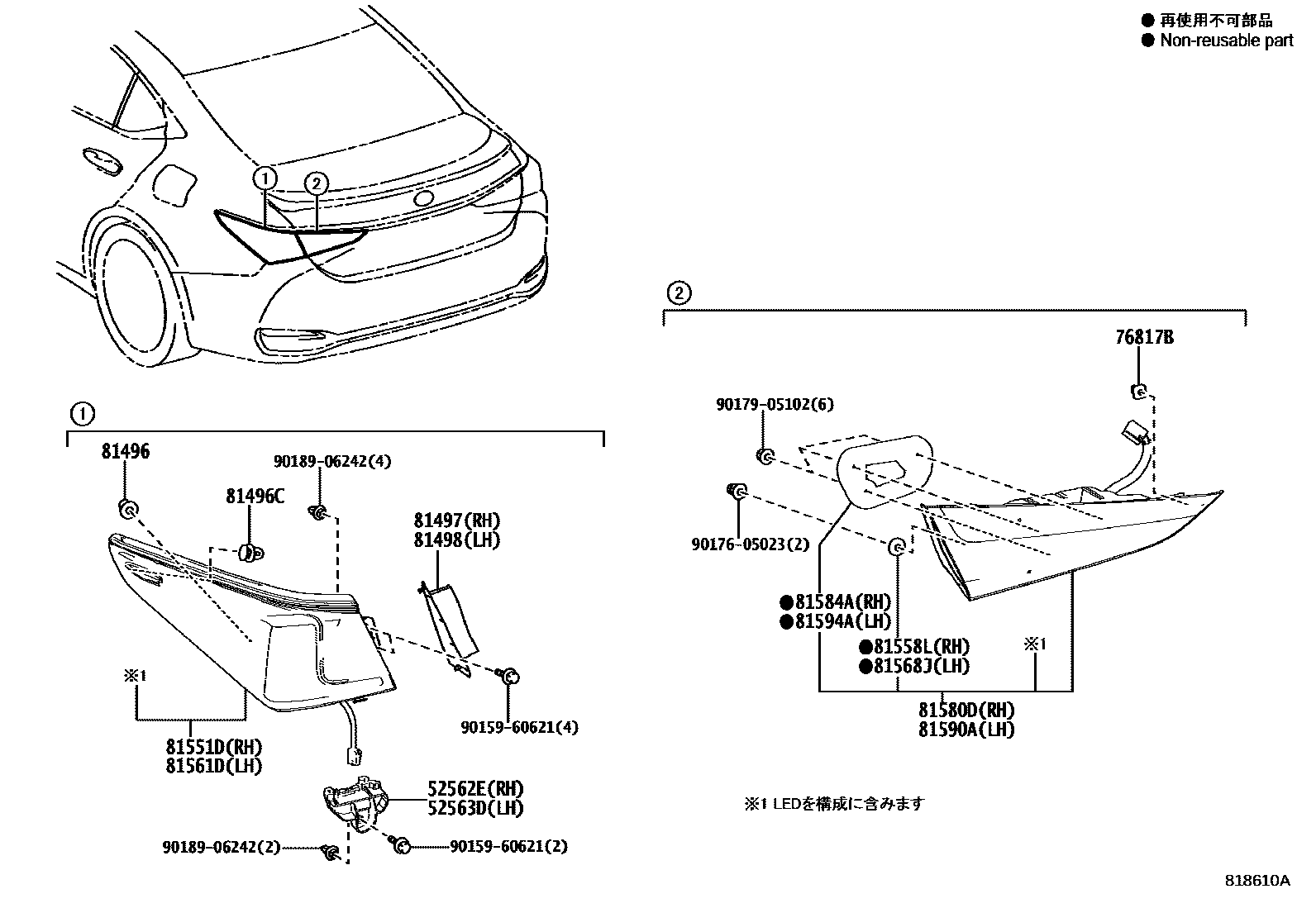

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-33070iAXZH1#201810-202108

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-33050iAXZH1#201810-202108

76817BCLIP, REAR LAMP

main76817-26040iAXZH1#201810-202108

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iAXZH1#201810-202108

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iAXZH1#201810-202108

81497COVER, REAR COMBINATION LAMP, RH

main81497-33030iAXZH1#201810-202108

81498COVER, REAR COMBINATION LAMP, LH

main81498-33030iAXZH1#201810-202108

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-33590iAXZH10201810-201908

sub81551-33591

main81551-33591iAXZH1#201908-202104

sub81550-33592

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24040iAXZH1#201810-202108

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-33590iAXZH10201810-201908

sub81561-33591

main81561-33591iAXZH1#201908-202104

sub81560-33592

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81558-24040iAXZH1#201810-202108

81580DLAMP ASSY, REAR, RH

main81580-33480iAXZH10201810-201907

sub81580-33481

main81580-33481iAXZH1#201908-202009

sub81580-33482

main81580-33482iAXZH11202010-202108

81584AGASKET, REAR LAMP RH

main81584-33470iAXZH1#201810-202108

81590ALAMP ASSY, REAR, LH

main81590-33480iAXZH10201810-201907

sub81590-33481

main81590-33481iAXZH1#201908-202009

sub81590-33482

main81590-33482iAXZH11202010-202108

81594AGASKET, REAR LAMP LH

main81594-33470iAXZH1#201810-202108

9015960621

main90159-60621

9017605023

main90176-05023

9017905102

main90179-05102

9018906242

main90189-06242

19 parts on this diagram · 2 diagrams in section
