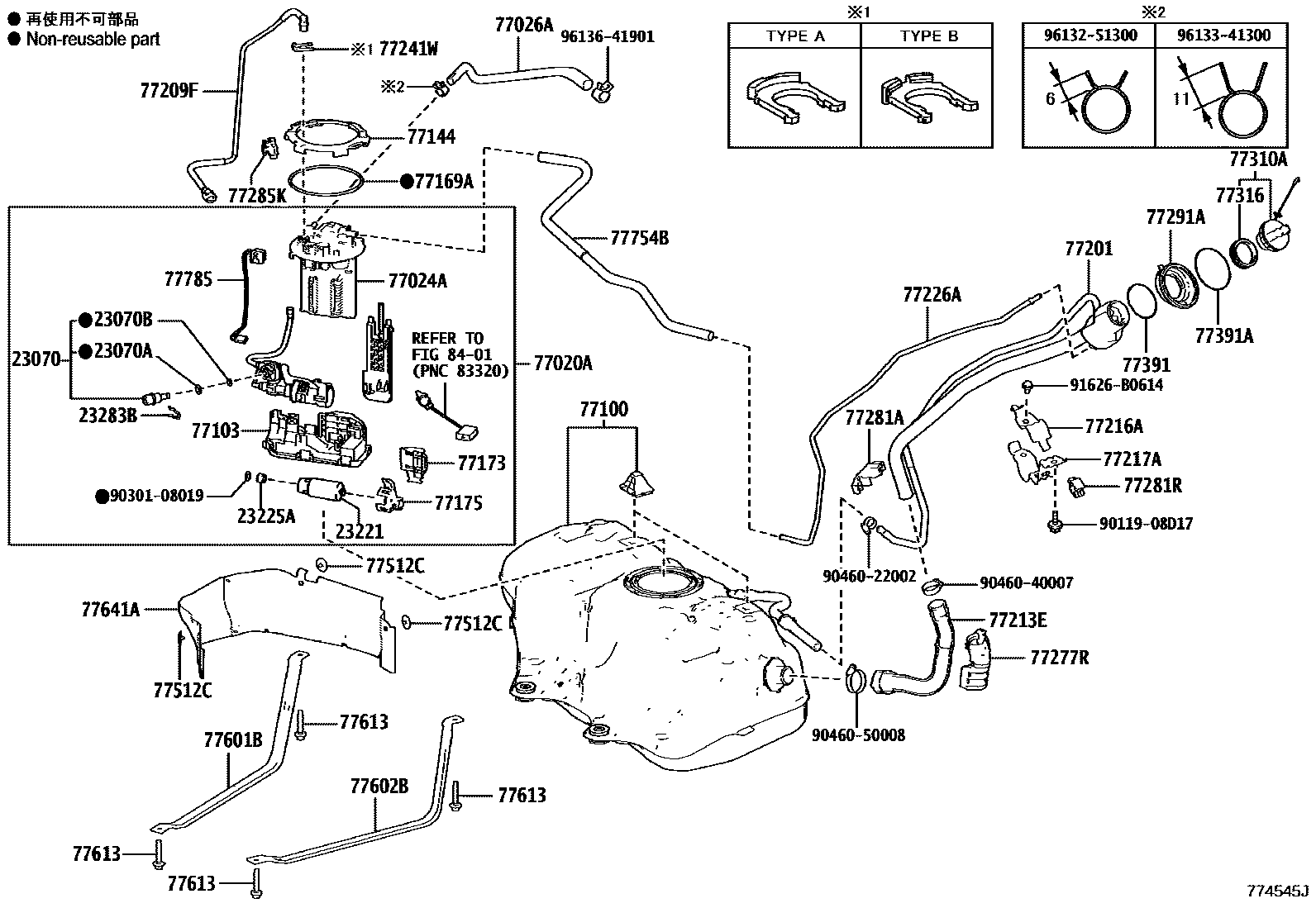

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ��� 0004 1����� ����� 0005 1��������������

23070VALVE ASSY, FUEL MAIN

main23070-25020iA25AFXS..AXZH1#201912-202108

main23070-36010iA25AFXS..AXZH10201810-201912

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-04013iA25AFXS..AXZH10201810-201912

23070BRING, O, NO.2(FOR FUEL MAIN VALVE)

main90301-15024iA25AFXS..AXZH1#201810-202108

23221PUMP, FUEL

main23221-25030iA25AFXS..AXZH11202108

23225ASPACER, FUEL PUMP

main23225-31020iA25AFXS..AXZH1#201810-202108

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-24010iA25AFXS..AXZH1#201912-202108

main23283-36010iA25AFXS..AXZH10201810-201912

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-33510iAXZH10201810-201911

main77020-33511iAXZH11202108

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-33340iAXZH10201810-201912

main77024-33420iAXZH1#201912-202108

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-33040iAXZH11202209

main77026-33050iAXZH1#201810-202108

77100TANK ASSY, FUEL

main77001-33390iAXZH1#201810-202108

main77001-33410iAXZH11202208-202210

main77001-33600iAXZH11202209

77103SUB-TANK SUB-ASSY, FUEL

main77103-12150iAXZH1#201912-202108

main77103-33060iAXZH10201810-201912

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAXZH11202108

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iAXZH11202108-202208

main77169-47040iAXZH11202208

77173BRACKET, FUEL GAGE

main77173-12010iAXZH1#201912-202108

77175SUPPORT, FUEL SUCTION, NO.2

main77175-12030iAXZH11202108

main77175-33030iAXZH10201810-201912

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-33380iAXZH11202208

main77201-33530iAXZH11202108-202208

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-33140iAXZH1#201810-202108

main77209-33171iAXZH11202208

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-33130iAXZH11202108-202208

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-33190iAXZH11202208

main77216-33200iAXZH11202108-202208

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-33130iAXZH11202208

main77217-33140iAXZH1#201810-202108

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-33200iAXZH11202208

main77226-33210iAXZH11202108-202208

77241WCLIP, TUBE JOINT

main77241-33011iAXZH1#201810-202108

main77241-60550iAXZH11202209

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-33110iAXZH11202108

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-33080iAXZH1#201810-202108

77281ACLAMP, FUEL FILLER PIPE

main77281-33050iAXZH1#201810-202108

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77281-30110iAXZH1#201810-202108

77285KCLAMP, FUEL TUBE, NO.1

main77285-30350iAXZH1#201810-202108

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33110iAXZH1#201810-202108

77310ACAP ASSY, FUEL TANK

main77300-12020iAXZH1#201810-202108

main77300-48020iAXZH11202208

77316GASKET, FUEL TANK CAP

main77316-52040iAXZH11202108-202208

main77316-75020iAXZH11202208

77391RING, FUEL INLET BOX

main77391-12020iAXZH1#201810-202108

77391ARING, FUEL INLET BOX

main77391-20040iAXZH10201810-201912

main77391-33060iAXZH11202108

77512CBRACKET, FUEL TANK

main77512-35140×3iAXZH1#201810-202108

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33180iAXZH1#201810-202108

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33190iAXZH1#201810-202108

77613BOLT, FUEL TANK BAND SET

main90119-10995×4iAXZH1#201810-202108

77641APROTECTOR, FUEL TANK, NO.1

main77606-33030iAXZH1#201810-202108

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-33080iAXZH1#201810-202108

77785HARNESS, FUEL PUMP

main77785-33180iAXZH1#201810-202108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908D17

main90119-08D17

9030108019

main90301-08019

9046022002

main90460-22002

9046040007

main90460-40007

9046050008

main90460-50008

91626B0614

main91626-B0614

9613251300

main96132-51300

9613341300

main96133-41300

9613641901

main96136-41901

49 parts on this diagram · 5 diagrams in section
