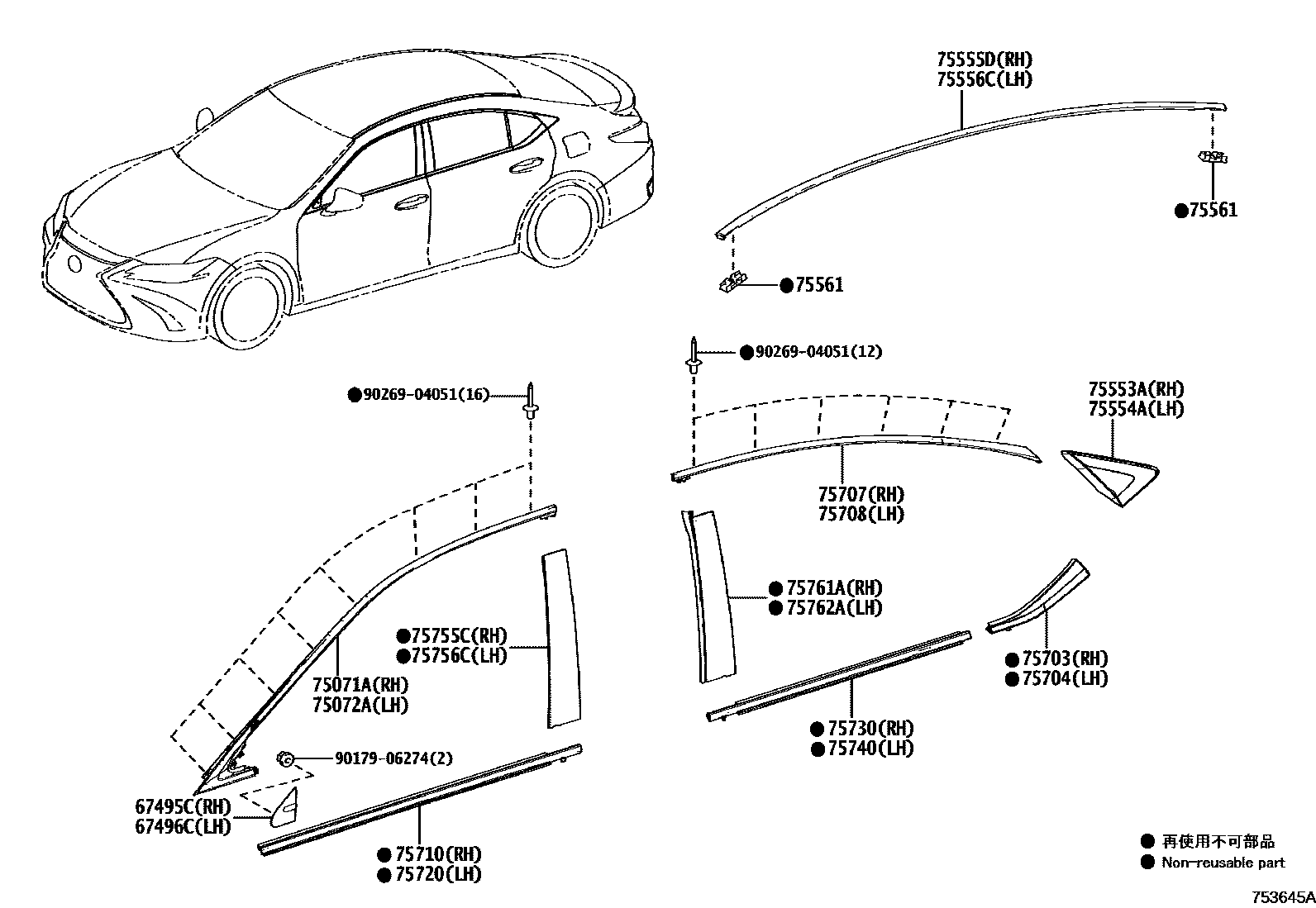

SIDE MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
ICE ECRU M.M.,4X8
SUNLIGHT GREEN M.M.,6X0
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
ICE ECRU M.M.,4X8
SUNLIGHT GREEN M.M.,6X0
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75703MOULDING SUB-ASSY, REAR DOOR BELT, RH
75704MOULDING SUB-ASSY, REAR DOOR BELT, LH
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
9017906274
main90179-06274
9026904051
main90269-04051
23 parts on this diagram · 2 diagrams in section
