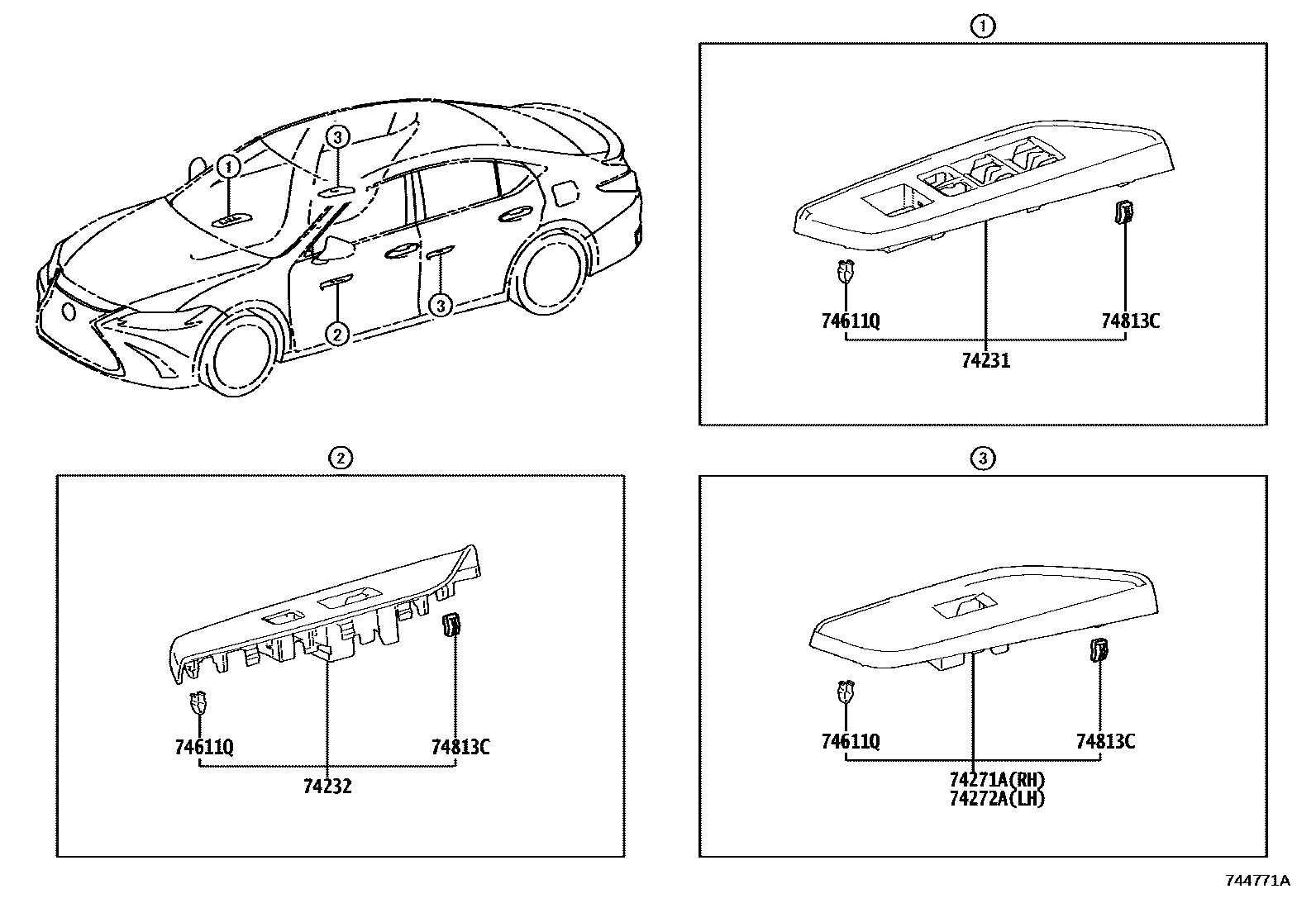

ARMREST & VISOR

0001 1������ 0002 1����� & ����������

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74230-33160supersedes 74230-33150iAXZH1#201810-202108

main74230-33190supersedes 74230-33180iAXZH11202108

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74240-33160iAXZH1#201810-202108

main74240-33190iAXZH11202108

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74270-33160iAXZH1#201810-202108

main74270-33180iAXZH11202108

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74280-33160iAXZH1#201810-202108

main74280-33180iAXZH11202108

74611QCLIP

main90467-05172×4iAXZH1#201810-202108

74813CCLIP

main90468-08048×4iAXZH11202108

6 parts on this diagram · 2 diagrams in section
