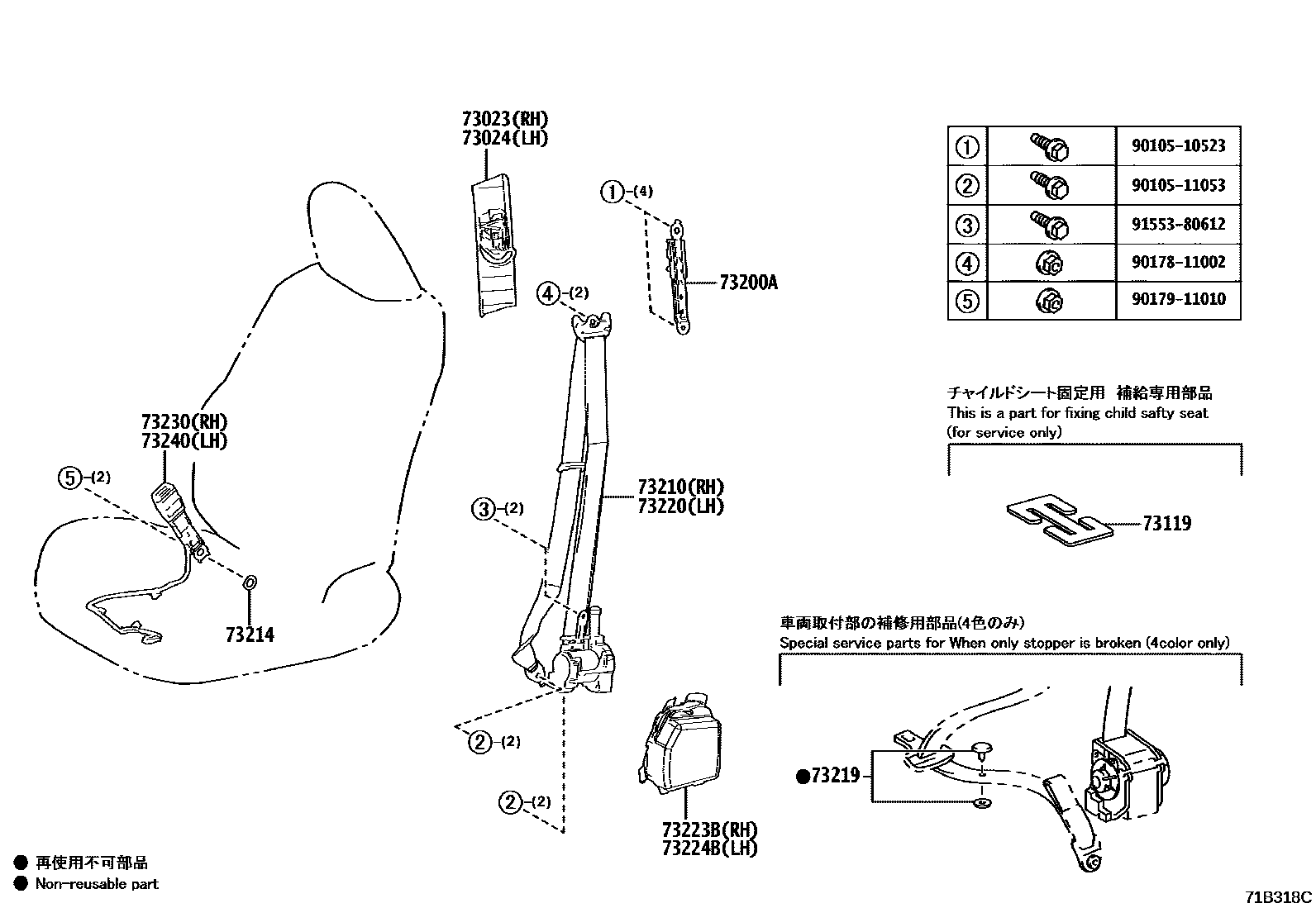

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-58010-A2iAXZH11202008-202108

L WHITE,TRIM1#,21,22,23

main73023-58010-C1iAXZH1#201810-202108

BLACK,TRIM24,25

main73023-58010-E2iAXZH1#201810-202108

NOBLE BROWN,TRIM5#,6#

main73023-58010-E4iAXZH11202108

HAZEL,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-58010-A2iAXZH11202108

L WHITE,TRIM0#,21,22,23,6#

main73024-58010-C1iAXZH11202108

BLACK,TRIM24,25,26,3#,7#

main73024-58010-E2iAXZH1#201810-202108

NOBLE BROWN,TRIM5#,6#

main73024-58010-E4iAXZH11202108

HAZEL,TRIM4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAXZH1#201810-202108

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iAXZH10201810-202007

main73200-42020×2iAXZH11202008-202108

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-33710-C0iAXZH11202108-202207

BLACK,TRIM0#,2#,3#,4#,6#,7#

main73210-33711-C0iAXZH11202208

BLACK,TRIM0#,2#,3#,4#,7#

main73210-50610-C1iAXZH1#201907-202108

BLACK/BLACK,TRIM24,25

main73210-50610-C2iAXZH10201810-201907

BLACK/WHITE,TRIM1#,21,22,23

main73210-50610-C3iAXZH10201810-201907

BLACK/BLACK,TRIM24,25

main73210-50610-C8iAXZH1#201907-202108

BLACK/WHITE,TRIM1#,21,22,23

main73210-50610-E1iAXZH1#201907-202108

NOBLE BROWN/NOBLE BROWN,TRIM5#,6#

main73210-50610-E3iAXZH10201810-201907

NOBLE BROWN/NOBLE BROWN,TRIM5#,6#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iAXZH1#201810-202108

73219STOPPER, TONGUE PLATE

main73219-33010iAXZH1#201810-202108

main73219-33020iAXZH1#201810-202108

main73219-33030iAXZH1#201810-202108

main73219-50010iAXZH11202108

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-33650-C2iAXZH11202108-202207

BLACK,TRIM0#,2#,3#,4#,6#,7#

main73220-33651-C2iAXZH11202208

BLACK,TRIM0#,2#,3#,4#,7#

main73220-50500-C1iAXZH1#201907-202108

BLACK/BLACK,TRIM24,25

main73220-50500-C2iAXZH10201810-201907

BLACK/WHITE,TRIM1#,21,22,23

main73220-50500-C3iAXZH10201810-201907

BLACK/BLACK,TRIM24,25

main73220-50500-C9iAXZH1#201907-202108

BLACK/WHITE,TRIM1#,21,22,23

main73220-50500-E1iAXZH1#201907-202108

NOBLE BROWN/NOBLE BROWN,TRIM5#,6#

main73220-50500-E3iAXZH10201810-201907

NOBLE BROWN/NOBLE BROWN,TRIM5#,6#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-33080iAXZH11202108

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-33030iAXZH1#201810-202108

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-33A20-C0iAXZH1#201810-202108

BLACK,TRIM1#,2#

main73230-33A20-E0iAXZH1#201810-202108

NOBLE BROWN,TRIM5#,6#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-33A50-C0iAXZH1#201810-202108

BLACK,TRIM1#,2#

main73230-33A50-E0iAXZH1#201810-202108

NOBLE BROWN,TRIM5#,6#

9010510523

main90105-10523

9010511053

main90105-11053

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

17 parts on this diagram · 2 diagrams in section
