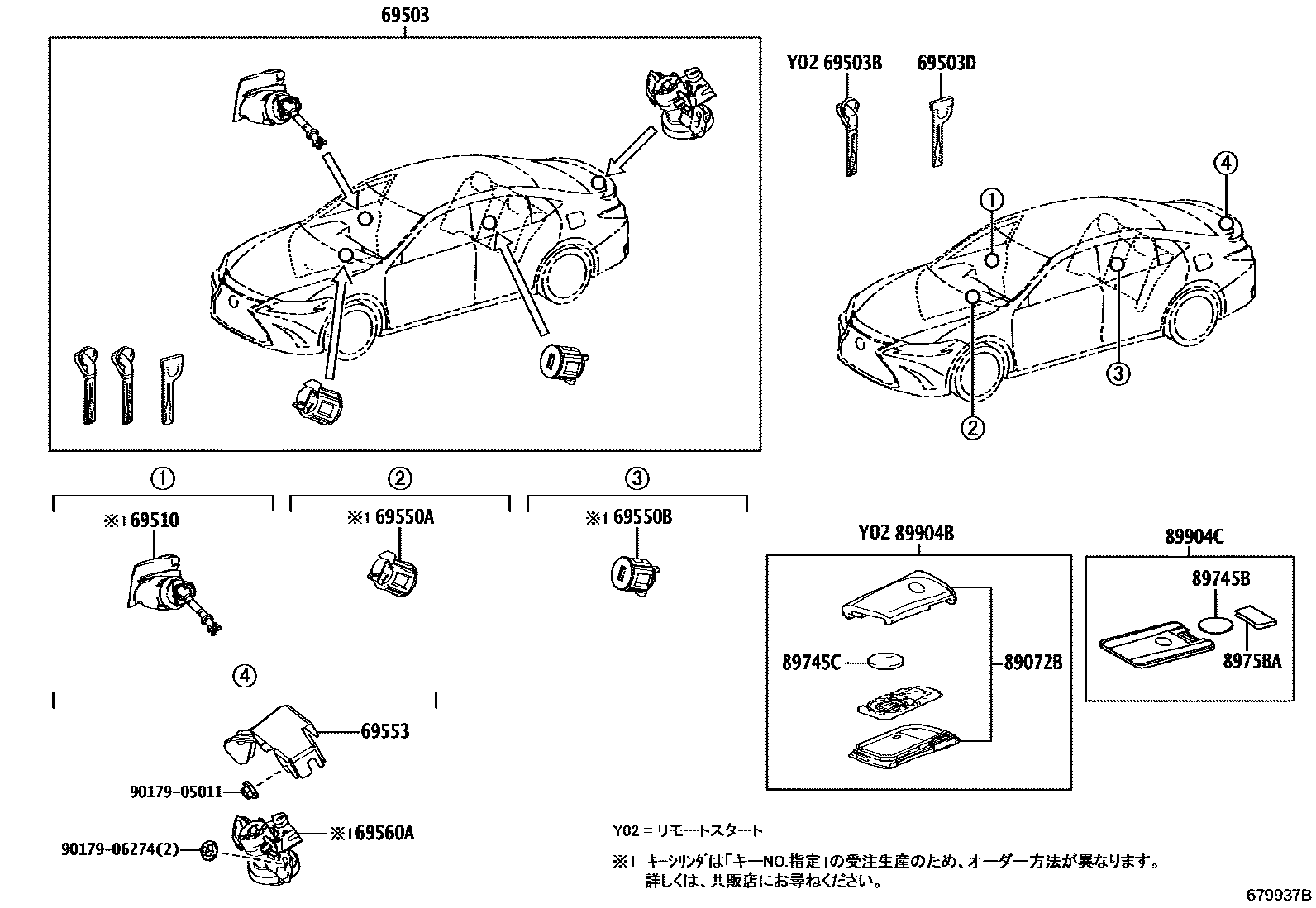

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-33E80iAXZH11202108

69503BKEY, CUT

main69515-33140×2iAXZH1#201810-202108

69503DKEY, CUT(CARD KEY)

main69515-30330iAXZH11202108

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-33310iAXZH10201810-202007

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iAXZH11202108

69550BCYLINDER ASSY, REAR SEAT CENTER ARMREST DOOR LOCK

main69550-50040iAXZH10201810-202007

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-30021iAXZH1#201810-202108

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-30370iAXZH10201810-202007

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-33E00×2iAXZH11202208

main89072-33E10×2iAXZH10201810-202007

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iAXZH1#201810-202108

89745CBATTERY, TRANSMITTER

main89745-45010iAXZH10201810-202007

main89745-50020iAXZH11202008-202108

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

main8975B-50030iAXZH1#201810-202108

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-33150×2iAXZH10201810-202007

main8990H-33180×2iAXZH11202208

main8990H-33500×2iAXZH11202008-202108

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main8990H-50200iAXZH10201810-202007

main8990H-76580iAXZH11202008-202108

main8990H-76B50iAXZH11202208

9017905011

main90179-05011

9017906274

main90179-06274

16 parts on this diagram · 1 diagram in section
