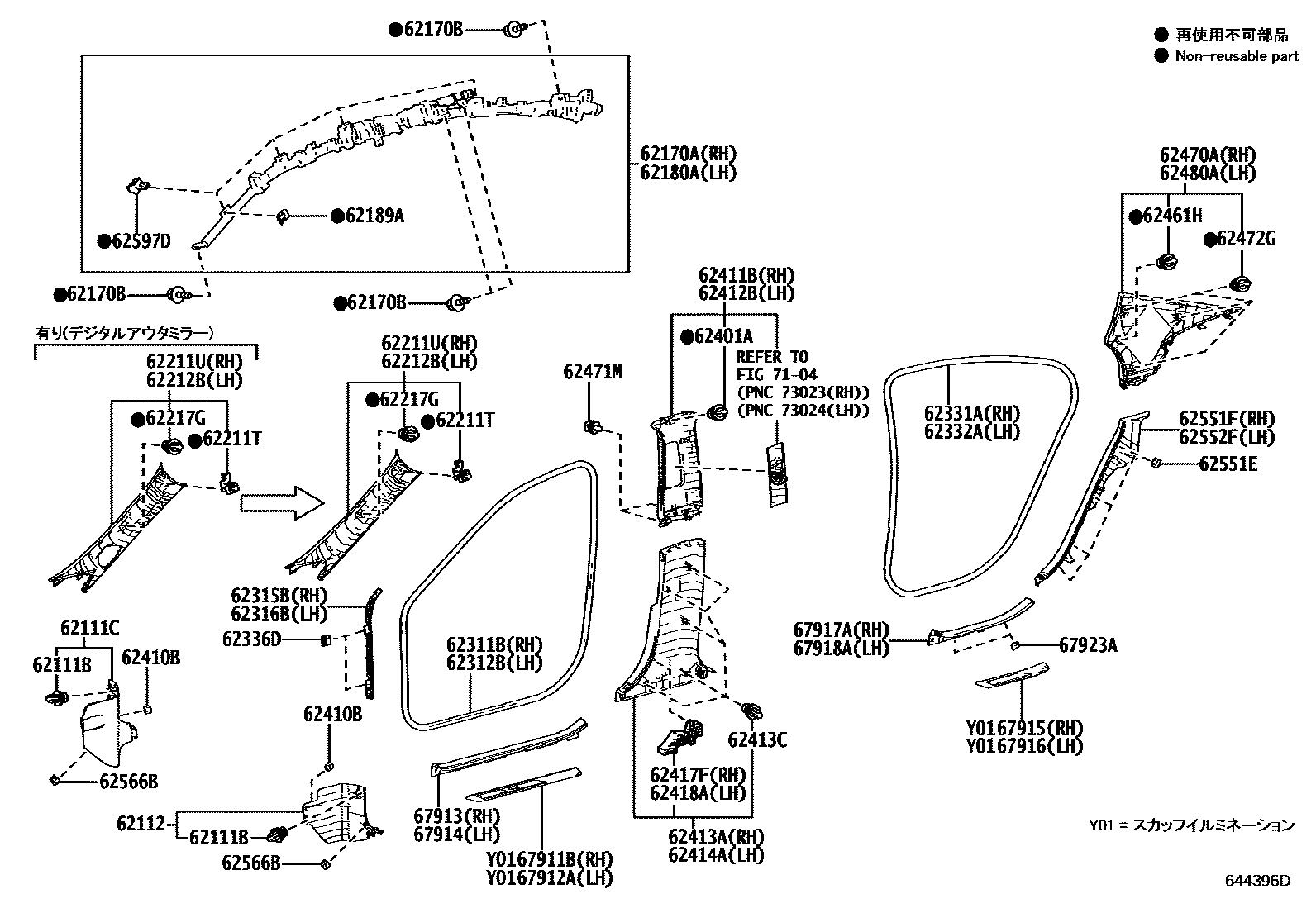

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161×2i201810-201811

main90467-10188×2i201812-202108

62111CBOARD, COWL SIDE TRIM, RH

main62111-33100-C0i201810-202108

BLACK,TRIM1#,2#

main62111-33100-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

62112BOARD, COWL SIDE TRIM, LH

main62112-33130-C0i202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main62112-33130-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-33150i201810-202108

62170BBOLT, W/WASHER

main91673-80616×8i201810-202108

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-33130i201810-202108

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010×2i201810-202108

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-11020×2i202108-202310

main62217-48020×2i202311

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-33290-C1supersedes 62210-33270-C1i202108

main62210-33290-E1supersedes 62210-33270-E1i201810-202108

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-33280-C1supersedes 62220-33270-C1i201810-202108

main62220-33280-E1supersedes 62220-33270-E1i201810-202108

62217GCLIP, FRONT PILLAR GARNISH

main90467-10161×2i201810-202108

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-33130i201810-202108

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-33130i201810-202108

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-33040-C0i202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main62315-33040-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-33050-C0i202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main62316-33050-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-33150i201810-202108

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-33150i201810-202108

62336DCLAMP

main62566-48020×4i201810-202108

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167×2i201810-202108

62410BCLIP

main90467-06147×2i201810-202108

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-33220-A1i201810-202104

L WHITE,TRIM1#,21,22,23

main62410-33220-C2i201810-202104

BLACK,TRIM24,25

main62410-33220-E2i201810-202104

NOBLE BROWN,TRIM5#,6#

main62410-33221-A1i202105-202108

L WHITE,TRIM1#,21,22,23

main62410-33221-C2i202105-202108

BLACK,TRIM24,25

main62410-33221-E2i202105-202108

NOBLE BROWN,TRIM5#,6#

main62410-33221-E3i202108

HAZEL,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-33240-A1i201810-202104

L WHITE,TRIM1#,21,22,23

main62420-33240-C2i201810-202104

BLACK,TRIM24,25

main62420-33240-E2i201810-202104

NOBLE BROWN,TRIM5#,6#

main62420-33241-A1i202105-202108

L WHITE,TRIM1#,21,22,23

main62420-33241-C2i202108

BLACK,TRIM24,25,26,3#,7#

main62420-33241-E2i202105-202108

NOBLE BROWN,TRIM5#,6#

main62420-33241-E3i202108

HAZEL,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-33150-C0i201810-202108

BLACK,TRIM1#,2#

main62413-33150-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×10i201810-202108

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-33140-C0i201810-202108

BLACK,TRIM1#,2#

main62414-33140-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

62417FPAD, CENTER PILLAR GARNISH, RH

main62417-33050i202108

62418APAD, CENTER PILLAR GARNISH, LH

main62418-33050i201810-202108

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-10167×2i201810-202108

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-33230-A1i201810-202007

LWHITE,TRIM1#,20,21,22,23

main62470-33230-C1i202108

BLACK,TRIM24,25,26,3#,7#

main62470-33230-E1i201810-202108

NOBLE BROWN,TRIM5#,6#

main62470-33230-E4i202108

HAZEL,TRIM4#

62471MCLIP

main90467-10216×4i201810-202108

62472GCLIP (FOR ROOF SIDE GARNISH)

main67771-28150×6i201810-202108

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-33230-A1i202008-202009

LWHITE,TRIM1#,21,22,23

main62480-33230-C1i201810-202009

BLACK,TRIM24,25

main62480-33230-E1i201810-202009

NOBLE BROWN,TRIM5#,6#

main62480-33231-A1i202108

LWHITE,TRIM0#,21,22,23,6#

main62480-33231-C1i202010-202108

BLACK,TRIM24,25

main62480-33231-E1i202010-202108

NOBLE BROWN,TRIM5#,6#

main62480-33231-E4i202108

HAZEL,TRIM4#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main62566-48020×8i201810-202108

62551FGARNISH, REAR SEAT SIDE, RH

main62551-33130-C0i201810-202108

BLACK,TRIM1#,2#

main62551-33130-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-33180-C0i201810-202108

BLACK,TRIM1#,2#

main62552-33180-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-48020×2i201810-202108

62597DCLIP

main90467-18017×8i201810-202108

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-33150-C0i201810-202108

BLACK,TRIM1#,2#

main67911-33150-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-33150-C0i201810-202108

BLACK,TRIM1#,2#

main67912-33150-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-33180-C0i202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main67913-33180-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-33180-C0i201810-202108

BLACK,TRIM1#,2#

main67914-33180-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-33160-C0i201810-202108

BLACK,TRIM1#,2#

main67915-33160-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-33160-C0i201810-202108

BLACK,TRIM1#,2#

main67916-33160-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

67917APLATE, REAR DOOR SCUFF, RH

main67917-33160-C0i201810-202108

BLACK,TRIM1#,2#

main67917-33160-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

67918APLATE, REAR DOOR SCUFF, LH

main67918-33160-C0i201810-202108

BLACK,TRIM1#,2#

main67918-33160-E0i201810-202108

NOBLE BROWN,TRIM5#,6#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main62566-48020×4i202108

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

47 parts on this diagram · 1 diagram in section
