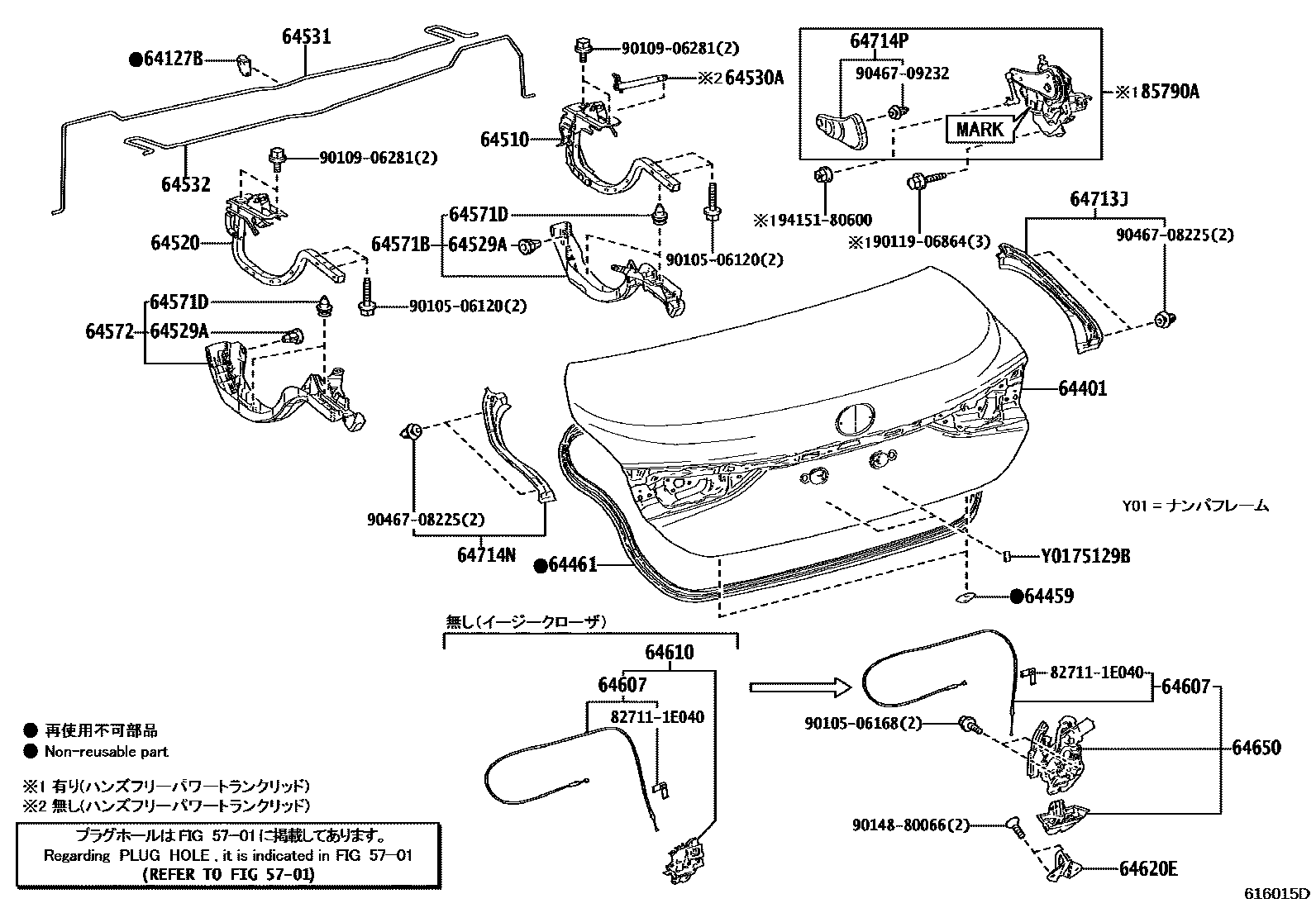

LUGGAGE COMPARTMENT DOOR & LOCK
5701HOLE PLUG
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64529ASHIM, LUGGAGE COMPARTMENT DOOR HINGE
64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64650CLOSER ASSY, LUGGAGE DOOR
64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH
64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH
64714PCOVER, DECK SIDE TRIM, RH
75129BCUSHION, REAR LICENCE PLATE
85790AMOTOR ASSY, LUGGAGE CLOSER
827111E040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E040
9010506120
main90105-06120
9010506168
main90105-06168
9010906281
main90109-06281
9011906864
main90119-06864
9014880066
main90148-80066
9046708225
main90467-08225
9046709232
main90467-09232
9415180600
main94151-80600
32 parts on this diagram · 1 diagram in section
