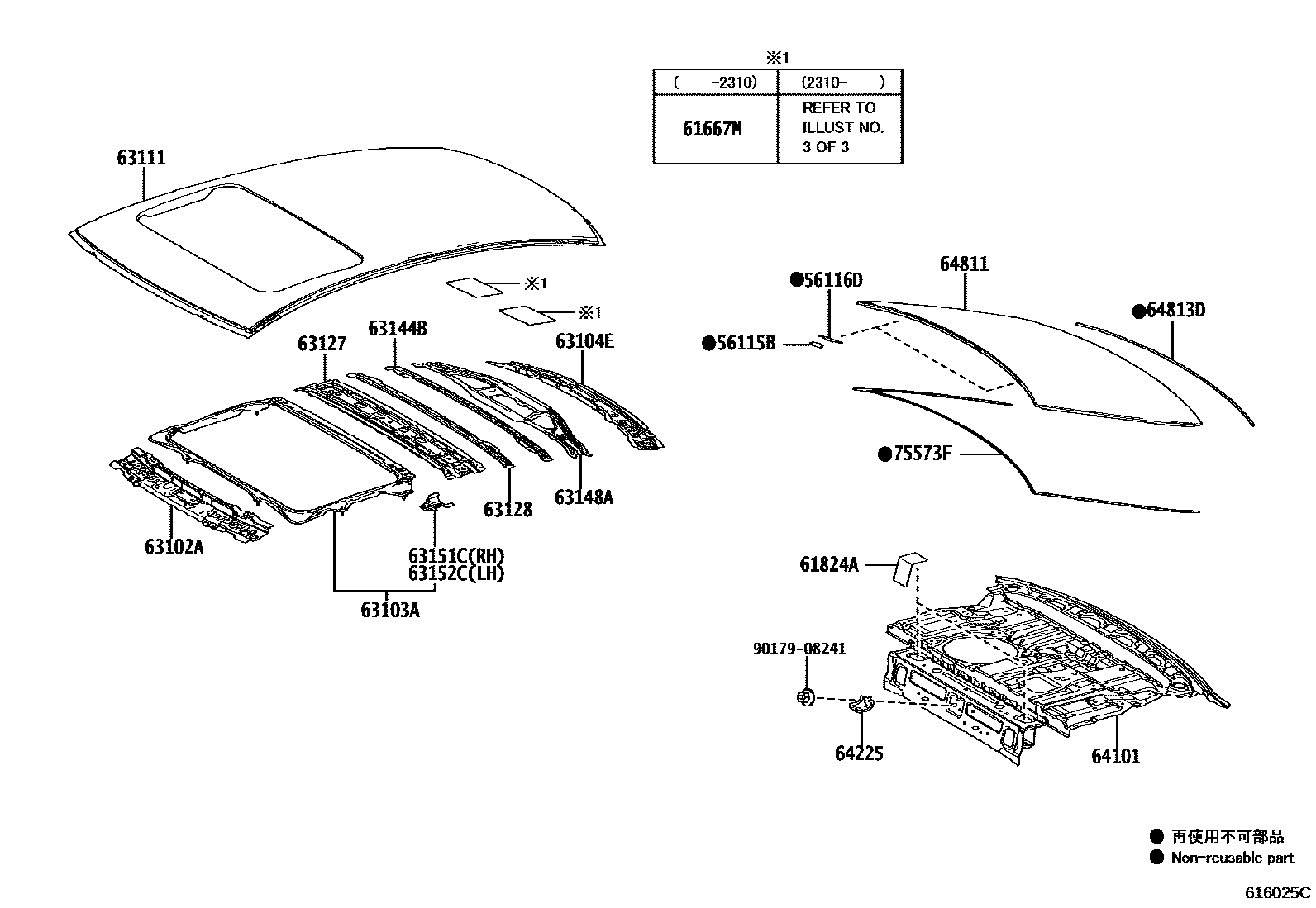

ROOF PANEL & BACK WINDOW GLASS

0001 1������� 0002 1������ 0003 1���������������

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iAXZH1#201810-202108

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iAXZH1#201810-202108

61667MSEAL, ROOF PANEL

main67139-76020×2iAXZH11202008-202108

61824APLATE, NOISE CONTROL, NO.1

main61824-33040×2iAXZH1#201810-202108

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-33911iAXZH1#201810-202108

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-33120iAXZH1#201810-202108

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63133-33170iAXZH1#201810-202108

63111PANEL, ROOF

main63111-33450iAXZH1#201810-202108

63127REINFORCEMENT, ROOF PANEL, NO.5

main63107-33030iAXZH1#201810-202108

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-33040iAXZH1#201810-202108

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-33180iAXZH1#201810-202108

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-33080iAXZH1#201810-202108

63151CFRAME, ROOF OPENING SIDE, RH

main63151-33020iAXZH1#201810-202108

63152CFRAME, ROOF OPENING SIDE, LH

main63152-33020iAXZH1#201810-202108

64101PANEL SUB-ASSY, UPPER BACK

main64101-33370iAXZH1#201810-202108

64225HANGER, REAR SEAT CUSHION SUPPORT

main64225-33050iAXZH1#201810-202108

64811GLASS, BACK WINDOW

main64811-33918iAXZH1#201810-202108

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iAXZH1#201810-202108

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-33090iAXZH1#201810-202108

9017908241

main90179-08241

20 parts on this diagram · 3 diagrams in section
