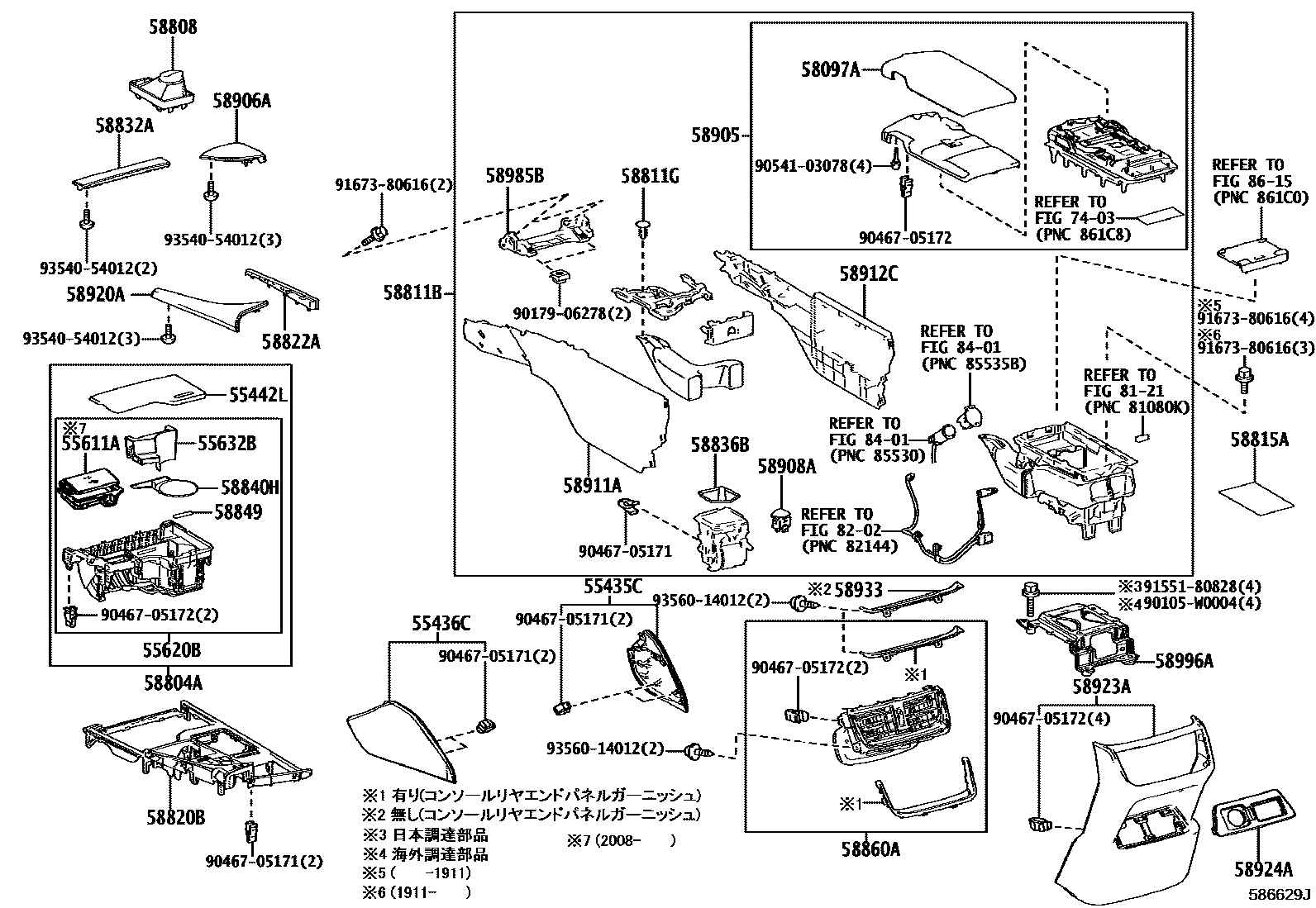

CONSOLE BOX & BRACKET
55435CPANEL, INSTRUMENT PANEL FINISH, END RH
BLACK/RED,TRIM25
BLACK/LT.GRAY,TRIM1#,21,22,23,24
NOBLE BROWN/BORDEAU,TRIM5#,6#
BLACK/MELLOW WHITE,TRIM6#
BLACK/MAUVE,TRIM7#
BLACK/SHELL,TRIM0#
BLACK/RED,TRIM3#
BLACK/RED,TRIM25
BLACK/LT.GRAY,TRIM1#,21,22,23,24
BLACK/RED,TRIM25
BLACK/LT.GRAY,TRIM21,22,23,24,26
BLACK/HAZEL,TRIM4#
NOBLE BROWN/BORDEAU,TRIM5#,6#
55436CPANEL, INSTRUMENT PANEL FINISH, END LH
BLACK/RED,TRIM25
BLACK/LT.GRAY,TRIM1#,21,22,23,24
NOBLE BROWN/BORDEAU,TRIM5#,6#
BLACK/MELLOW WHITE,TRIM6#
BLACK/MAUVE,TRIM7#
BLACK/SHELL,TRIM0#
BLACK/RED,TRIM3#
BLACK/RED,TRIM25
BLACK/LT.GRAY,TRIM1#,21,22,23,24
BLACK/RED,TRIM25
BLACK/LT.GRAY,TRIM21,22,23,24,26
BLACK/HAZEL,TRIM4#
NOBLE BROWN/BORDEAU,TRIM5#,6#
55442LDOOR, INSTRUMENT PANEL
55611ATRAY, INSTRUMENT PANEL UNDER
55620BHOLDER, INSTRUMENT PANEL CUP
55632BSUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2
58097ACOVER SUB-ASSY, CONSOLE COMPARTMENT DOOR, INNER
RICH CREAM,TRIM6#
RICH CREAM,TRIM61,63
WHITE,TRIM26
FROMAGE,TRIM0#
CHATEAU,TRIM11,12,13
CHATEAU,TRIM11,13
BLACK,TRIM21,22,23
BLACK,TRIM21,23,24
RED,TRIM25
CRIMSON,TRIM3#
HAZEL,TRIM4#
MAUVE,TRIM7#
HAZEL,TRIM41,42,43
MAUVE,TRIM71,72,73
TOPAZ BROWN,TRIM51,52,53
TOPAZ,TRIM51,53
58804APANEL SUB-ASSY, CONSOLE, UPPER
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK/LT.GRAY,TRIM1#,20,21,23,24,5#,6#
BLACK/RED,TRIM25
BLACK,TRIM0#,21,22,23,3#,4#,6#,7#
58811BBOX, CONSOLE
58811GCLIP(CONSOL BOX)
BLACK
58815ACARPET, CONSOLE BOX
58820BPANEL ASSY, CONSOLE, UPPER
58832AGARNISH, CONSOLE UPPER PANEL, REAR
58836BPAD, CONSOLE BOX SILENCER, NO.1
58840HPAD, CONSOLE BOX SILENCER, NO.1
58849COVER, CONSOLE BOX HOLE, NO.2
58860AREGISTER ASSY, CONSOLE BOX
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
WHITE/BLACK,TRIM26
BLACK/FROMAGE,TRIM0#
BLACK/BLACK,TRIM21,22,23,24
RED/BLACK,TRIM25
BLACK/CRIMSON,TRIM3#
HAZEL/BLACK,TRIM4#
MAUVE/BLACK,TRIM7#
58906APAD SUB-ASSY, CONSOLE COMPARTMENT DOOR
BLACK,TRIM1#,2#,5#,6#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,3#,4#,6#,7#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,3#,4#,6#,7#
58920AARMREST ASSY, REAR CONSOLE
RICH CREAM,TRIM6#
WHITE,TRIM26
CHATEAU,TRIM1#
BLACK,TRIM21,23,24
RED,TRIM25
HAZEL,TRIM4#
MAUVE,TRIM7#
TOPAZ,TRIM5#
FROMAGE,TRIM0#
WHITE,TRIM26
BLACK,TRIM21,22,23,24
RED,TRIM25
CRIMSON,TRIM3#
HAZEL,TRIM4#
MAUVE,TRIM7#
58923APANEL, CONSOLE REAR END
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
58924APANEL, CONSOLE REAR END, NO.2
BLACK,TRIM0#,2#,4#,6#,7#
58933GARNISH, CONSOLE REAR END PANEL
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
58985BRETAINER, CONSOLE BOX, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7403CAUTION PLATE (EXTERIOR & INTERIOR)
8121INTERIOR LAMP
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8615TELEPHONE & MAYDAY
90105W0004
main90105-W0004
9017906278
main90179-06278
9046705171
main90467-05171
9046705172
main90467-05172
9054103078
main90541-03078
9155180828
main91551-80828
9167380616
main91673-80616
9354054012
main93540-54012
9356014012
main93560-14012
44 parts on this diagram · 3 diagrams in section
