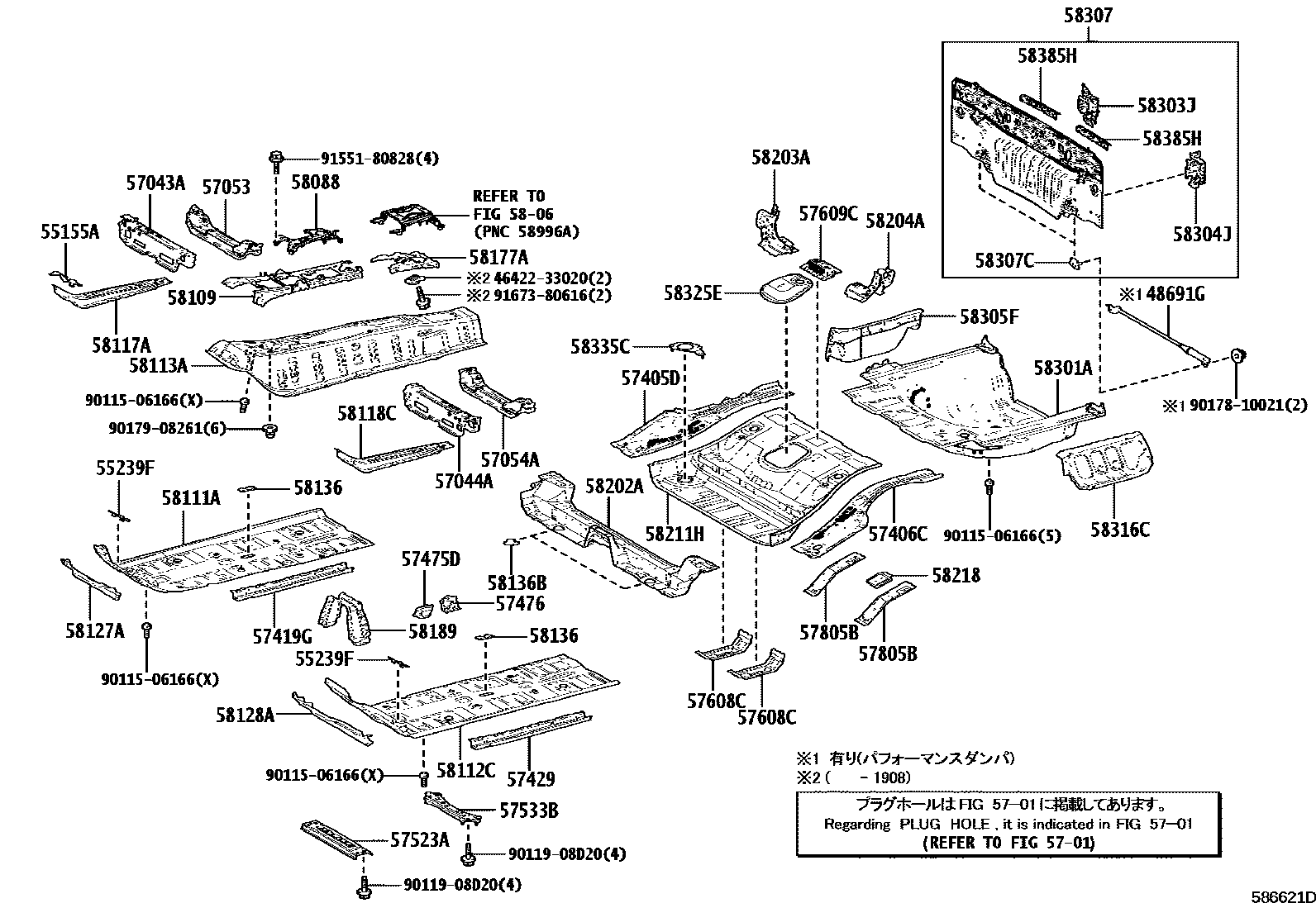

FLOOR PAN & LOWER BACK PANEL
48691GDAMPER, SUSPENSION TOWER
55155ABRACKET, ACCELERATOR PEDAL
55239FPLATE, DASH PANEL INSULATOR, NO.3
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH
57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH
57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH
57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57523ABRACE, CENTER FLOOR CROSSMEMBER
57533BBRACE, FRONT FLOOR, CENTER
57608CBRACKET SUB-ASSY, FUEL TANK MOUNTING
57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
5806
58088BRACKET SUB-ASSY, FLOOR SHIFT LINK
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58136COVER, FRONT FLOOR HOLE
58136BCOVER, CENTER FLOOR HOLE
58177AEXTENSION, FRONT FLOOR PANEL, RH
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58218PLATE, SEAT FLOOR PANEL
58301APANEL SUB-ASSY, REAR FLOOR
58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58307CRETAINER, LOWER BACK TRIM
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58335CPLATE, FLOOR SIDE, FRONT RH
58385HBRACKET, REAR BUMPER COVER, NO.1
4642233020CAP, PARKING BRAKE CABLE, CASING
main46422-33020
9011506166
main90115-06166
9011908D20
main90119-08D20
9017810021
main90178-10021
9017908261
main90179-08261
9155180828
main91551-80828
9167380616
main91673-80616
55 parts on this diagram · 2 diagrams in section
