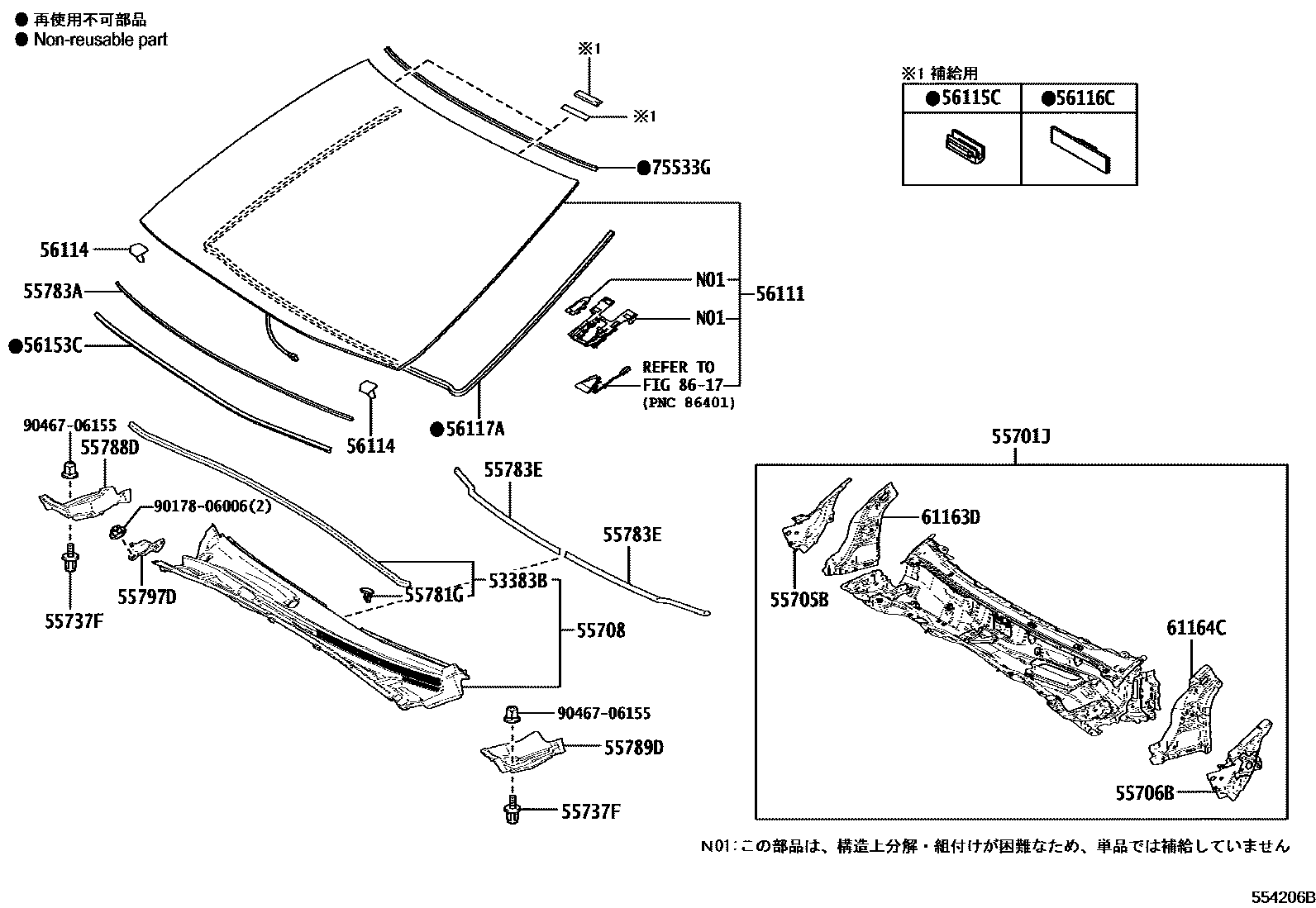

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-33190supersedes 53383-33180iAXZH1#201810-202108

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-33330iAXZH11202108

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-33050iAXZH1#201810-202108

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-33050iAXZH1#201810-202108

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-33340supersedes 55708-33330iAXZH11202108-202202

55737FSTOPPER, COWL BODY MOUNTING BOLT

main55737-33070×2iAXZH1#201810-202108

55781GCLIP, COWL TOP VENTILATOR LOUVER

main67867-12150×4iAXZH11202108

55783APAD, COWL TOP SILENCER

main55783-33130iAXZH11202108

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-33120×2iAXZH11202108

55788DINSULATOR, COWL TOP PANEL, NO.2

main55789-33050iAXZH1#201810-202108

55789DINSULATOR, COWL TOP PANEL, NO.3

main55789-33060iAXZH1#201810-202108

55797DRETAINER, FRONT PANEL WIPER MOTOR BRACKET

main55797-33030iAXZH1#201810-202108

56111GLASS, WINDSHIELD

main56101-3Y926supersedes 56101-3Y948iAXZH10201810-201905

main56101-3Y947supersedes 56101-3Y954iAXZH11202108

main56101-3Y948supersedes 56101-3Y954iAXZH11202108

main56101-3Y953supersedes 56101-3Y954iAXZH11202008-202108

56114RETAINER, WINDSHIELD GLASS

main56114-48010×2iAXZH10201810-201905

main56114-48020×2iAXZH1#201906-202108

56115CSTOPPER, WINDSHIELD GLASS

main56115-30120iAXZH11202108

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAXZH11202108

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iAXZH11202108

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-33030iAXZH1#201810-202108

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-33040iAXZH1#201810-202108

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-33040iAXZH1#201810-202108

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-33120iAXZH1#201810-202108

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

9017806006

main90178-06006

9046706155

main90467-06155

24 parts on this diagram · 1 diagram in section
