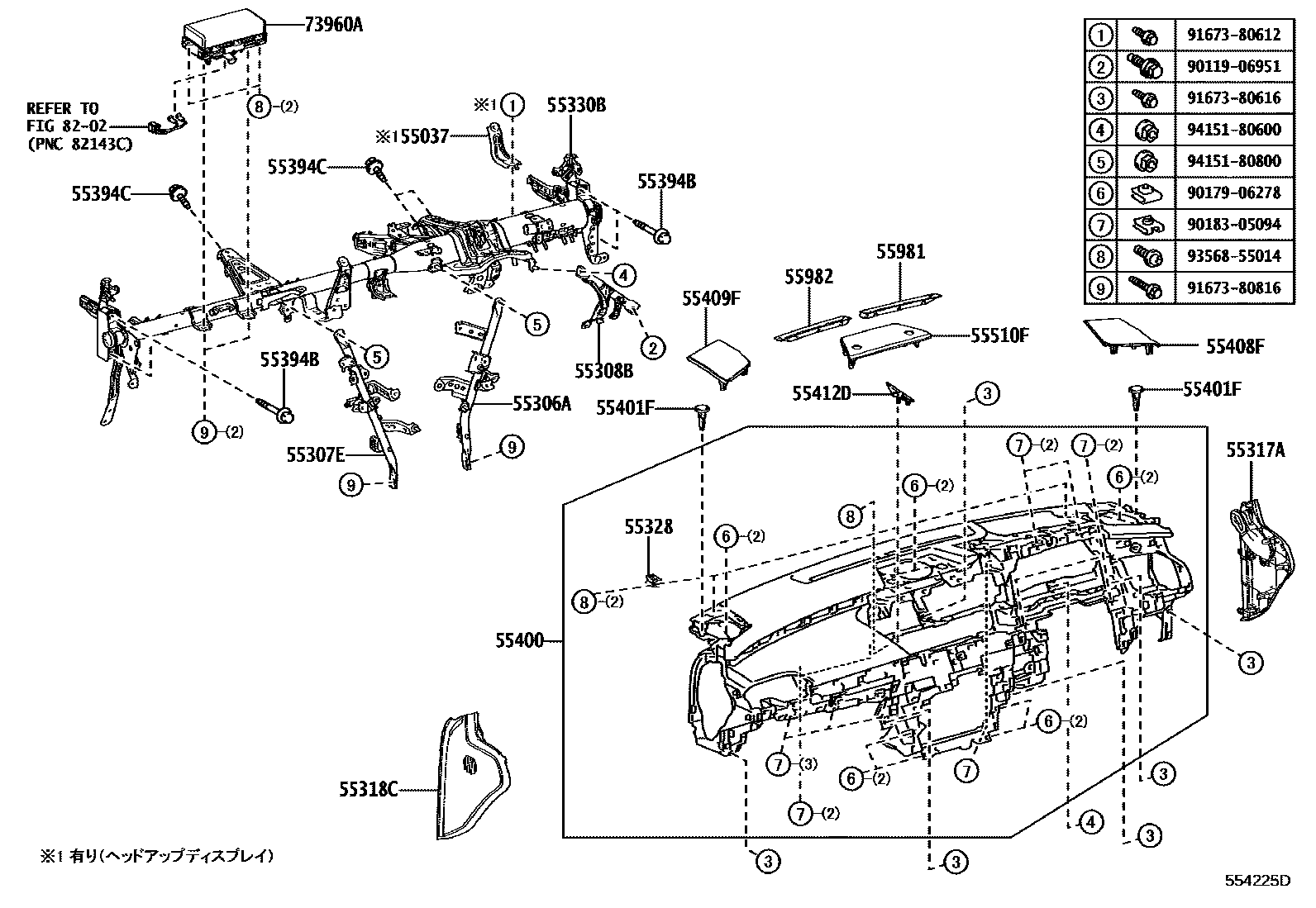

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1��������� 0005 1����� 0006 1����� 0007 1���������� 0008 1����������

55037BRACKET SUB-ASSY, INSTRUMENT PANEL METER

main5538J-33010iAXZH1#201810-202108

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-33190iAXZH1#201810-202108

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-33220iAXZH11202108

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-33250iAXZH11202108

55317APANEL, INSTRUMENT SIDE, RH

main55317-33240-C0iAXZH1#201810-202108

BLACK,TRIM1#,2#

main55317-33240-E0iAXZH1#201810-202108

NOBLE BROWN,TRIM5#,6#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-33210-C0iAXZH1#201810-202108

BLACK,TRIM1#,2#

main55318-33210-E0iAXZH1#201810-202108

NOBLE BROWN,TRIM5#,6#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iAXZH11202204

main55328-60090×2iAXZH11202108-202204

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-33460iAXZH1#201810-202108

main55330-33500iAXZH11202108

55394BBOLT, INSTRUMENT PANEL

main90105-08473×4iAXZH1#201810-202108

55394CBOLT, INSTRUMENT PANEL

main90119-08D16×3iAXZH1#201810-202108

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-33040-C4iAXZH1#201810-202108

SOFT BLACK/LT.GRAY,TRIM1#,21,23,24

main55400-33080-C2iAXZH11202108

SOFT BLACK/LT.GRAY,TRIM21,23,24,26

main55400-33030-C3supersedes 55400-33040-C3iAXZH1#201810-202108

main55400-33030-C4iAXZH1#201810-202108

main55400-33030-E0supersedes 55400-33040-E0iAXZH1#201810-202108

main55400-33030-E2supersedes 55400-33040-E2iAXZH1#201810-202108

main55400-33070-C1supersedes 55400-33080-C1iAXZH11202108

main55400-33070-C2iAXZH11202108

main55400-33070-C5supersedes 55400-33080-C5iAXZH11202108

main55400-33070-C6supersedes 55400-33080-C6iAXZH11202108-202208

main55400-33070-C7supersedes 55400-33080-C7iAXZH11202108

main55400-33070-C8supersedes 55400-33080-C8iAXZH11202208

main55400-33070-C9iAXZH11202208

55401FCLIP(FOR SAFETY PAD)

main52161-16010×2iAXZH11202108

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-33140-C0iAXZH11202108

main55408-33150-C0iAXZH11202108-202208

main55408-33150-E0supersedes 55408-33140-E0iAXZH1#201810-202108

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-33160-C0iAXZH11202108

main55409-33170-C0supersedes 55409-33160-C0iAXZH1#201810-202108

main55409-33170-E0supersedes 55409-33160-E0iAXZH1#201810-202108

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-33250iAXZH1#201810-202108

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-33160-C0iAXZH11202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main55510-33130-C0supersedes 55510-33120-C0iAXZH1#201810-202108

main55510-33130-E0supersedes 55510-33120-E0iAXZH1#201810-202108

main55510-33170-C0iAXZH11202208

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33190iAXZH1#201810-202108

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-33080iAXZH1#201810-202108

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-33240iAXZH1#201810-202108

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906951

main90119-06951

9017906278

main90179-06278

9018305094

main90183-05094

9167380612

main91673-80612

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

29 parts on this diagram · 8 diagrams in section
