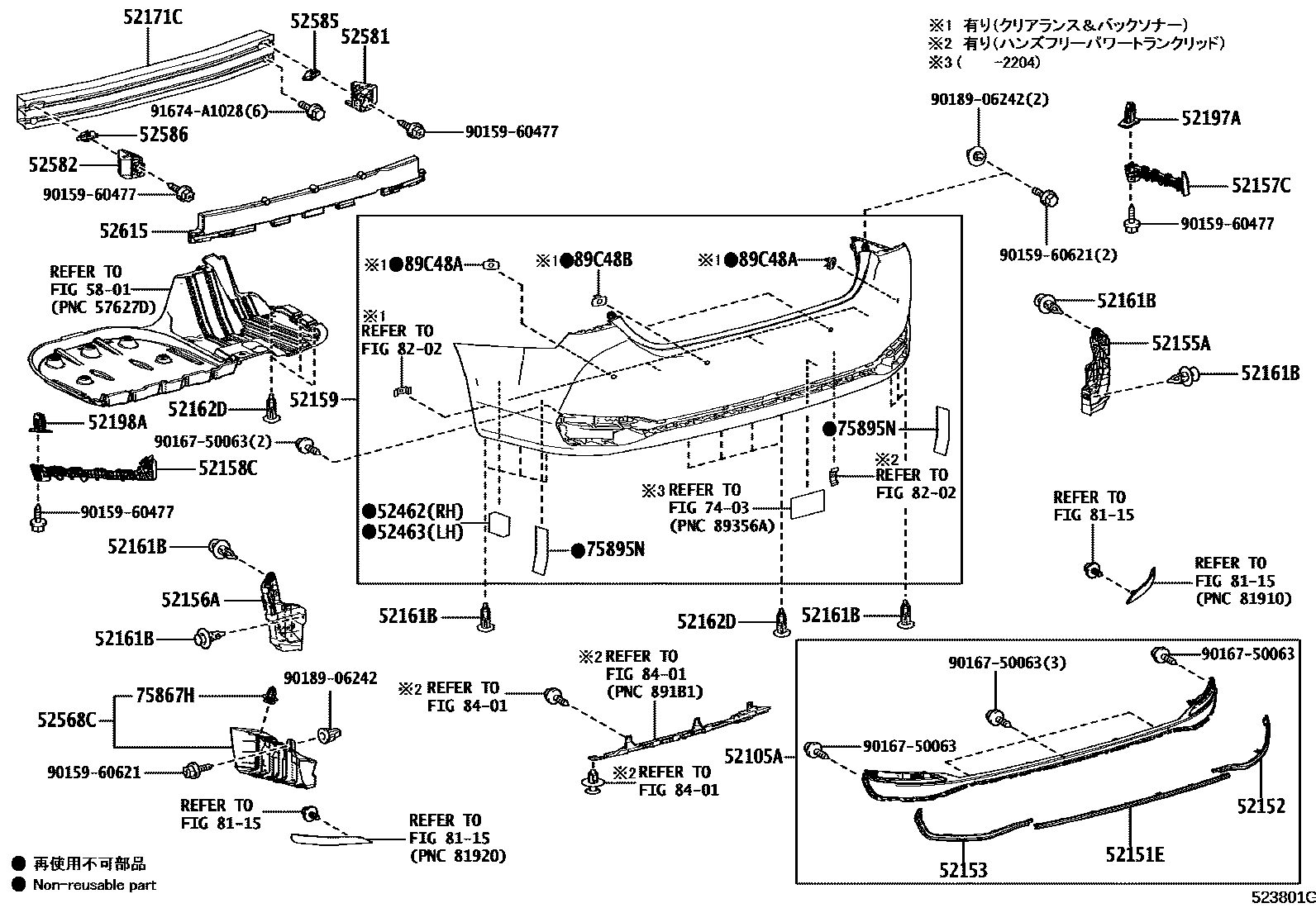

REAR BUMPER & BUMPER STAY
52105ABUMPER SUB-ASSY, REAR CENTER
52151EBAR, REAR BUMPER
52152BAR, REAR BUMPER, RH
52153BAR, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
GRAPHITE BLACK GF.,223 ,8X5
GRAPHITE BLACK GF.,223 ,8X5
52161BPIECE, REAR BUMPER
52162DPIECE, REAR BUMPER
52171CREINFORCEMENT, REAR BUMPER
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
52585INSERT, REAR BUMPER PROTECTOR, RH
52586INSERT, REAR BUMPER PROTECTOR, LH
52615ABSORBER, REAR BUMPER ENERGY
5801FLOOR PAN & LOWER BACK PANEL
7403CAUTION PLATE (EXTERIOR & INTERIOR)
75867HCLIP, ROCKER PANEL MOULDING
75895NTAPE, MOULDING, NO.1
8115REFLEX REFLECTOR
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9015960477
main90159-60477
9015960621
main90159-60621
9016750063
main90167-50063
9018906242
main90189-06242
91674A1028
main91674-A1028
36 parts on this diagram · 1 diagram in section
